Xtreme Video Capture Cards
PCIe capture for streaming, recording and presentation

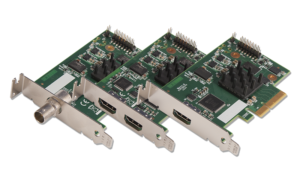

Whether you're looking for a video capture solution for streaming, recording or presentation applications, the Xtreme range has a solution to suit your needs. Supporting HDMI, DisplayPort, single or dual-link DVI, 3G-SDI, HD-SDI, RGB, Component YPbPr, Composite video and S-Video — from 4K capture down to small profile cards — the range is ideal for Medical, Broadcast, Defence and Security markets.
Not sure which capture range fits your source signal? See our buyer's guide in the Knowledge Base.
SKU: XLC-SDI

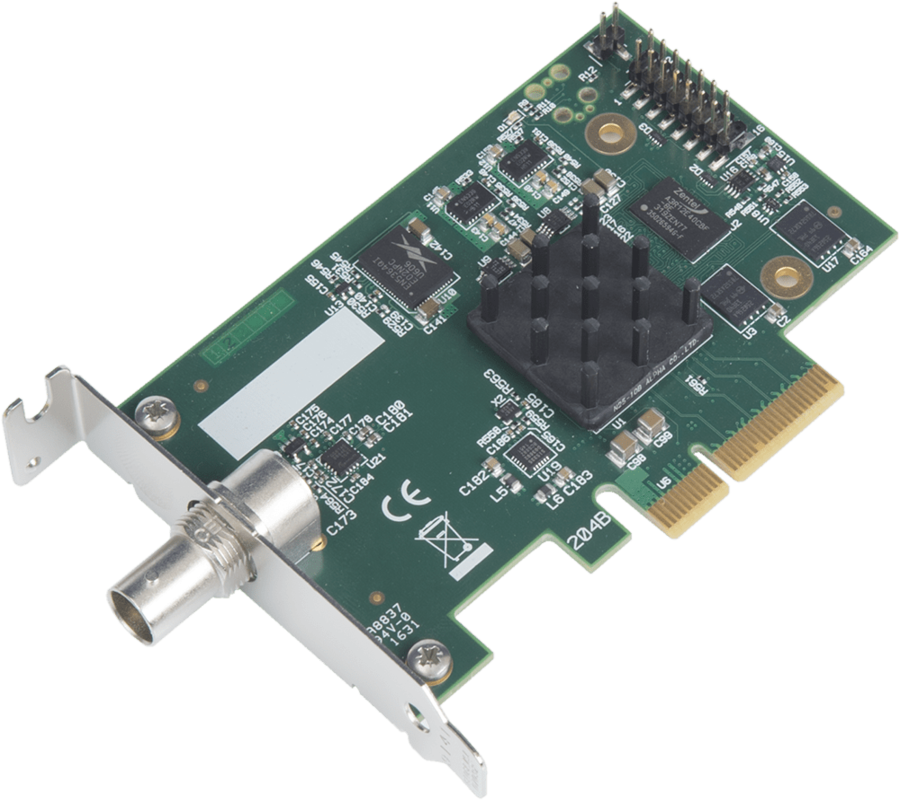

XtremeLC-SDI
- Single SDI capture channel
- SD / HD / 3G at 60fps
- 800 MB/s DMA bandwidth
- High performance up/down scaling

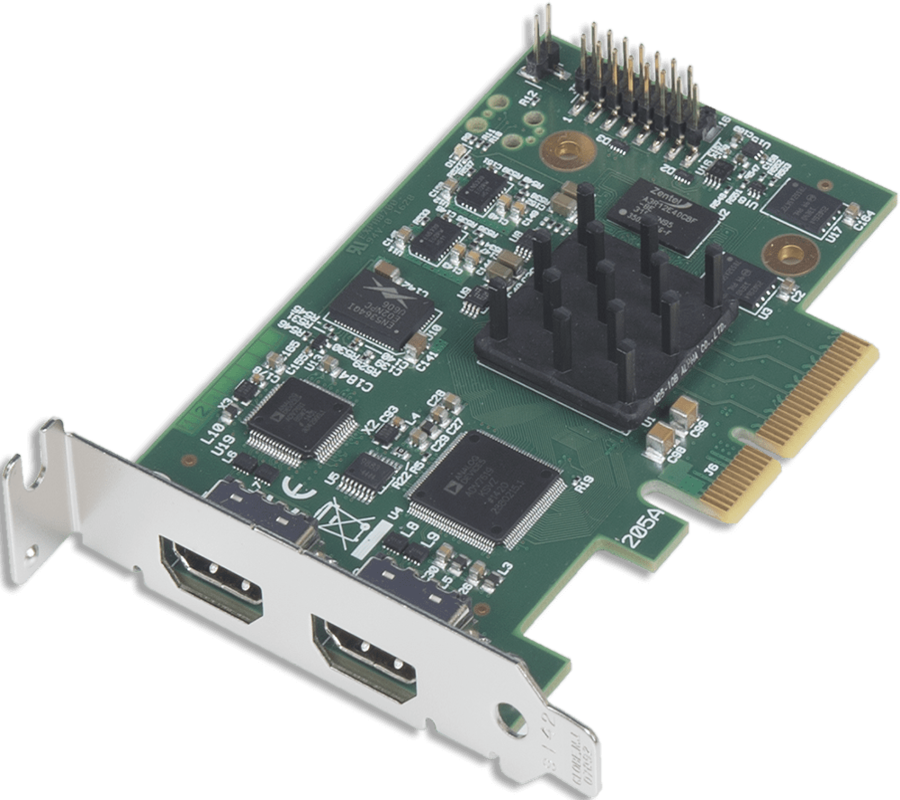

SKU: XLC-HD2
XtremeLC-HD2
- 1.6 GB/s total DMA bandwidth
- High performance up/down scaling
- Colour space conversion to any output format
- PCI Express Gen 2 x4 low profile
SKU: XLC-HD
XtremeLC-HD
- Up to 297 Mpixel/s clock — 4096×2160p @ 30fps
- 800 MB/s DMA bandwidth
- High performance up/down scaling
- Colour space conversion to output formats
SKU: XRGB-SDI2
XtremeRGB-SDI2
- Loop-through SDI BNC connections
- All 3G/HD/SD modes up to 1080p60
- Dual channel PCIe capture
- Four-lane PCIe, up to 650 MB/s

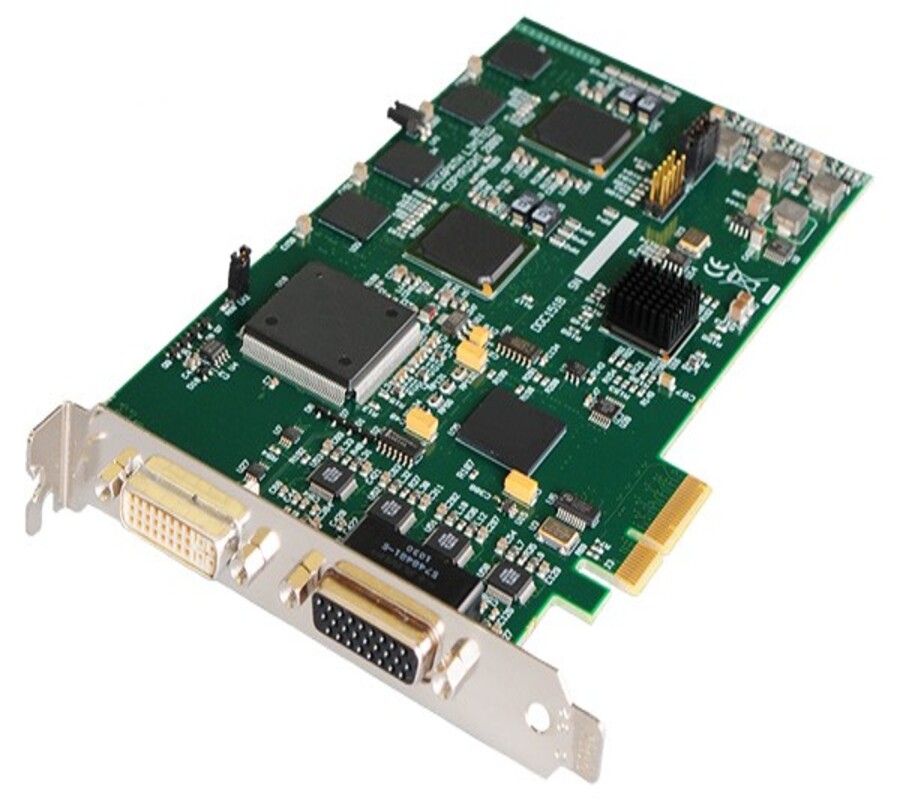

SKU: XRGB-EX4
XtremeRGB-Ex4+
- HD via supplied DVI/Component or DVI/HDMI adapter
- Four SD channels — PAL/NTSC/SECAM, composite or S-Video
- Four-lane PCIe, up to 650 MB/s
- Windows & Linux support

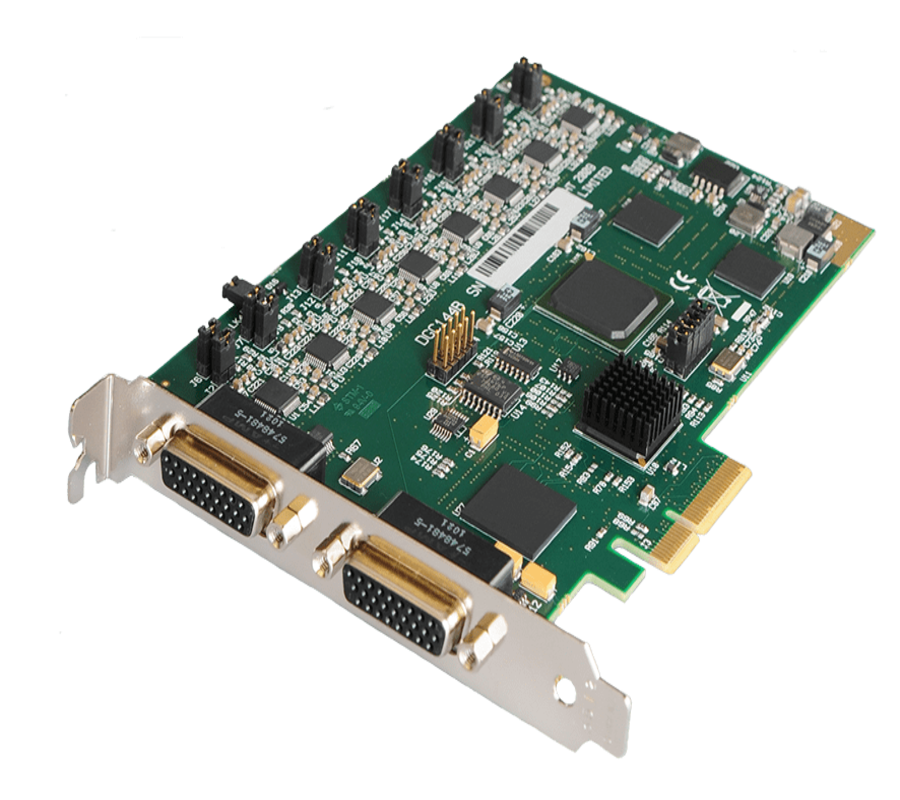

SKU: XRGB-EX8
XtremeRGB-Ex8
- High performance DMA with scatter-gather
- On-board processor for real-time mode/sync detection
- PAL, NTSC, SECAM, composite and S-Video
- Dynamic input source selection
SKU: XRGB-EX2

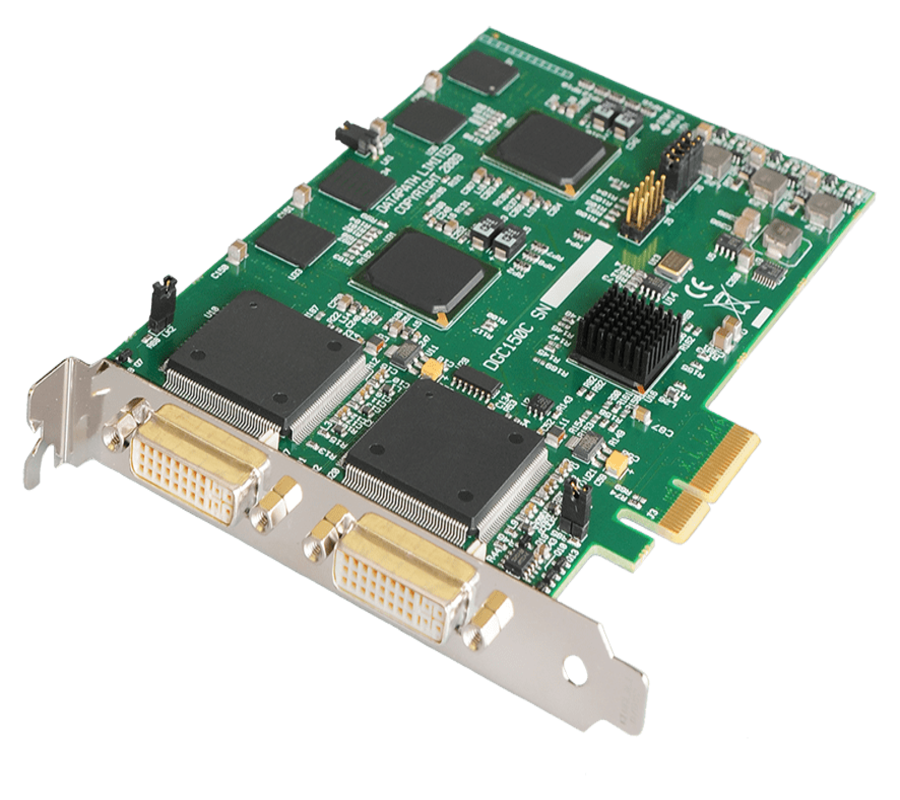

XtremeRGB-Ex2+
- High performance DMA, direct-to-graphics-memory option
- On-board processor, real-time mode/sink detection
- Dynamic input source selection, admin mode
- HD up to 1080p60; DVI up to 1920×1200
SKU: XRGB-EX1

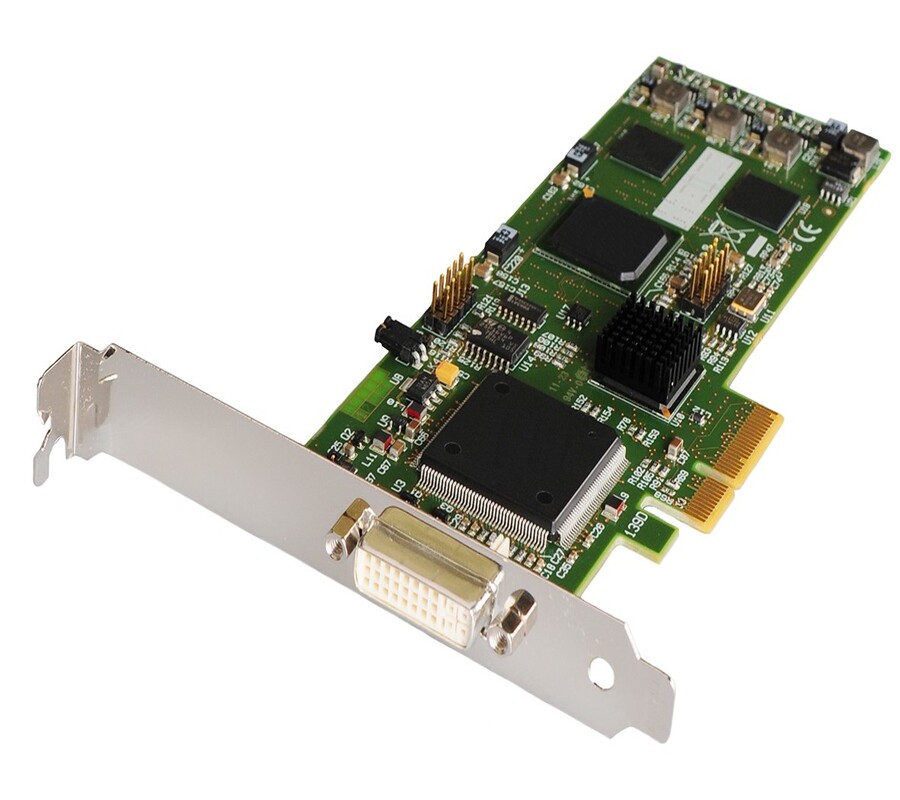

XtremeRGB-Ex1+
- Four-lane PCIe, up to 650 MB/s
- On-card processor, real-time mode/sink detection
- Up to 32 capture channels across multiple cards
- Analog RGB up to 2048×1536 x24bit
SKU: X-HD4
Xtreme-HD4
- 8-lane PCIe Gen.3 bus
- 3.2 GB/s total capture bandwidth
- Four EMS capture processors
- Frame buffer memory: 4 × 256 MB

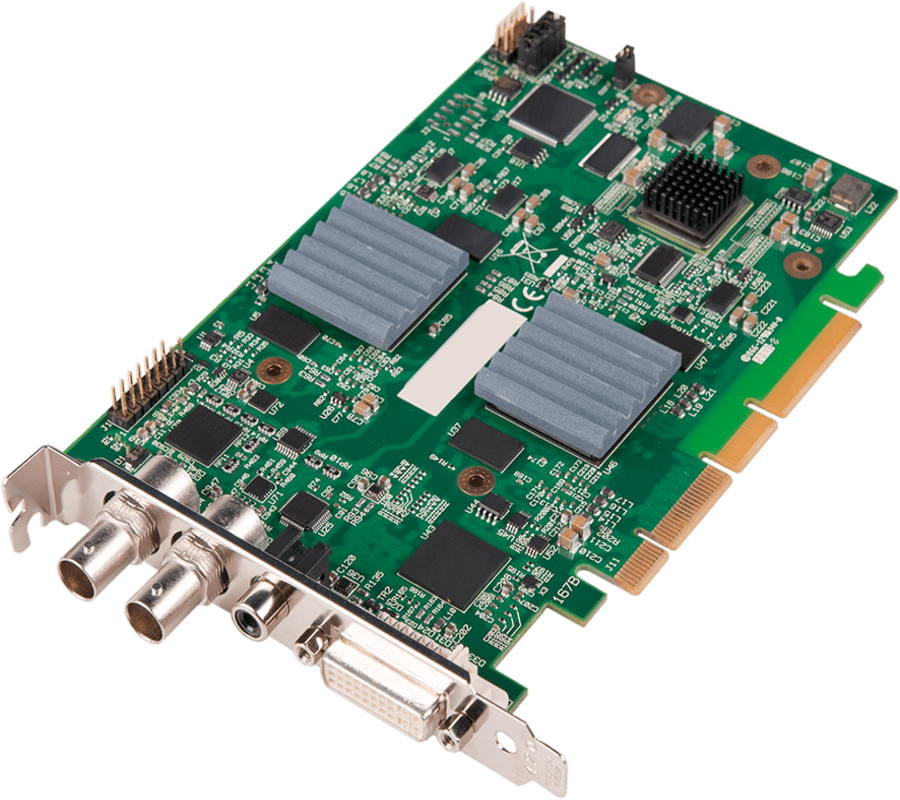

SKU: XAV-SDI
XtremeAV-SDI
- Four-lane PCIe, 1.6 GB/s total bandwidth
- Three independent capture channels
- Direct DMA to third-party graphics memory
- Full analog & digital audio support
SKU: XAV-H
XtremeAV
- One HD channel (DVI-I: HDMI/DVI/RGB/YPbPr) + one SD composite channel, captured simultaneously
- AM2 audio module and cable included — balanced/unbalanced analogue audio capture
- Half-height PCIe x4 card, 110mm x 170mm
- Up to 4096×4096 HD capture, 1080p60, with HDCP support alongside EMS graphics cards

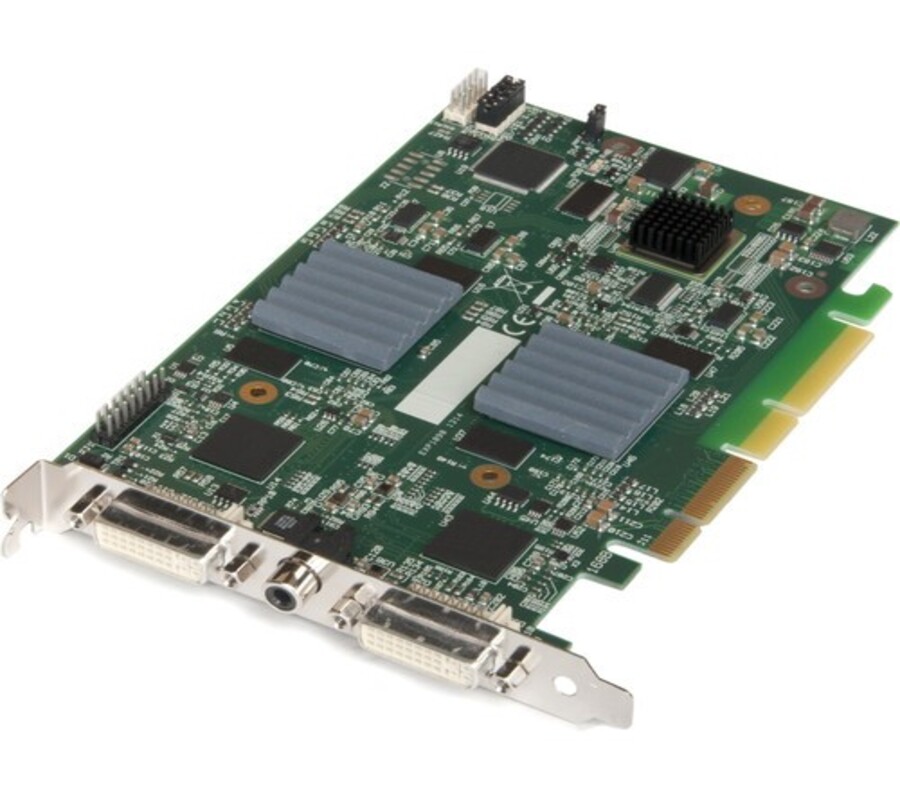

SKU: XAV-HD2
XtremeAV-HD2+
- Four-lane PCIe, 1.6 GB/s total bandwidth
- Two HD DVI channels + one composite input
- Full analogue & digital audio support
SKU: XDV-UHD2
XtremeDV-UHD2
- Two independent HDMI 2.0 channels, 4K60 with 4:4:4 chroma sampling
- Eight-lane PCIe Gen.3 interface, net 6GB/s total capture bandwidth
- 2GB frame buffer memory
- Full 10-bit processing pipeline

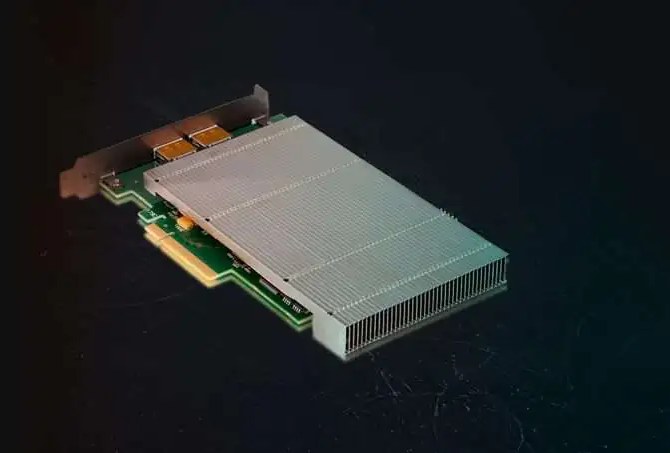

SKU: XDV-DP2
XtremeDV-DP2
- Two independent DisplayPort 1.2 capture channels
- Eight-lane PCIe Gen.3 interface, net 6GB/s total capture bandwidth
- 768MB frame buffer memory
- HDCP support with EMS graphics cards

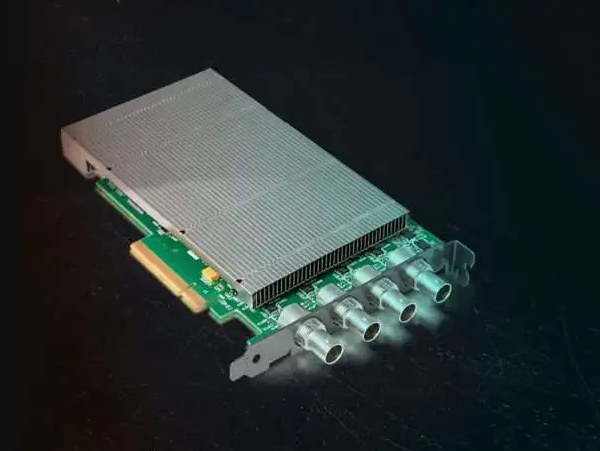

SKU: XDV-SDI4
XtremeDV-SDI4
- Four independent 3G-SDI capture channels
- Four channels of 1920×1080p @60fps capture
- Eight-lane PCIe Gen.3 interface, net 6GB/s total capture bandwidth
- 768MB frame buffer memory

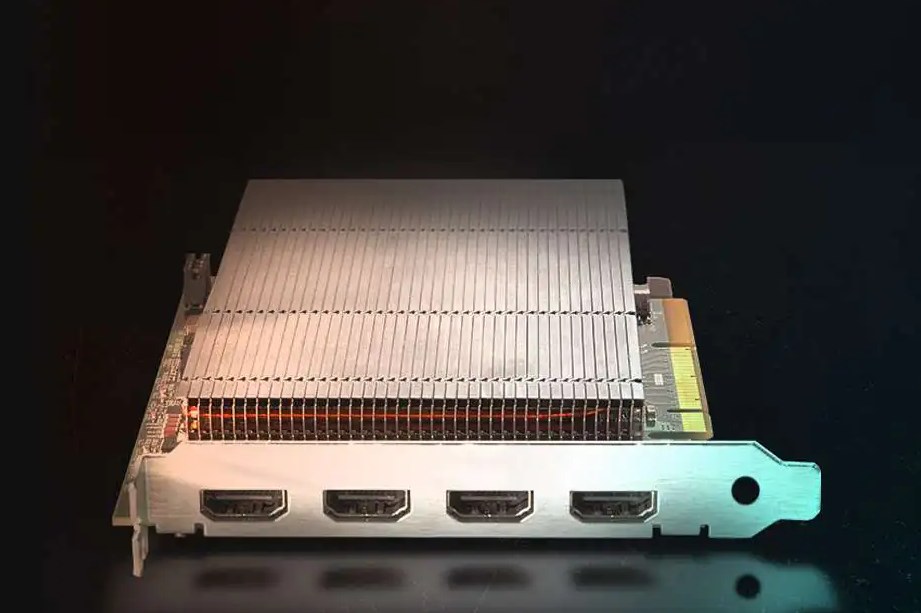

SKU: XDV-HD4
XtremeDV-HD4+
- Four independent HDMI 1.4 capture channels
- Two channels at 297MHz — 3840×2160p @60fps
- Two channels at 165MHz — 1920×1080p @60fps
- Eight-lane PCIe Gen.3 interface, net 6.4GB/s total bandwidth
SKU: XDV-S2
XtremeDV-S2
- Dual-channel SDVoE (Software-Defined Video over Ethernet) capture
- Full 4K60 decoding per channel
- Fully SDVoE-compliant for interoperability with other SDVoE hardware
- Sub-millisecond, under-100-microsecond latency
SKU: XDV-A2

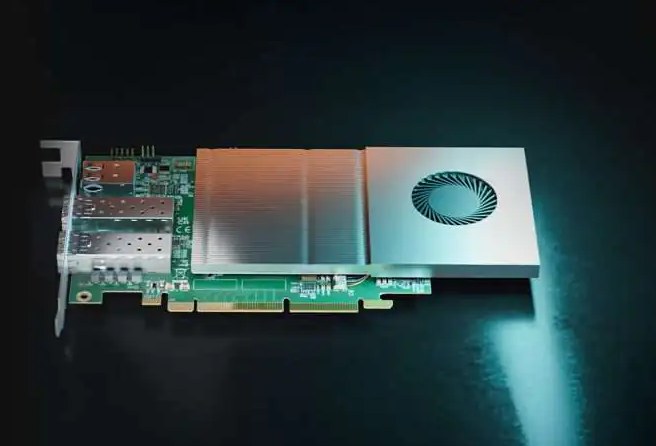

XtremeDV-A2
- Dual-channel Aligo capture card for Aetria AVoIP networks
- Receives a single 4K or up to four independent HD Aligo streams per channel — up to 8 HD streams per card
- 2x 10G SFP+ ports, 4GB frame buffer
- Up to 4096×2160 @60Hz, 8-bit 4:4:4
Built for the applications that can't afford to fail
4K60 10-bit capture with HDCP compliance across the current-generation XtremeDV range
Every card — from XtremeDV to XtremeLC — runs the same unified Windows/Linux driver, so switching ranges doesn't mean relearning an API
Hardware-based scaling, EDID management and automatic signal detection built into the card itself, not a software workaround
Freely combine capture, graphics and IP decode cards in one VSN chassis for a single integrated system
Frequently Asked Questions
What's the difference between XtremeDV, XtremeAV, XtremeRGB and XtremeLC?
XtremeDV is the current generation for 4K60 HDMI, DisplayPort and SDI capture. XtremeAV and XtremeRGB are earlier-generation HD/analogue ranges still in active use where full 4K performance isn't needed. XtremeLC is the compact, lower-cost single/dual-channel range for lecture capture and space-constrained builds.
Can I mix cards from different ranges in one system?
Yes — any Xtreme capture card can be combined with XtremeImage graphics cards and Xtreme-ActiveSQX IP decode cards in the same VSN chassis, in whatever mix the application needs.
Do I need a different driver for each card?
No — every card across the whole capture range uses the same unified Windows/Linux driver, so a system running several different Xtreme cards only needs one driver install.
What resolutions are supported?
Depends on the range. XtremeDV supports up to 4K60 4:4:4 with HDCP 2.2. XtremeAV/XtremeRGB top out at HD or reduced-chroma 4K. Check the individual product spec table before assuming "4K" means the same thing across every card.
