Mixed-Signal Capture Cards (XtremeAV / XtremeRGB)
DVI, analogue RGB / VGA, YPbPr, composite, S-Video and SDI capture
XtremeAV and XtremeRGB capture the sources the all-digital cards don't: DVI-I, analogue RGB/VGA and YPbPr, SD composite and S-Video, alongside HDMI and SDI on some models. They are the range for medical imaging suites with older modalities, control rooms, industrial and machine vision equipment, and any project that has to bring modern and legacy sources onto the same PC — from a single DVI/RGB channel (XtremeRGB-Ex1+) up to eight SD channels (XtremeRGB-Ex8) or four DVI-I channels (Xtreme-HD4) on one card.
Not sure which capture range fits your source signal? See our buyer's guide in the Knowledge Base.
SKU: XRGB-SDI2
XtremeRGB-SDI2
- Loop-through SDI BNC connections
- All 3G/HD/SD modes up to 1080p60
- Dual channel PCIe capture
- Four-lane PCIe, up to 650 MB/s
SKU: XRGB-EX4
XtremeRGB-Ex4+
- HD via supplied DVI/Component or DVI/HDMI adapter
- Four SD channels — PAL/NTSC/SECAM, composite or S-Video
- Four-lane PCIe, up to 650 MB/s
- Windows & Linux support
SKU: XRGB-EX8

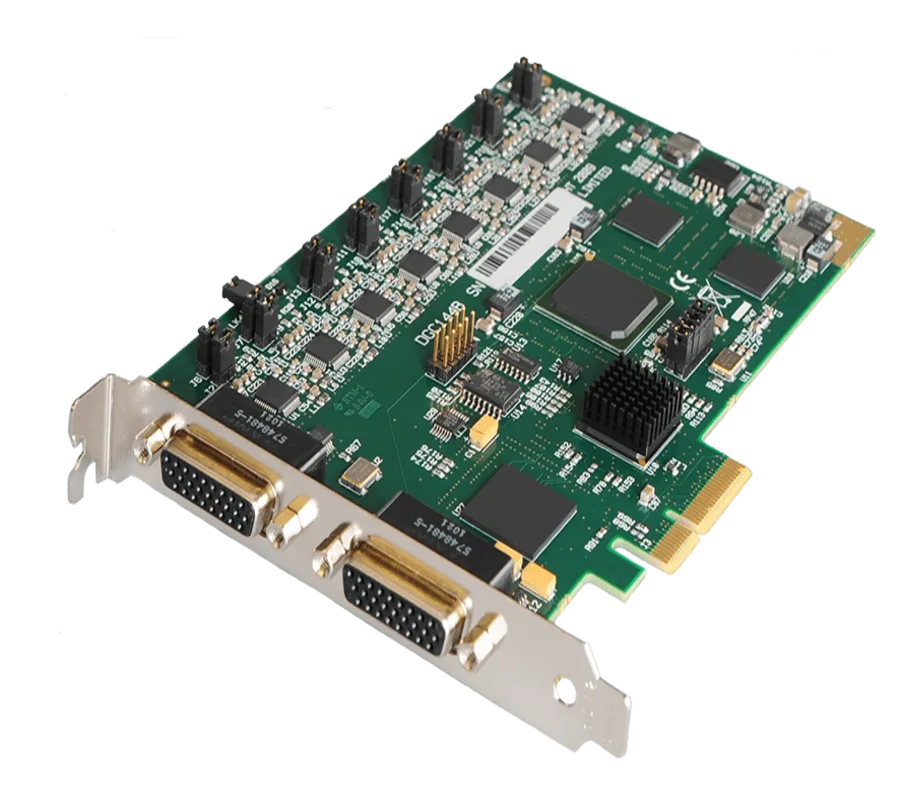

XtremeRGB-Ex8
- High performance DMA with scatter-gather
- On-board processor for real-time mode/sync detection
- PAL, NTSC, SECAM, composite and S-Video
- Dynamic input source selection
SKU: XRGB-EX2

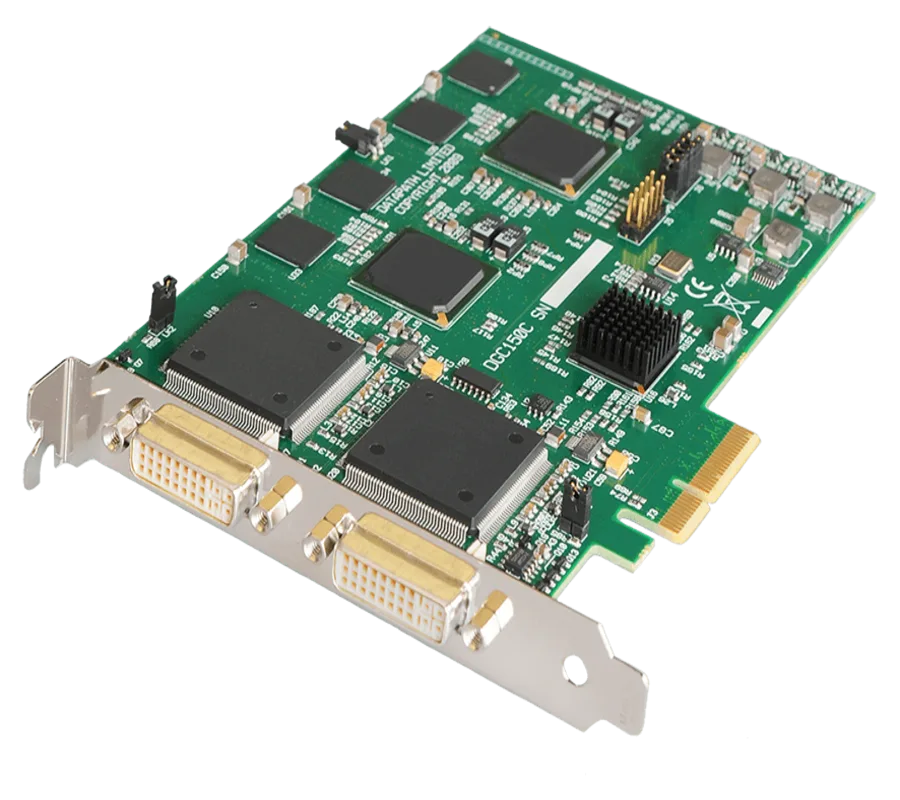

XtremeRGB-Ex2+
- High performance DMA, direct-to-graphics-memory option
- On-board processor, real-time mode/sink detection
- Dynamic input source selection, admin mode
- HD up to 1080p60; DVI up to 1920×1200
SKU: XRGB-EX1

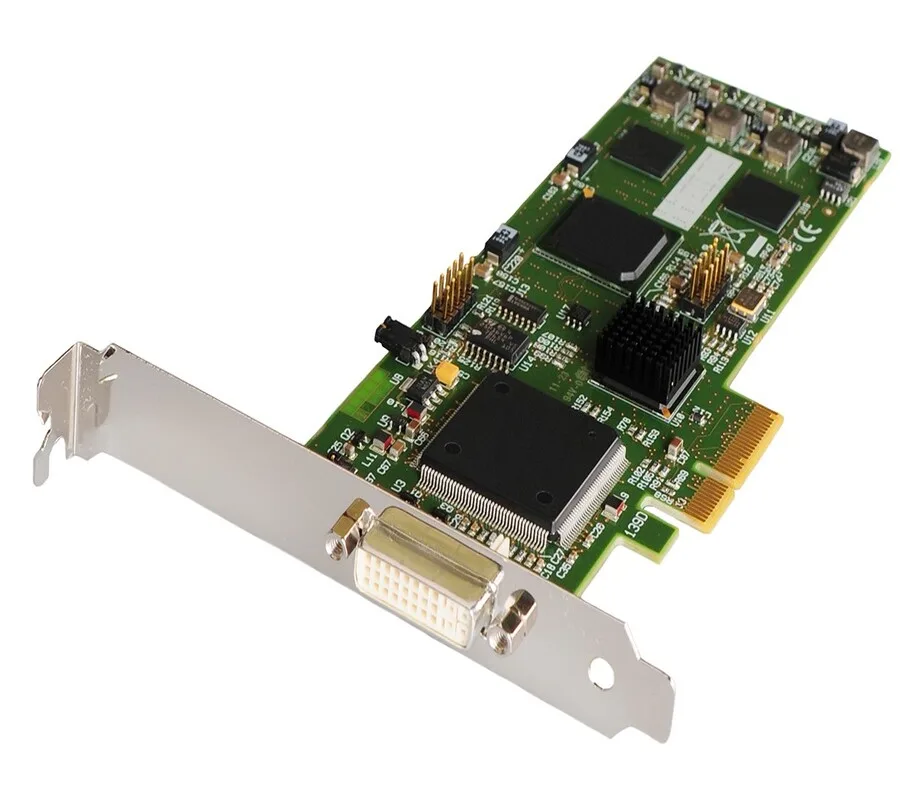

XtremeRGB-Ex1+
- Four-lane PCIe, up to 650 MB/s
- On-card processor, real-time mode/sink detection
- Up to 32 capture channels across multiple cards
- Analog RGB up to 2048×1536 x24bit
SKU: X-HD4
Xtreme-HD4
- 8-lane PCIe Gen.3 bus
- 3.2 GB/s total capture bandwidth
- Four EMS capture processors
- Frame buffer memory: 4 × 256 MB
SKU: XAV-SDI
XtremeAV-SDI
- Four-lane PCIe, 1.6 GB/s total bandwidth
- Three independent capture channels
- Direct DMA to third-party graphics memory
- Full analog & digital audio support
SKU: XAV-H
XtremeAV
- One HD channel (DVI-I: HDMI/DVI/RGB/YPbPr) + one SD composite channel, captured simultaneously
- AM2 audio module and cable included — balanced/unbalanced analogue audio capture
- Half-height PCIe x4 card, 110mm x 170mm
- Up to 4096×4096 HD capture, 1080p60, with HDCP support alongside EMS graphics cards
SKU: XAV-HD2
XtremeAV-HD2+
- Four-lane PCIe, 1.6 GB/s total bandwidth
- Two HD DVI channels + one composite input
- Full analogue & digital audio support
Built for the applications that can't afford to fail
Capture DVI, analogue RGB/VGA, YPbPr, composite and S-Video — the sources digital-only cards cannot take
From one channel up to eight on a single card, to save PCIe slots
Works in a single PC with the EMS unified Windows & Linux driver, or inside a VSN video wall controller
Standard 3-year warranty
Frequently Asked Questions
What's the difference between XtremeAV and XtremeRGB?
XtremeAV mixes HD and SD capture with audio on one card — for example DVI-I plus composite — and includes the quad DVI-I Xtreme-HD4. XtremeRGB covers DVI and analogue RGB capture (Ex1+, Ex2+), mixed SD plus DVI/RGB (Ex4+), eight-channel SD (Ex8) and dual SDI (SDI2).
Do I need a video wall controller?
No. Each card works in a standard PC with PCIe slots. They can also be fitted in a VSN chassis when the sources feed a video wall.
Which card for 4K60 HDMI, DisplayPort or 3G-SDI?
For current 4K60 digital sources, see the Digital Capture Cards (XtremeDV).
