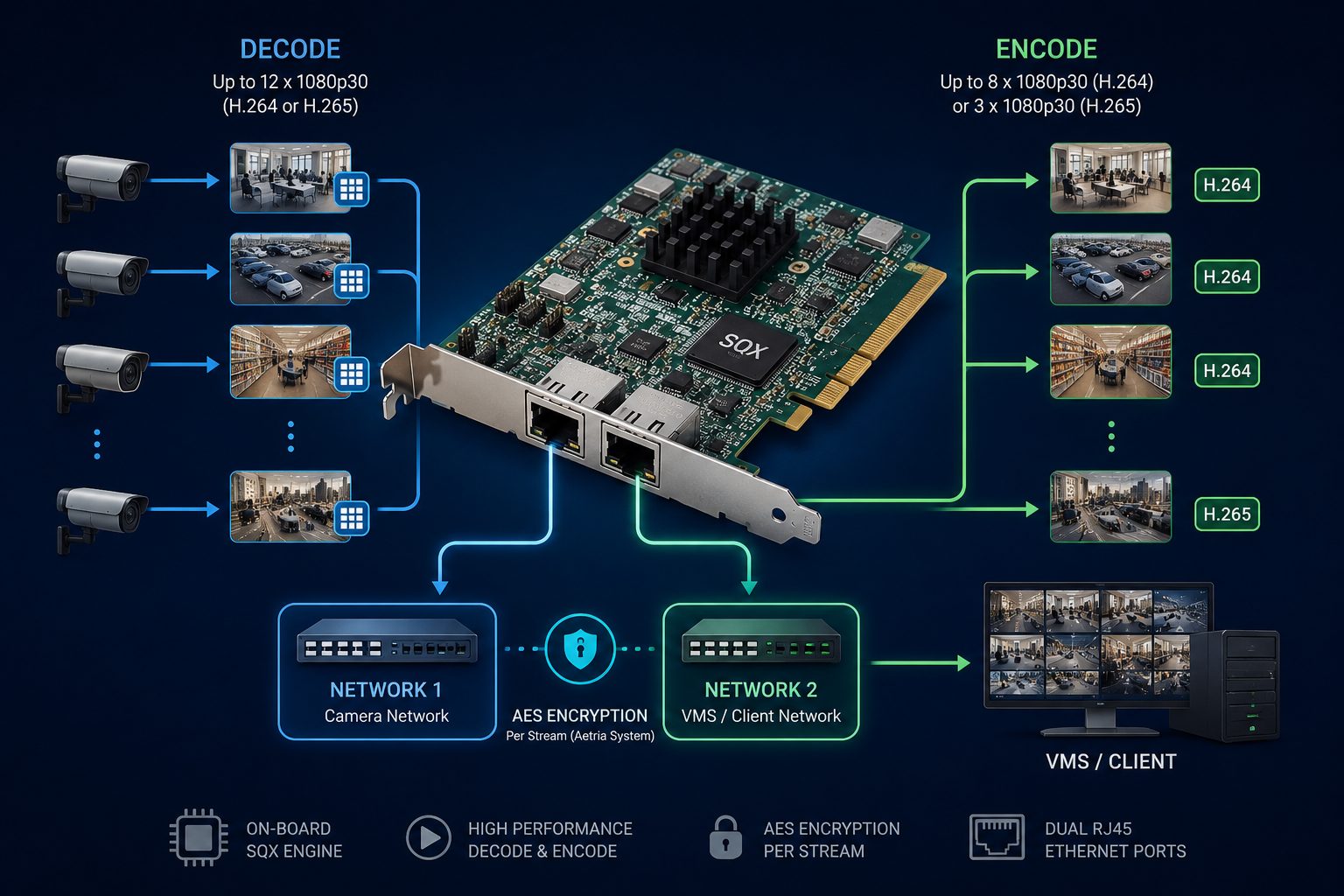

Xtreme-SQX2 — IP streaming decode and encode, up to 12x 1080p30 decode, 8x H.264 or 3x H.265 encode, AES encryption per stream
Xtreme-SQX2

Bring IP-based video sources — CCTV networks, remote desktops, streamed feeds from elsewhere on the network — onto a video wall alongside local capture, or push local sources out across the network for remote display. The Xtreme SQX range is dedicated decode/encode hardware, offloading that work entirely from the host CPU so it scales cleanly across multiple cards in one system.

Watch the range overview

Xtreme ActiveSQX IP decode and encode cards

IP cameras and network streams decoded in hardware and placed on the video wall, and with the ActiveSQX2, encoded and sent back out to the network.

Plays from YouTube when you press play. Watch on YouTube

Xtreme-ActiveSQX PCIe IP Video Decoding Card, up to 12 HD Streams SKU: ACTIVE-SQX

Xtreme-ActiveSQX

PCIe IP Video Decoding Card, up to 12 HD Streams
£2,680.80 inc VAT
  • Dual RJ45 Ethernet ports
  • On-board SQX decoding engine
  • 800 Mb/s from each Ethernet input
  • Up to three 4096×2160p @ 30fps streams
View Details →

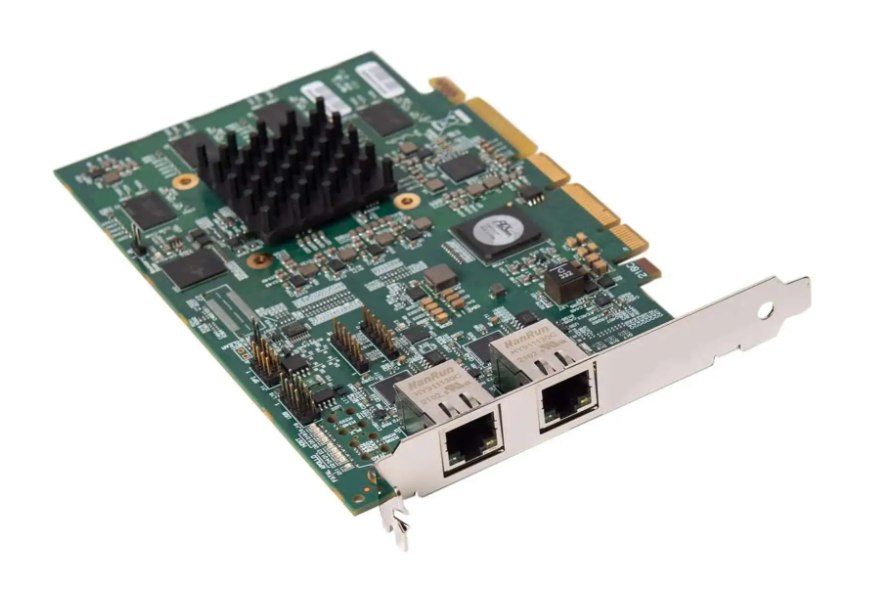

Xtreme-ActiveSQX2 PCIe IP Video Encode & Decode Card, H.264/H.265 SKU: ACTIVE-SQX2

Xtreme-ActiveSQX2

PCIe IP Video Encode & Decode Card, H.264/H.265
£3,542.40 inc VAT
  • Dedicated encode AND decode card — the original ActiveSQX is decode-only
  • Dual RJ45 Ethernet ports, connectable to two separate networks
  • Decode up to 12x 1080p30 streams (or equivalent) simultaneously
  • Encode up to 8x 1080p30 streams (or equivalent) simultaneously
View Details →

Key points

Dedicated onboard processor handles all decode/encode work — zero burden on the host CPU

Scales cleanly: add more cards to a system for more simultaneous streams, workload balances automatically across them

Works alongside the rest of the Xtreme capture and graphics range in the same VSN chassis for mixed local/IP-source walls

Supports the industry-standard codecs and streaming protocols already in use on most CCTV and AV-over-IP networks

Common Questions

Frequently Asked Questions

What's the difference between Xtreme-ActiveSQX and Xtreme-ActiveSQX2?

ActiveSQX2 is the current-generation card — more decode density (up to 12x 1080p30 vs the original's comparable figure, but with H.265/HEVC support added alongside H.264), plus dedicated encode capability the original ActiveSQX doesn't have. Choose ActiveSQX2 for any new deployment; ActiveSQX remains available for extending an existing estate already built on it.

Do I need this card if I'm only displaying local capture sources?

No — SQX cards are specifically for IP-network video sources (streamed/CCTV/remote feeds). If every source is a directly-wired local capture card, you don't need one.

Can I mix SQX cards with regular capture cards in the same system?

Yes. That's the primary use case. A VSN chassis commonly runs a mix of Xtreme capture cards for local sources and one or more SQX cards for network/IP sources, all displayed on the same wall.

How many streams can one card handle?

Depends on resolution and codec — check the individual product's Decode Density spec. As a rough guide, expect roughly 12 simultaneous 1080p30 streams or 3 simultaneous 4K30 streams per card; add more cards for more capacity.
