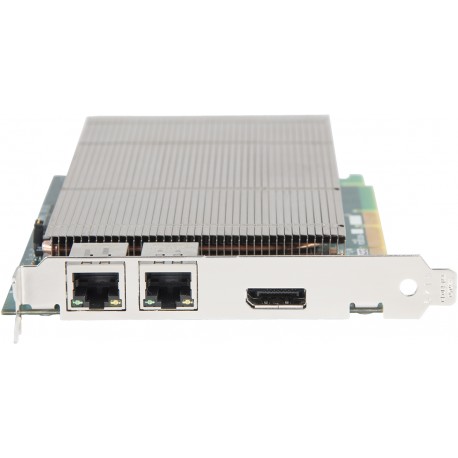

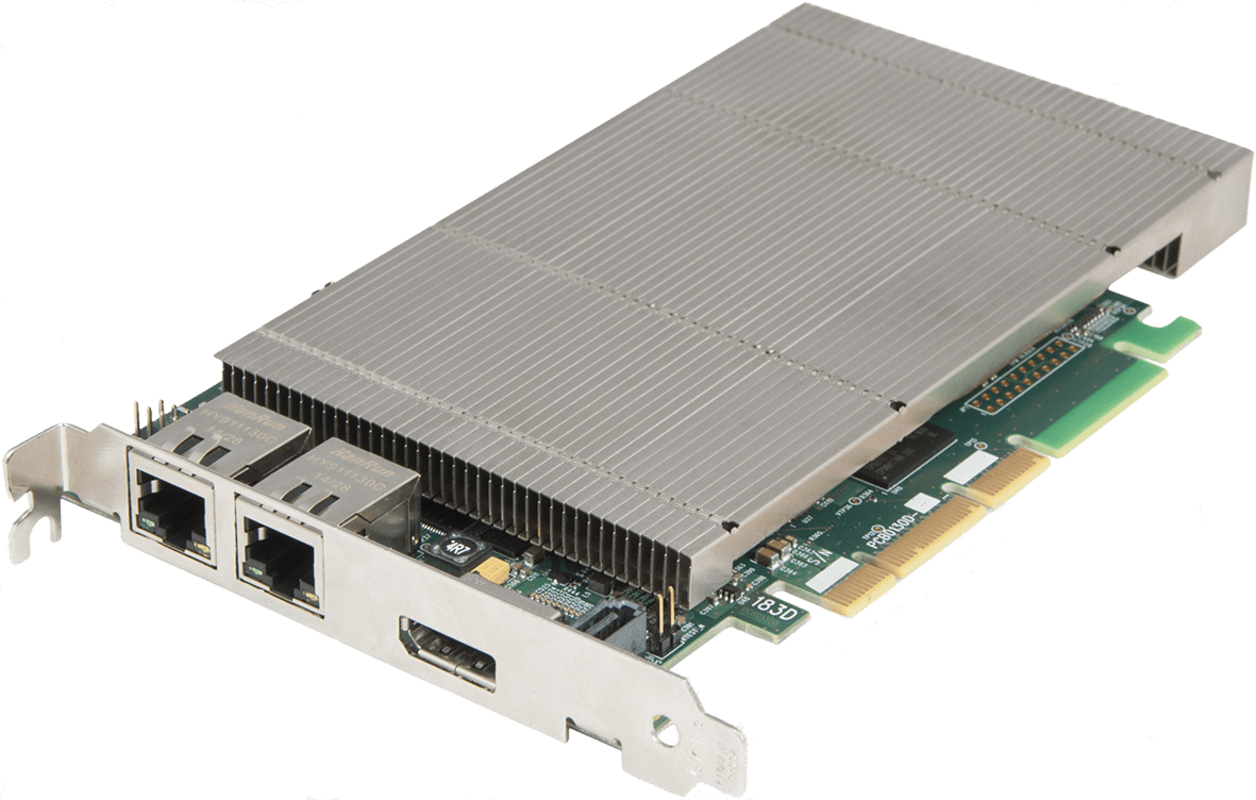

Xtreme-ActiveSQX
Dedicated IP decoding card
- ✓Dual RJ45 Ethernet ports
- ✓On-board SQX decoding engine
- ✓800 Mb/s from each Ethernet input
- ✓Up to three 4096×2160p @ 30fps streams
- ✓Six 1920×1080p @ 60fps / twelve @ 30fps
- ✓50+ D1-resolution streams @ 30fps
About This Product
Professional AV solutions require video to be received from a great many different sources and locations — the ability to receive and display video directly from online resources such as CCTV networks and remote desktop applications, combined with local inputs, has become an everyday part of fully functional video wall display. The Xtreme-ActiveSQX PCIe plug-in card is a powerful addition to systems that require a scalable, hardware-based decoding solution.
The Xtreme-ActiveSQX is a half-length PCI Express plug-in card with two Gigabit Ethernet input nodes supporting real-time decode of multiple IP streams, providing seamless integration of IP video into an EMS wall controller. Each card can capture a bandwidth equivalent to twelve 1920×1080 @30Hz streams onto any wall controller using EMS graphics cards. It uses a single PCIe slot, is passively cooled, and can easily be added to a system already running EMS technology without changing the existing configuration.
Xtreme-ActiveSQX automatically balances the total decoding workload across all ActiveSQX cards in a system, distributing thermal power consumption more efficiently, and is designed to work alongside the EMS Xtreme range of capture cards, supporting a mixture of local and remote capture feeds on the same display.
Where This Product Fits
Xtreme-ActiveSQX is the right pick when extending a system already built on it — traffic management and CCTV-integration estates often run for years, and adding a matching decode card to an existing deployment keeps behaviour and drivers consistent site-wide. For any new deployment, specify Xtreme-ActiveSQX2 instead — it adds encode capability the original doesn't have, supports H.265/HEVC alongside H.264, and is the currently-supported generation.
Why Choose the Xtreme-ActiveSQX?
- ✓Dual RJ45 Ethernet ports
- ✓On-board SQX decoding engine
- ✓800 Mb/s from each Ethernet input
- ✓Up to three 4096×2160p @ 30fps streams
- ✓Six 1920×1080p @ 60fps / twelve @ 30fps
- ✓50+ D1-resolution streams @ 30fps
The Xtreme-ActiveSQX is backed by EMS's UK technical support and standard 3-year warranty (5-year extended available on most of the range) — get in touch if you're not sure it's the right fit and we'll help you spec it correctly the first time.
Full Specifications
| Board Format | PCIe x4 Gen.2 plug-in card, half length, full height |
|---|---|
| Connectors | 2× RJ45 Ethernet ports, 1× DisplayPort output (reserved) |
| Ethernet | Dual 1000 Base-T, DHCP or Static IP, IPv4 & IPv6 |
| Streaming Methods | Multicast & Unicast |
| Streaming Codecs | H.264 (MPEG4 Part 10 AVC), VC-1, MPEG2 Part 2, MJPEG |
| Streaming Protocols | HTTP, RTSP, RTP, UDP |
| Decode Density | Up to 3× 4096×2160p @30fps or 6× 1920×1080p @60fps / 12× 1080p @30fps / 50+ D1 @30fps |
| Video Capture Memory | 4 GB |
| H.264 Profiles / Levels | CBP / MP / HiP — Levels 3 to 5.2 |
| DMA Bandwidth | Up to 1.3 GB/s |
| OS Support | Windows 7 64-bit / Server 2012 |
| Operating Temperature | 0 to 40°C / 32 to 104°F |
| Warranty | 3 years |
