Compact Capture Cards (XtremeLC)
Low-profile HDMI and SDI capture for streaming PCs, lecture capture and compact appliances

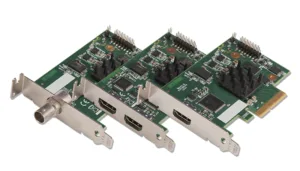

XtremeLC is EMS's compact, low-profile PCIe capture series — single-channel HDMI (XtremeLC-HD), dual-channel HDMI (XtremeLC-HD2) and single-channel SDI (XtremeLC-SDI). It is built for a PC that captures and streams: lecture capture and distance learning pods, medical and simulation appliances, live events and compact streaming rigs. Capture up to 3840×2160 at 30Hz over HDMI or SD/HD/3G-SDI at up to 60fps, with hardware scaling and colour space conversion on the card, and use it with the software you already run — OBS, vMix, Wirecast, VLC and other DirectShow applications on Windows, or Linux.
Choosing a capture card for a streaming PC? See our buyer's guide in the Knowledge Base.

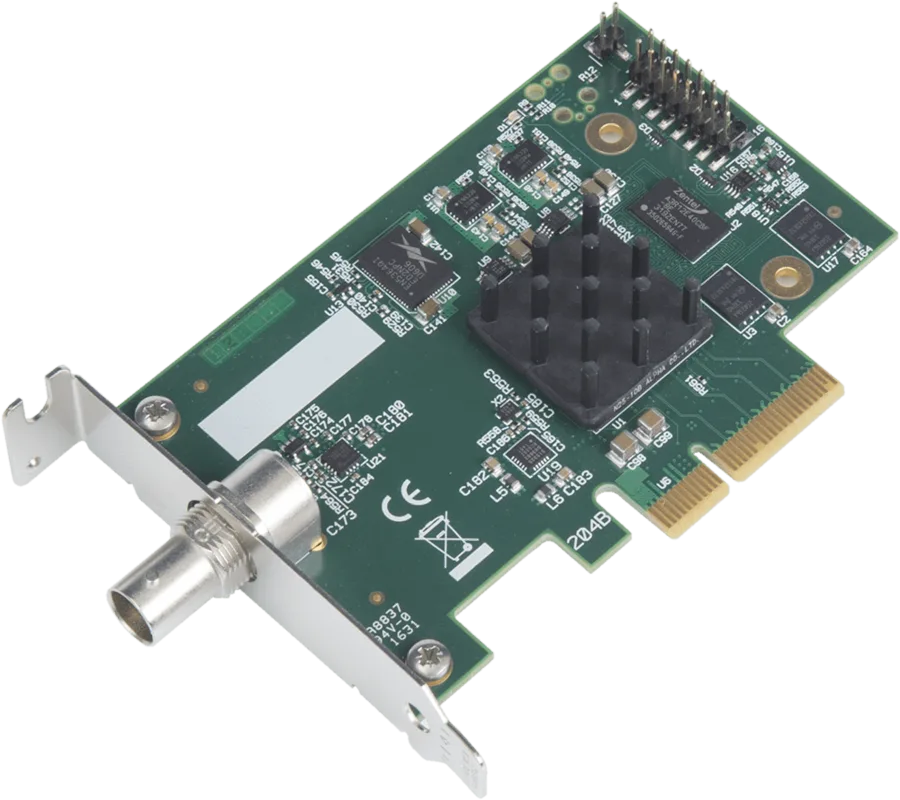

SKU: XLC-SDI
XtremeLC-SDI
- Single SDI capture channel
- SD / HD / 3G at 60fps
- 800 MB/s DMA bandwidth
- High performance up/down scaling

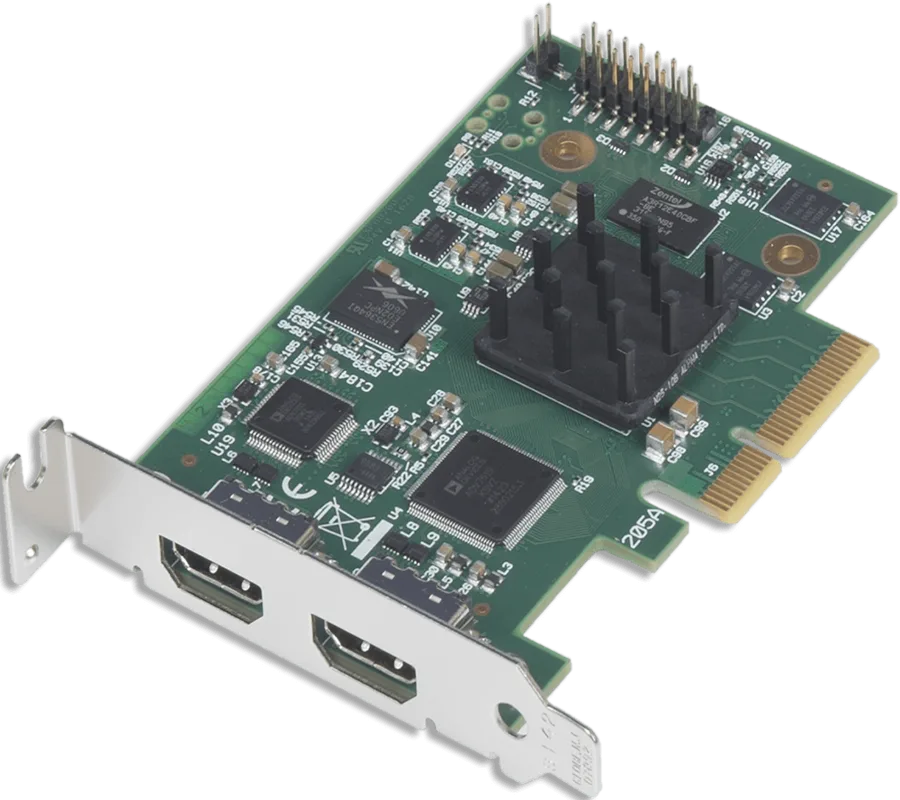

SKU: XLC-HD2
XtremeLC-HD2
- 1.6 GB/s total DMA bandwidth
- High performance up/down scaling
- Colour space conversion to any output format
- PCI Express Gen 2 x4 low profile

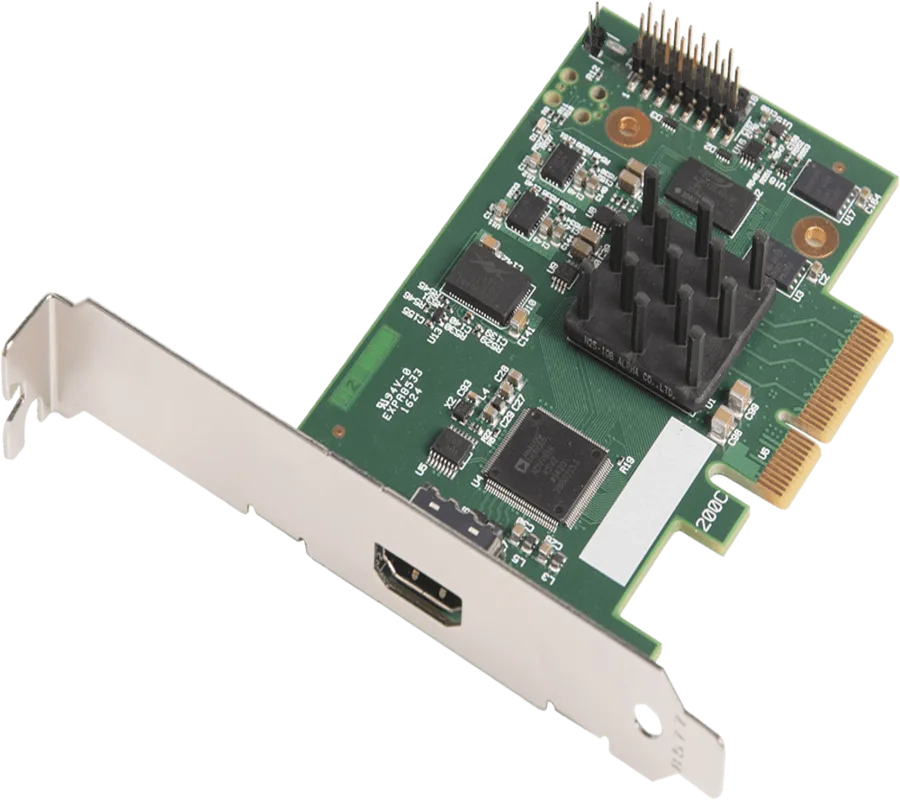

SKU: XLC-HD
XtremeLC-HD
- Up to 297 Mpixel/s — 4K (3840×2160) at 30fps
- 800 MB/s DMA bandwidth
- High performance up/down scaling
- Colour space conversion to output formats
Built for the applications that can't afford to fail
Low-profile PCIe card (103 × 64mm) that fits small form factor PCs and compact appliances
HDMI capture up to 3840×2160 at 30Hz, or SD / HD / 3G-SDI at up to 60fps, with embedded stereo audio
Hardware up/down scaling and colour space conversion on the card, so the host PC does less work
Standard 3-year warranty, with extended warranty available
Frequently Asked Questions
Which XtremeLC card do I need?
XtremeLC-HD for one HDMI source, XtremeLC-HD2 for two HDMI sources on one card (channel 1 up to 3840×2160 at 30Hz, channel 2 up to 1080p60), or XtremeLC-SDI for one SD, HD or 3G-SDI source.
What software works with XtremeLC?
XtremeLC is tested with OBS, vMix, Wirecast, VLC, Microsoft Media Encoder and other DirectShow-compatible software, using the EMS unified Windows and Linux driver.
Can I fit more than one card?
Yes — more than one XtremeLC card can be fitted in a PC for more capture channels.
Can XtremeLC be used in a VSN video wall controller?
No. XtremeLC uses the LiveStream:Capture architecture, which is not supported for wall controller applications that rely on MultiStream. For a video wall, choose a digital (XtremeDV) or mixed-signal (XtremeAV / XtremeRGB) capture card.
