Digital Capture Cards (XtremeDV)
4K60 HDMI 2.0, DisplayPort, 3G-SDI and network capture on PCIe Gen 3
XtremeDV is the current-generation, all-digital capture range, built on an eight-lane PCIe Gen 3 interface. Specify it when a project needs true 4K60 capture: dual HDMI 2.0 with 4:4:4 chroma and HDCP 2.2 (XtremeDV-UHD2), dual DisplayPort 1.2 (XtremeDV-DP2), four channels of 3G-SDI at 1080p60 (XtremeDV-SDI4), or four HDMI channels mixing 4K60 and 1080p60 (XtremeDV-HD4+). For AV-over-IP, XtremeDV-S2 captures two SDVoE streams and XtremeDV-A2 receives Aligo streams from Aetria networks.
Not sure which capture range fits your source signal? See our buyer's guide in the Knowledge Base.
SKU: XDV-UHD2
XtremeDV-UHD2
- Two independent HDMI 2.0 channels, 4K60 with 4:4:4 chroma sampling
- Eight-lane PCIe Gen.3 interface, net 6GB/s total capture bandwidth
- 2GB frame buffer memory
- Full 10-bit processing pipeline
SKU: XDV-DP2

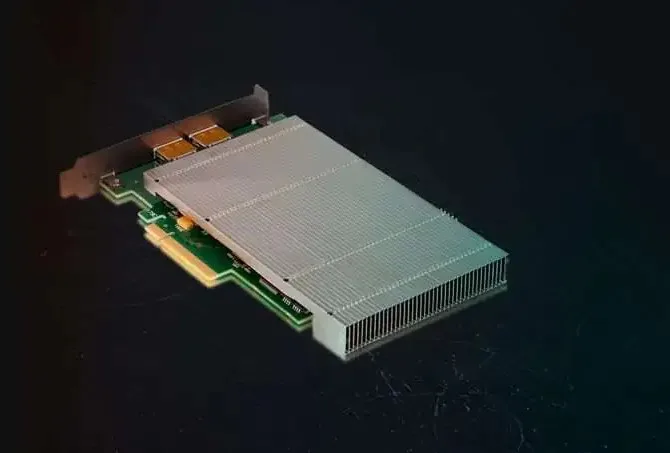

XtremeDV-DP2
- Two independent DisplayPort 1.2 capture channels
- Eight-lane PCIe Gen.3 interface, net 6GB/s total capture bandwidth
- 768MB frame buffer memory
- HDCP support with EMS graphics cards
SKU: XDV-SDI4

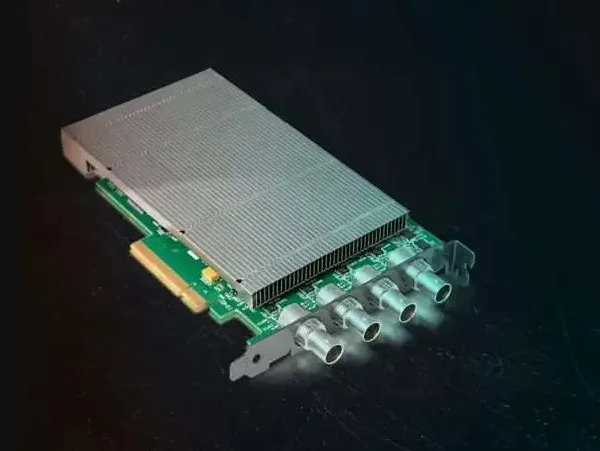

XtremeDV-SDI4
- Four independent 3G-SDI capture channels
- Four channels of 1920×1080p @60fps capture
- Eight-lane PCIe Gen.3 interface, net 6GB/s total capture bandwidth
- 768MB frame buffer memory
SKU: XDV-HD4

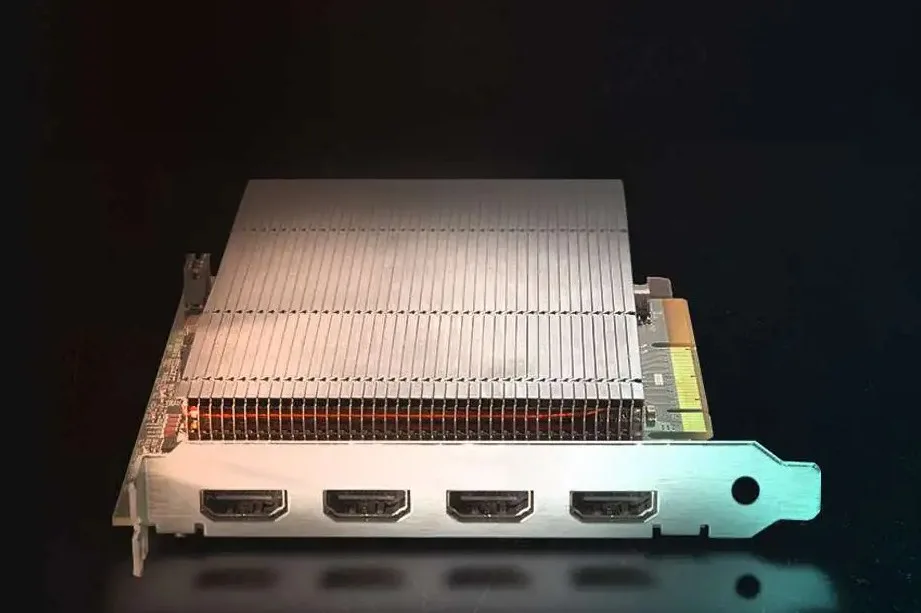

XtremeDV-HD4+
- Four independent HDMI 1.4 capture channels
- Two channels at 297MHz — 3840×2160p @60fps
- Two channels at 165MHz — 1920×1080p @60fps
- Eight-lane PCIe Gen.3 interface, net 6.4GB/s total bandwidth
SKU: XDV-S2

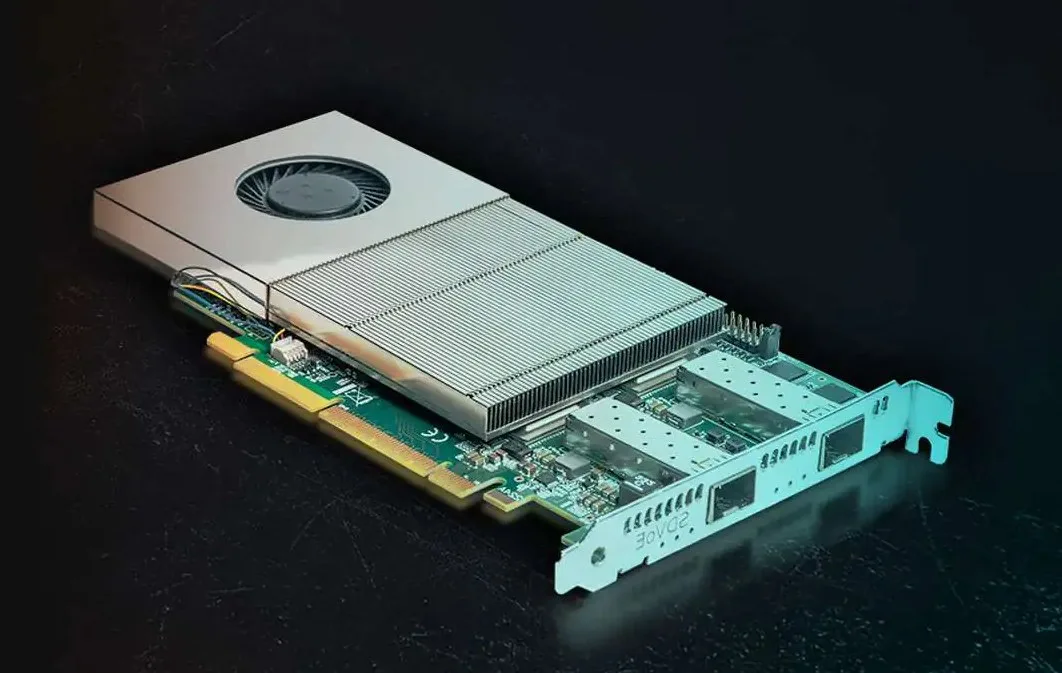

XtremeDV-S2
- Dual-channel SDVoE (Software-Defined Video over Ethernet) capture
- Full 4K60 decoding per channel
- Fully SDVoE-compliant for interoperability with other SDVoE hardware
- Sub-millisecond, under-100-microsecond latency
SKU: XDV-A2

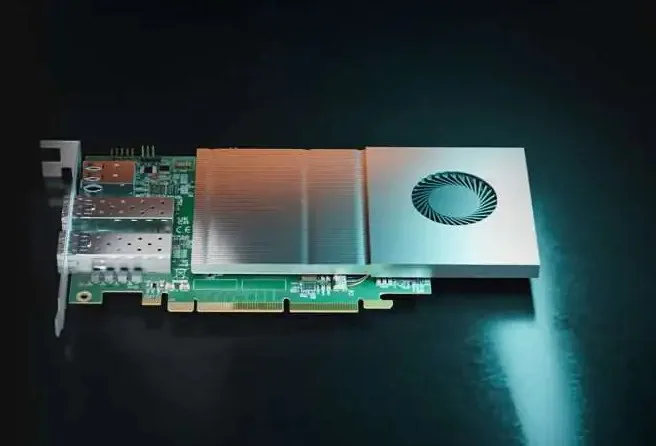

XtremeDV-A2
- Dual-channel Aligo capture card for Aetria AVoIP networks
- Receives a single 4K or up to four independent HD Aligo streams per channel — up to 8 HD streams per card
- 2x 10G SFP+ ports, 4GB frame buffer
- Up to 4096×2160 @60Hz, 8-bit 4:4:4
Built for the applications that can't afford to fail
Eight-lane PCIe Gen 3 interface on every card, for high capture bandwidth
True 4K60 capture — XtremeDV-UHD2 adds 4:4:4 chroma, a 10-bit pipeline and HDCP 2.2
HDMI 2.0, HDMI 1.4, DisplayPort 1.2, 3G-SDI, SDVoE and Aetria (Aligo) inputs in one range
Works in a single PC with OBS, vMix, Wirecast and VLC, or inside a VSN video wall controller
Frequently Asked Questions
Which XtremeDV card do I need?
Match the card to the source: XtremeDV-UHD2 for two HDMI 2.0 sources at 4K60, XtremeDV-DP2 for two DisplayPort 1.2 sources, XtremeDV-SDI4 for four 3G-SDI sources, XtremeDV-HD4+ for four HDMI sources (two at 4K60, two at 1080p60), XtremeDV-S2 for SDVoE networks and XtremeDV-A2 for Aetria (Aligo) networks.
Do XtremeDV cards need a video wall controller?
No. Every XtremeDV card works in a standard PC with PCIe slots. They can also be fitted in a VSN chassis alongside XtremeImage graphics and Xtreme-ActiveSQX IP cards when the same sources feed a video wall.
Is XtremeDV the right range for DVI, VGA or composite sources?
No — XtremeDV is digital only. For DVI-I, analogue RGB/VGA, YPbPr, composite or S-Video sources, see the Mixed-Signal Capture Cards (XtremeAV / XtremeRGB).
