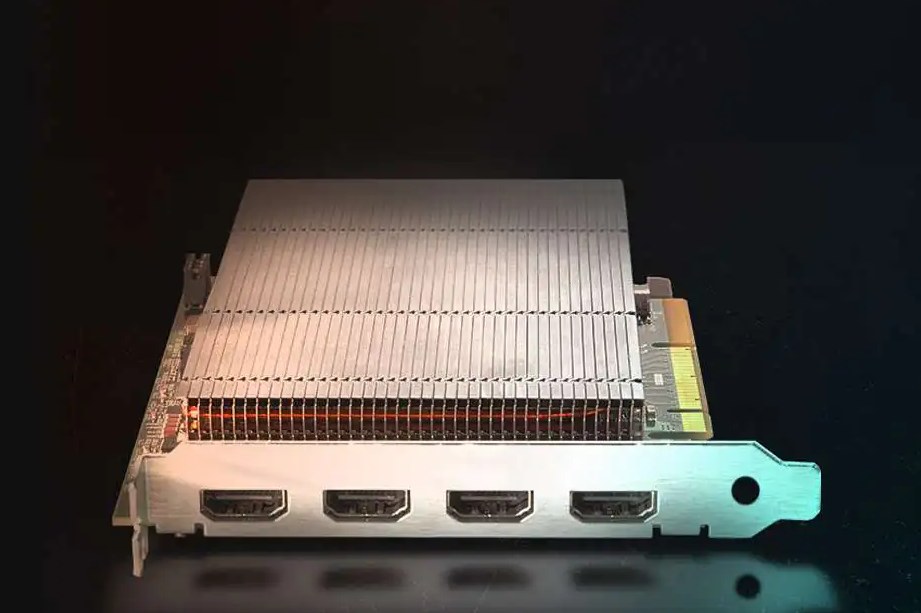

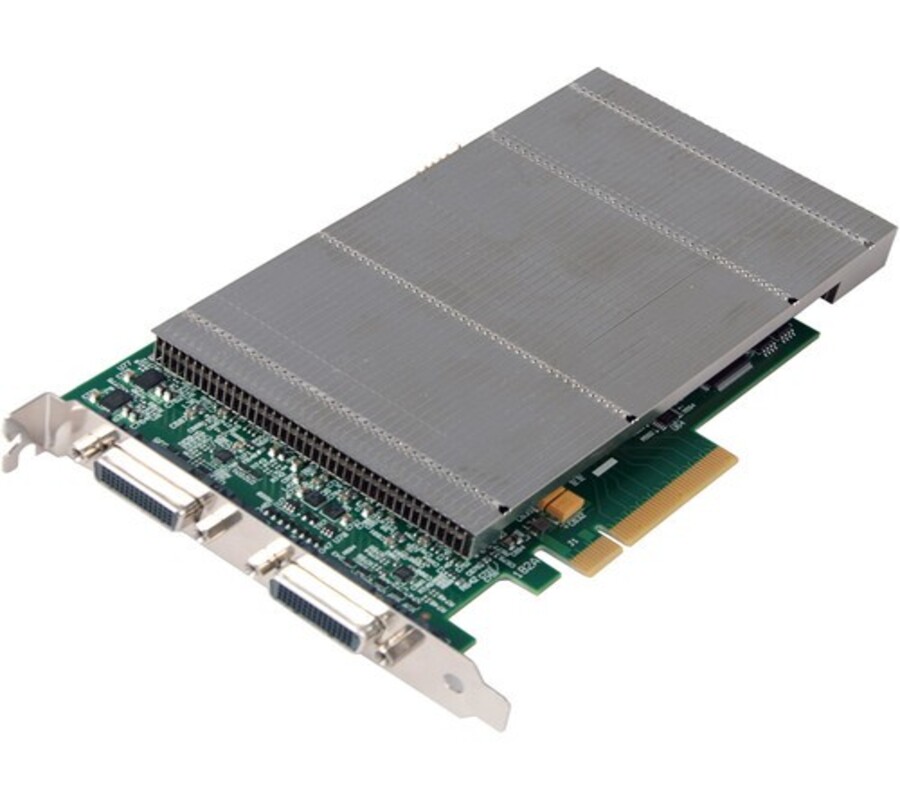

XtremeDV-HD4+
4-Channel HDMI Capture Card (2x 4K + 2x HD), PCIe
| Board Format | PCIe x8 plug-in card |
|---|---|
| Dimensions | 110mm x 177mm (incl. heat sink) |
| Connectors | 4x HDMI, with optional DVI adapters |
| Maximum Capture Resolution | Ch. 1 & 3: 3840×2160p @60fps — Ch. 2 & 4: 1920×1080p @60fps |
| Frame Buffer Memory | 768MB |
We ship worldwide. UK prices include 20% VAT; orders outside the UK are charged without VAT. Standard 3-year warranty.
The XtremeDV-HD4+ is a PCIe Gen 3 capture card with four independent HDMI 1.4 inputs: two capture up to 4K60 and two up to 1080p60. It is used where several HDMI or DVI sources must be captured in one slot, for example in medical imaging, machine vision, defence and surveillance.
Channels 1 and 3 capture up to 3840×2160 at 60fps (297MHz); channels 2 and 4 capture up to 1920×1080 at 60fps (165MHz). All four run independently, with embedded audio on every channel and HDCP support. Order it with HDMI or DVI splitter cables to suit your sources.
Inputs
- HDMI 1.4
- Four independent inputs: two up to 4K60, two up to 1080p60. HDMI 1.3 and DVI sources work too.
- Cables
- XtremeDV-HD4+/H ships with HDMI splitter cables; XtremeDV-HD4+/D with DVI splitter cables.
- HDCP and audio
- HDCP is supported, and embedded audio is captured on all four channels.
Outputs
- To the computer
- 6.4 GB/s net across an eight-lane PCIe Gen 3 interface, with a 768MB frame buffer.
- Formats
- RGB 4:4:4 (16, 24 and 32-bit), YUV 4:2:2 and 4:2:0, and 8-bit mono.
Applications
- Medical imaging
- A 4K endoscopy feed plus HD monitoring sources on one card.
- Machine vision, defence and surveillance
- Several sources captured together in one system.
- Control rooms
- Mixed 4K and HD feeds into a VSN video wall controller.
- Standalone
- Four sources into one recording PC. No wall controller is needed.
Installation and software
- The card
- PCIe x8, 110 × 177mm including the heat sink. Up to about 18W.
- Drivers
- The EMS unified driver covers Windows 10, Windows 11, Windows Server 2019 and 2022, and Linux.
- More cards
- Several cards can be used in one system.
Range and alternatives
- If every input must run at 4K60 with 4:4:4 colour, XtremeDV-UHD2 gives two full 4K60 HDMI 2.0 channels per card.
- For DVI-I sources that also need analogue RGB, see Xtreme-HD4 in the Mixed-Signal Capture Cards.
Watch the range video
XtremeDV digital capture cards
The XtremeDV range in 90 seconds: HDMI 2.0 and DisplayPort at up to 4K60, 3G-SDI and video over IP, and how each card works on its own, in a dedicated capture system or inside a VSN video wall controller.
Plays from YouTube when you press play. Watch on YouTube
| Board Format | PCIe x8 plug-in card |
|---|---|
| Dimensions | 110mm x 177mm (incl. heat sink) |
| Connectors | 4x HDMI, with optional DVI adapters |
| Maximum Capture Resolution | Ch. 1 & 3: 3840×2160p @60fps — Ch. 2 & 4: 1920×1080p @60fps |
| Frame Buffer Memory | 768MB |
| Video Modes | HDMI 1.4, HDMI 1.3, DVI |
| Operating System | Linux, Windows 10/11, Windows Server 2019/2022 |
| Power Requirements | Max current +3.3V 0.45A, +12V 0.85A — max power ≈18W |
| Operating Temperature | 0 to 35°C / 32 to 96°F |
| Warranty | 3 years |
Are all four inputs 4K?
No. Channels 1 and 3 capture up to 3840×2160 at 60fps; channels 2 and 4 capture up to 1920×1080 at 60fps.
Can I connect DVI sources?
Yes. Order the XtremeDV-HD4+/D with DVI splitter cables, or the /H version for HDMI.
Does it capture audio?
Yes, embedded audio on all four channels.
Do I need a video wall controller?
No. It works in any PC with a free PCIe x8 (or x16) slot. It can also go in a VSN chassis.
What warranty does it have?
A standard 3-year warranty, with a 5-year extended warranty available.
