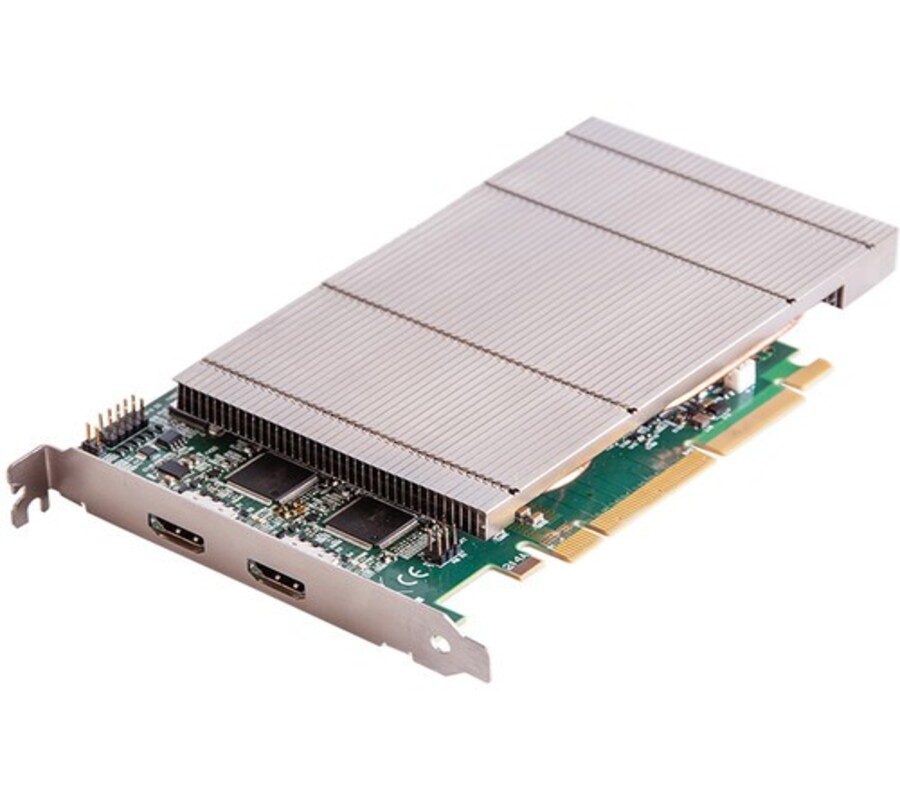

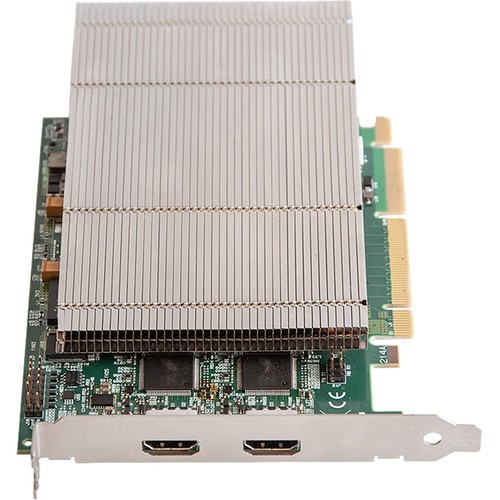

XtremeDV-UHD2

Dual HDMI 2.0 4K60 Capture Card, PCIe

SKU XDV-UHD2 · Digital Capture Cards · EMS Imaging, Leicester UK

Board Format	PCIe x8 plug-in card
Dimensions	110mm x 195mm (incl. heat sink)
Connectors	Dual HDMI 2.0
Max Capture Rate	600MHz TMDS clock, max capture surface 8k x 8k
Frame Buffer	2GB

£2,773.20 inc VAT

Ship to Qty Request a quote

We ship worldwide. UK prices include 20% VAT; orders outside the UK are charged without VAT. Standard 3-year warranty.

Trade and volume pricing ·

The XtremeDV-UHD2 is a PCIe Gen 3 capture card with two HDMI 2.0 inputs. Each input captures 4K at 60 frames per second with full 4:4:4 colour and HDCP 2.2, without scaling or subsampling.

Each input takes up to 4K at 60 frames per second with full 4:4:4 chroma, through a 600MHz HDMI receiver and a 10-bit processing pipeline. The two channels are independent, and they can also be ganged together and frame-synchronised to capture a single 8K × 2K surface.

Inputs

HDMI 2.0: Two independent inputs, each up to 4K60 4:4:4 (600MHz TMDS). HDMI 1.4 and 1.3 sources work too. Certified premium HDMI cables up to 5m are supported.
HDCP 2.2: Supported at 4K60.
Colour: BT.2020, BT.709 and BT.601, with limited or full range selectable.

Outputs

To the computer: 6 GB/s net across an eight-lane PCIe Gen 3 interface, with a 2GB frame buffer on the card.
Formats: 10-bit RGB, 8-bit RGB and YUV 4:4:4, 4:2:2 and 4:2:0 (including NV12, YUY2, UYVY, Y410) and mono as your software requests.
Scaling: A hardware polyphase multi-tap scaler: clean, anti-aliased downscaling and accurate upscaling.
Latency: Single-line capture latency.

Applications

Video wall controllers: Two 4K60 sources from one slot of an Xtreme-VSNV3, alongside XtremeImage graphics, for live TV, signage players and presenter PCs on LCD and LED walls.
Media servers and projection: Live 4K inputs into show and projection software such as Dataton Watchout.
4K streaming and lecture capture: In a single PC with vMix, Wirecast, OBS, Panopto or Opencast. No wall controller is needed.
HDCP 2.2 sources: Games consoles, streaming players and 4K Blu-ray players.
Wide surfaces: Two inputs frame-synchronised into one 8K × 2K capture.

Installation and software

The card: PCIe x8, 110 × 195mm including the heat sink. Up to about 21W.
Drivers: The EMS unified driver covers Windows 10, Windows 11, Windows Server 2019 and 2022, and Linux (V4L driver). The Xtreme SDK is available for custom applications.
Software: Appears as a DirectShow / Media Foundation source in Dataton Watchout, Panopto, vMix, Wirecast, OBS, VLC and other applications.

Range and alternatives

XtremeDV-HD4+ gives four HDMI channels (two at 4K60, two at 1080p60). XtremeDV-DP2 is the DisplayPort equivalent; XtremeDV-SDI4 takes four 3G-SDI feeds.

For DVI, VGA or composite sources, see the Mixed-Signal Capture Cards. In a VSN system it sits alongside XtremeImage graphics and Xtreme-ActiveSQX IP cards.

Watch the range video

XtremeDV digital capture cards

The XtremeDV range in 90 seconds: HDMI 2.0 and DisplayPort at up to 4K60, 3G-SDI and video over IP, and how each card works on its own, in a dedicated capture system or inside a VSN video wall controller.

Plays from YouTube when you press play. Watch on YouTube

Board Format	PCIe x8 plug-in card
Dimensions	110mm x 195mm (incl. heat sink)
Connectors	Dual HDMI 2.0
Max Capture Rate	600MHz TMDS clock, max capture surface 8k x 8k
Frame Buffer	2GB
Colour Spaces	BT2020, BT709, BT601 — selectable limited/full range
Video Standard	HDMI 2.0, HDMI 1.4, HDMI 1.3
Operating System	Linux, Windows 10/11, Windows Server 2019/2022
Power Requirements	Max current 12V 1.7A, 3.3V 0.1A — max power ≈21W
Operating Temperature	0 to 35°C / 32 to 96°F
Warranty	3 years

All downloads · Request documentation

Does it capture true 4K60 4:4:4?

Yes. Each of the two HDMI 2.0 inputs captures up to 4K at 60 frames per second with 4:4:4 chroma, through a 10-bit pipeline.

Does it support HDCP?

Yes, HDCP 2.2 at 4K60.

Do I need a video wall controller?

No. It works in any PC with a free PCIe x8 (or x16) slot, and is often used on its own for 4K streaming and recording. It can also be fitted in a VSN chassis.

Can the two inputs be combined?

Yes. The two channels can be frame-synchronised and ganged to capture a single 8K × 2K surface.

Which software works with it?

Any DirectShow or Media Foundation application, including Dataton Watchout, Panopto, vMix, Wirecast, OBS and VLC. A Linux V4L driver and an SDK are available.

What warranty does it have?

A standard 3-year warranty, with a 5-year extended warranty available.
