Graphics Controllers (Multi-Screen)
Scalable multi-screen graphics cards for video wall builds
Designed for professional, multi-screen and video wall installations. The XtremeImage-4K is a powerful graphics card enabling scalable solutions, delivering full 4K60 4:4:4 content over four HDMI 2.0 outputs. The XtremeImage-2K enables seamless mixing of 4K and HD outputs, all at 60 frames per second, with multi-card support up to 24–32 screens.
SKU: XI-2K

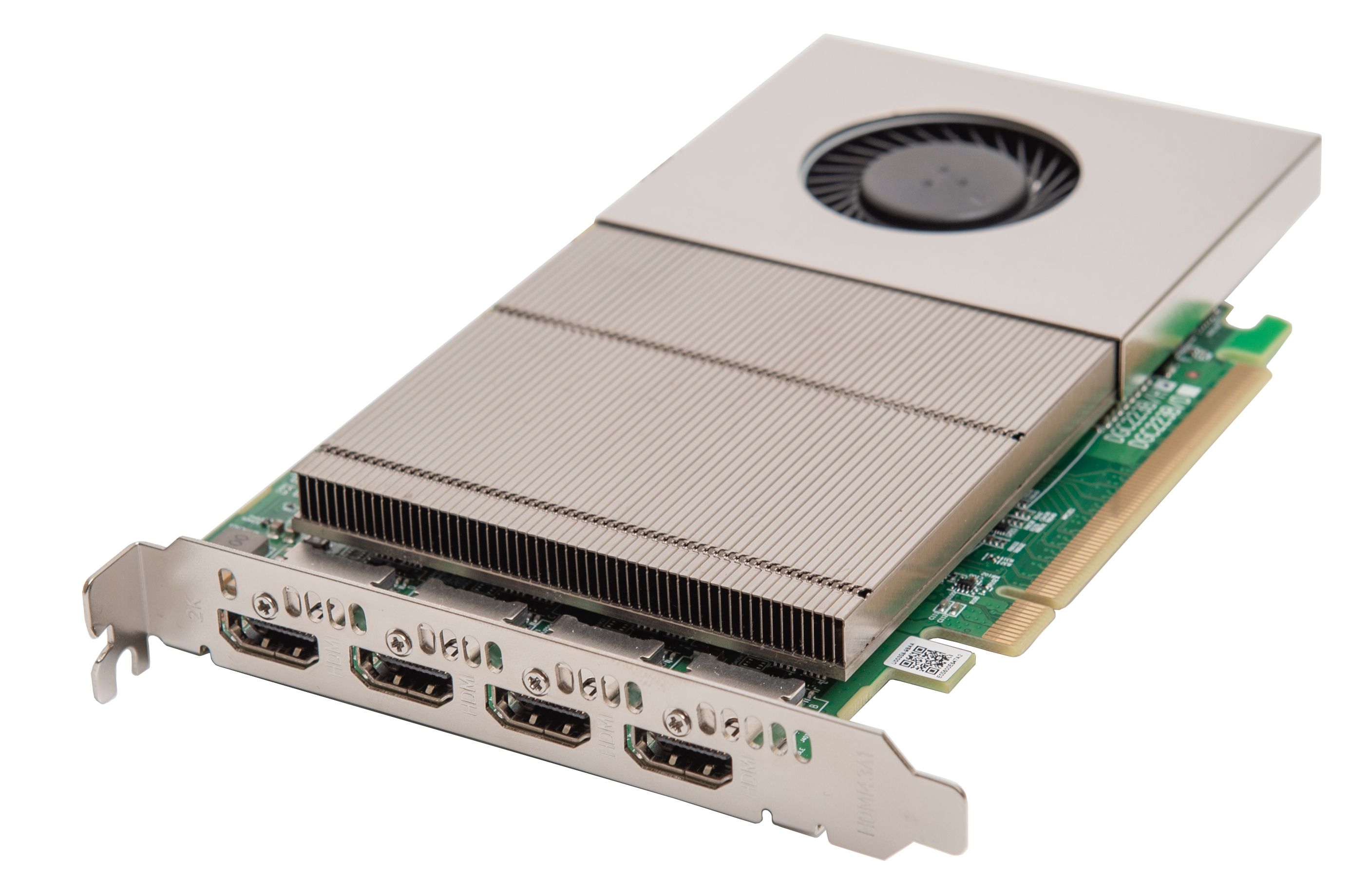

XtremeImage-2K
- Up to 3840×2160 @60Hz output resolution
- Seamless mixing of HD and 4K outputs, all at 60fps
- HDCP 2.2 support
- Support for up to 8 cards in a single system — up to 32 HD or 16 4K outputs
SKU: XI-4K
XtremeImage-4K
- Four 4K60 4:4:4 HDMI 2.0 outputs
- Enables full 4K60 capture and display in EMS VSN controllers
- Support for up to 6 cards in a single system, up to 24 4K or 96 HD outputs
- 8GB graphics memory
Built for the applications that can't afford to fail
Seamless mixing of HD and 4K outputs on the same card, all at 60 frames per second
Scale up to 8 XtremeImage-2K or 6 XtremeImage-4K cards in one system for up to 32 HD or 24 4K display channels
Fully compatible with the Display Driver Configuration Tool and VigiControl 10 for fast wall layout and management
HDCP 2.2 support when paired with Xtreme capture cards, for protected 4K content across the whole wall
Frequently Asked Questions
Can I mix XtremeImage-2K and XtremeImage-4K cards in the same system?
No — each card is only compatible with other cards of the same model. A system should be built entirely from XtremeImage-2K cards or entirely from XtremeImage-4K cards, not a mixture of the two.
What cables should I use?
Premium, certified HDMI cables are required for reliable output at full bandwidth — a cheap or overlength cable is one of the most common causes of dropped signal on a 4K60 output.
How many displays can one system drive?
Up to 32 HD or 16 4K outputs from 8x XtremeImage-2K cards, or up to 24 4K (96 HD) outputs from 6x XtremeImage-4K cards, depending which model the system is built around.
Does it need EMS capture cards specifically?
It's designed and tested against the Xtreme capture card range for full HDCP 2.2 compatibility — pairing with a different manufacturer's capture card isn't guaranteed to work the same way.
