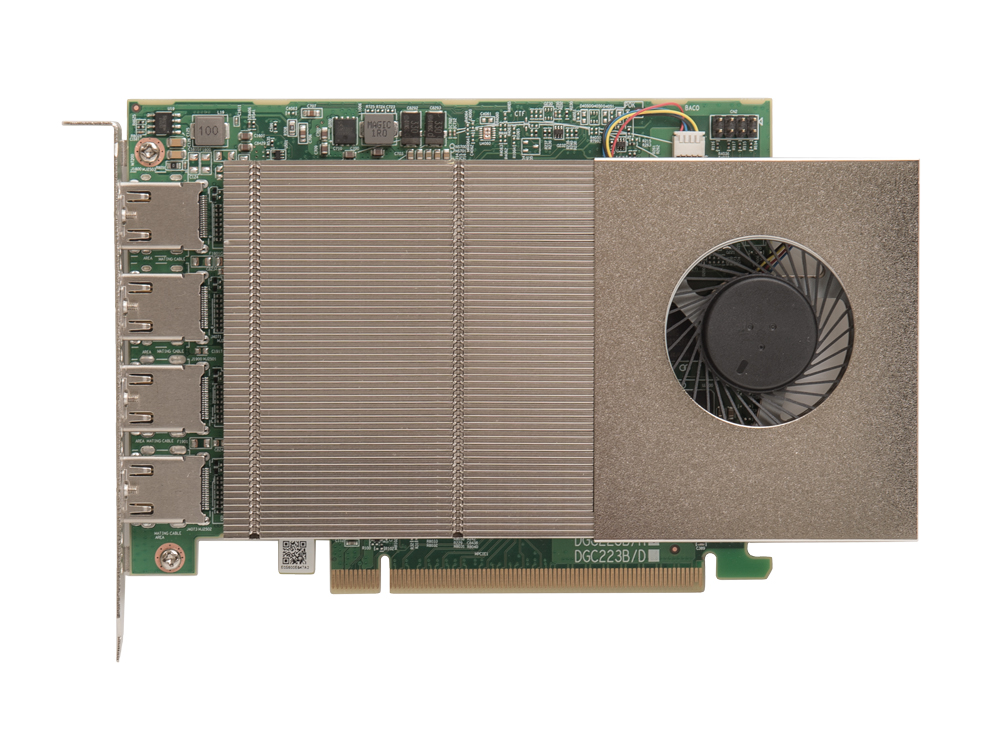

XtremeImage-2K
4-Output HDMI Video Wall Graphics Card, 4K/HD
| Card Format | PCI Express x16 Mechanical, x8 Electrical (Gen. 3) |
|---|---|
| Card Size | 110mm x 177mm (incl. heat sink) |
| Maximum Output Resolution | Up to 3840×2160 @60Hz |
| Max Effective Transfer Rate | 5.5 GB/s sustained (from EMS capture cards) |
| Maximum Colour Depth | 8-bit per component |
We ship worldwide. UK prices include 20% VAT; orders outside the UK are charged without VAT. Standard 3-year warranty.
Four-output HDMI graphics card for video walls, mixing 4K and HD outputs at 60fps, with HDCP 2.2 and up to eight cards per system. Drives multi-screen, LED and video wall installations of up to 32 HD or 16 4K displays.
Designed to power multi-screen, video wall and LED installations, the XtremeImage-2K enables seamless mixing of 4K and HD outputs, all at 60 frames per second, over direct HDMI outputs. Fully integrated with EMS's graphical setup wizard, it's easy to configure for different combinations of monitors, projectors or LED controllers — output resolution, rotation and wall layout are configured through an intuitive graphical interface in minutes.
With outputs synchronised across all cards, multiple video walls and single screen displays can be driven from a single system, making it ideal for security suites, corporate office displays, retail signage and multi-video wall applications. Up to 8 cards can be used in a single system, giving up to 32 HD outputs, 16 4K outputs, or a mixture of the two. Fully compatible with EMS's VigiControl software for content management.
Applications
Security Suites · Corporate Office Displays · Retail Signage · Multi-Video Wall Installations
Range and alternatives
XtremeImage-2K is the right choice where a project needs flexible mixed HD/4K output across many screens at moderate per-card cost — security suites and retail signage estates that scale by adding more displays over time benefit from its up-to-8-cards-per-system scaling and seamless HD/4K mixing. Where every output must be genuine 4K60 4:4:4 rather than a mix, or the project is built around EMS's VSN 4K controllers specifically, XtremeImage-4K is the higher-fidelity option.
Watch the range video
XtremeImage video wall graphics cards
Four HDMI outputs per card at 60 Hz, 2K or 4K: how the wall grows as cards are added, alongside capture and IP cards in a VSN controller.
Plays from YouTube when you press play. Watch on YouTube
| Card Format | PCI Express x16 Mechanical, x8 Electrical (Gen. 3) |
|---|---|
| Card Size | 110mm x 177mm (incl. heat sink) |
| Maximum Output Resolution | Up to 3840×2160 @60Hz |
| Max Effective Transfer Rate | 5.5 GB/s sustained (from EMS capture cards) |
| Maximum Colour Depth | 8-bit per component |
| Maximum Cards per System | 8 cards (up to 32 HD or 16 4K outputs) |
| Graphics Card Memory | 2GB total |
| HDCP Support | 2.2 |
| Maximum Thermal Power | 35W |
| Operating Temperature | 0 to 35°C / 32 to 96°F |
| Storage Temperature | -20 to 70°C / -4 to 158°F |
| Relative Humidity | 5% to 90% non-condensing |
| MTBF | Over 80,000 hrs |
| Max Current | +3.3V: 0.6A, +12V: 4.0A |
| Operating System | Windows 10 LTSC, Windows Server 2019 |
| Order Code | XtremeImage-2K |
| Warranty | 3 years (5-year extended available) |
