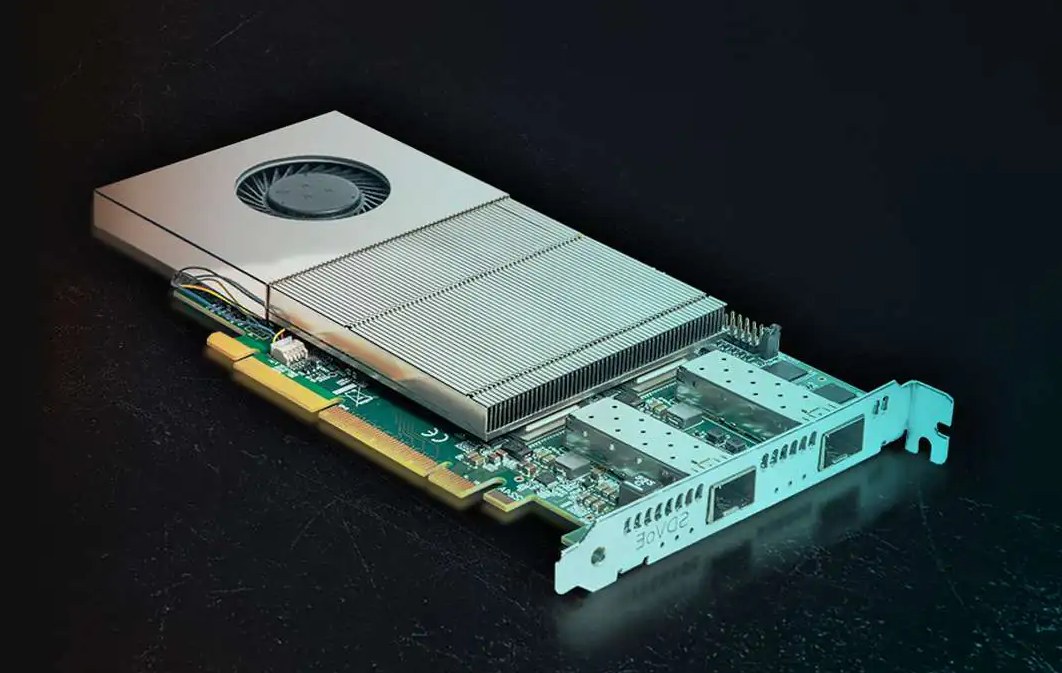

XtremeDV-S2

Dual-Channel SDVoE 4K60 Network Capture Card, PCIe

SKU XDV-S2 · Digital Capture Cards · EMS Imaging, Leicester UK

Board FormatPCIe x8 plug-in card
Dimensions111mm x 210mm (incl. active heatsink)
Frame Buffer2GB
Channels2x SDVoE decode, full 4K60 per channel
Network StandardSDVoE (Software-Defined Video over Ethernet), fully compliant
£3,841.20 inc VAT
Request a quote

We ship worldwide. UK prices include 20% VAT; orders outside the UK are charged without VAT. Standard 3-year warranty.

The XtremeDV-S2 captures two SDVoE (Software-Defined Video over Ethernet) streams directly into a PC or video wall controller, uncompressed and at up to 4K60 each, without a separate receiver for each source.

Each channel decodes an SDVoE stream at up to 4096×2160 at 60Hz (8-bit 4:4:4, or 10-bit 4:2:2 / 4:2:0). Latency is under 100 microseconds, about 1/150th of a video frame. Because the card is fully SDVoE-compliant, it works with other manufacturers' SDVoE transmitters, not only ours.

Inputs

SDVoE
Two capture channels from an SDVoE network, each up to 4K60.
Interoperability
Fully SDVoE-compliant, so it receives from any compliant transmitter.
Audio
Multi-channel audio, routed and downmixed through the API.

Outputs

To the computer
PCIe x8 with a 2GB frame buffer and a capture surface of up to 8K × 8K.
Formats
10-bit RGB, 8-bit RGB and YUV 4:4:4, 4:2:2 and 4:2:0, and mono, with BT.2020, BT.709 and BT.601 colour.
Processing
Hardware scaling, EDID management and automatic signal detection, as on the rest of the XtremeDV range.

Applications

AV-over-IP sites
Campuses, stadiums and broadcast facilities already running an SDVoE backbone.
Control rooms
Network sources onto a video wall alongside directly wired capture.
Custom systems
The Xtreme SDK covers routing, video wall processing, compositing and audio.

Installation and software

The card
PCIe x8, 111 × 210mm including the active heatsink. Up to about 24W; operating temperature 0 to 40°C.
Software
Windows 10, Windows 11, Windows Server 2019 and 2022, and Linux. A full SDK is available.

Range and alternatives

For directly wired sources, the other Digital Capture Cards (UHD2, DP2, SDI4, HD4+) are simpler and lower cost.
For H.264 / H.265 IP camera streams rather than SDVoE, see Xtreme-ActiveSQX in IP Streaming.

Watch the range video

XtremeDV digital capture cards

The XtremeDV range in 90 seconds: HDMI 2.0 and DisplayPort at up to 4K60, 3G-SDI and video over IP, and how each card works on its own, in a dedicated capture system or inside a VSN video wall controller.

Plays from YouTube when you press play. Watch on YouTube

Board FormatPCIe x8 plug-in card
Dimensions111mm x 210mm (incl. active heatsink)
Frame Buffer2GB
Channels2x SDVoE decode, full 4K60 per channel
Network StandardSDVoE (Software-Defined Video over Ethernet), fully compliant
LatencySub-millisecond — under 100 microseconds (1/150th of a video frame)
CompatibilityInteroperable with any SDVoE-compliant transmitter/receiver hardware
IntegrationFull SDK available for custom control
Operating SystemLinux, Windows 10/11, Windows Server 2019/2022
Power RequirementsMax 3.3V 2.2A, 12V 1.4A — max power ≈24W
Operating Temperature0 to 40°C
Warranty3 years

The datasheet for this product is available on request.

All downloads · Request documentation

What is SDVoE?

Software-Defined Video over Ethernet: a standard for sending uncompressed HD and 4K video over ordinary 10G Ethernet and fibre networks.

Does it work with other makers’ SDVoE transmitters?

Yes. The card is fully SDVoE-compliant.

What is the latency?

Under 100 microseconds, about 1/150th of a video frame.

Can I control it from my own software?

Yes, a full SDK is available.

What warranty does it have?

A standard 3-year warranty.
