HD + SD Video & Audio Capture Card, PCIe

SKU XAV-H · Mixed-Signal Capture Cards · EMS Imaging, Leicester UK

Board FormatPCIe x4 half-size plug-in card, 110mm x 170mm
Connectors2x DVI-I, 1x RCA (female)
HDMI CaptureUp to HDMI 1.3, 225MHz, deep colour, HDCP with EMS graphics cards, TMDS equaliser for cables up to 20m
DVI CaptureDVI 1.0 RGB 24-bit up to 165MHz, TMDS equaliser for cables up to 20m
VGA / YPbPr CaptureTriple ADC up to 170Msps, full 4:4:4 sampling, 8-bit per colour, 5-wire/4-wire/sync-on-green
£1,461.60 inc VAT
Request a quote

We ship worldwide. UK prices include 20% VAT; orders outside the UK are charged without VAT. Standard 3-year warranty.

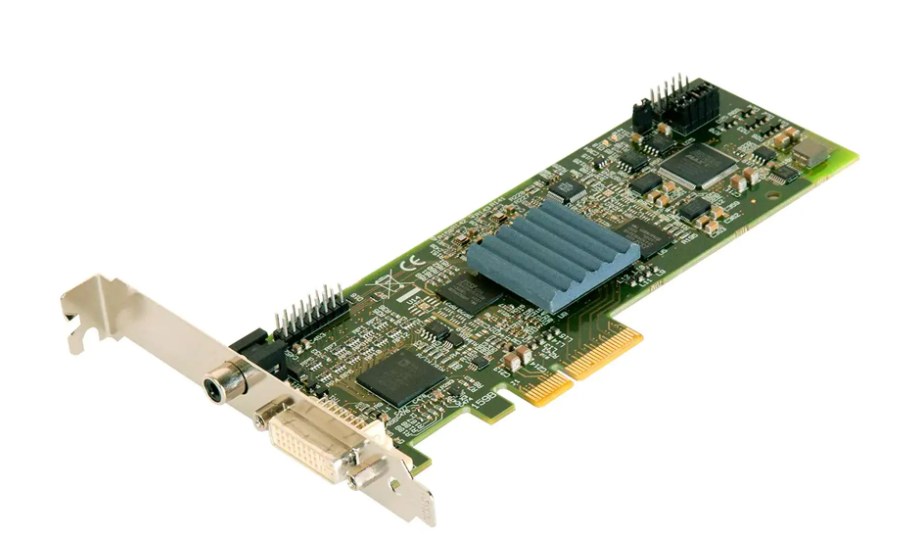

The XtremeAV is a PCIe x4 capture card with two channels that capture at the same time: one HD channel on a DVI-I input, and one SD composite channel. It also captures audio.

The HD channel takes HDMI, DVI, analogue RGB or component video at resolutions up to 4096 × 4096. Both channels are triple-buffered in 256MB of on-card memory, and up to 16 independent streams can be sent to the computer at once.

Inputs

HD channel
HDMI, DVI, analogue RGB or component (YPbPr) on a DVI-I input, progressive or interlaced, up to 4096 × 4096. Digital up to a 165MHz pixel clock; analogue up to 170 Msamples/s with full 4:4:4 sampling.
SD channel
Composite video on an RCA input, PAL, NTSC or SECAM, detected automatically.
Audio
HDMI embedded audio, plus balanced (XLR) and unbalanced (RCA) analogue inputs on the audio breakout, 16-bit at 44.1, 48 or 96 kHz with ±12 dB gain, and a line output for monitoring.
Cables
TMDS equalisation for HDMI and DVI cables up to 20m.

Outputs

To the computer
Up to 800 MB/s of DMA, as up to 16 independent streams, each with its own size, colour format and cropping.
Scaling
7 × 5 polyphase scaling on the card, up and down.
Formats
RGB 16, 24 or 32-bit, YUV 4:2:2 and 8-bit mono.
Timing
Time stamps for synchronising capture across inputs, cards and systems.

Applications

Medical imaging
A modern HD modality and an older SD monitoring feed captured together.
Lecture capture and conferencing
A presenter laptop on the HD channel, a document camera on the SD channel, with microphone audio.
Streaming and webcasting
Works with DirectShow software such as VLC, StreamPix and Dataton Watchout.
Video walls
In a VSN wall controller both channels appear as sources in VigiControl.

Installation and software

The card
PCIe x4, fits a x4, x8 or x16 slot.
Drivers
EMS unified Windows and Linux driver, DirectShow and the Xtreme SDK; Linux audio support is limited, so ask us first. Custom EDID can be set on the HD input.
Adapters
HD sources other than DVI connect through the DVI-to-HDMI or DVI-to-component adapter.

Range and alternatives

XtremeAV-HD2+ has two HD channels plus the composite input. XtremeAV-SDI adds a 3G-SDI channel.
For four HD channels on one card, see Xtreme-HD4.

Watch the range video

XtremeAV and XtremeRGB mixed-signal capture cards

DVI, analogue RGB, composite, S-Video and SDI sources in one modern system: the nine mixed-signal cards in three groups, and where they fit.

Plays from YouTube when you press play. Watch on YouTube

Board FormatPCIe x4 half-size plug-in card, 110mm x 170mm
Connectors2x DVI-I, 1x RCA (female)
HDMI CaptureUp to HDMI 1.3, 225MHz, deep colour, HDCP with EMS graphics cards, TMDS equaliser for cables up to 20m
DVI CaptureDVI 1.0 RGB 24-bit up to 165MHz, TMDS equaliser for cables up to 20m
VGA / YPbPr CaptureTriple ADC up to 170Msps, full 4:4:4 sampling, 8-bit per colour, 5-wire/4-wire/sync-on-green
Composite Video CaptureCCIR601 sampling, PAL/NTSC/SECAM auto-detected
Audio CaptureAM2 module included — stereo line-in/balanced inputs, ±12dB gain, 16-bit @44.1/48/96kHz, line-out passthrough
Video Capture Memory256MB high-bandwidth frame buffer, triple buffered for HD and SD simultaneously
DMA EngineUp to 800MB/s, 16 independent DMA streams
Power Requirements12V: 1A, 3.3V: 1A, 15.5W thermal dissipation
Operating Temperature0 to 35°C / 32 to 96°F
Storage Temperature-20 to 70°C / -4 to 158°F
Relative Humidity5% to 90% non-condensing
OS SupportUp to Windows 10, Linux (check Linux-specific features with EMS)
Warranty3 years
Do both channels capture at the same time?

Yes. The HD and SD channels are independent and capture simultaneously.

Which HD sources can it take?

HDMI, DVI, analogue RGB and component, on the DVI-I input, at resolutions up to 4096 × 4096.

Does it capture audio?

Yes. HDMI embedded audio, and balanced or unbalanced analogue audio through the audio breakout.

Can it capture HDCP-protected sources?

Please ask us before ordering for HDCP-protected sources.

What warranty does it have?

A standard 3-year warranty.
