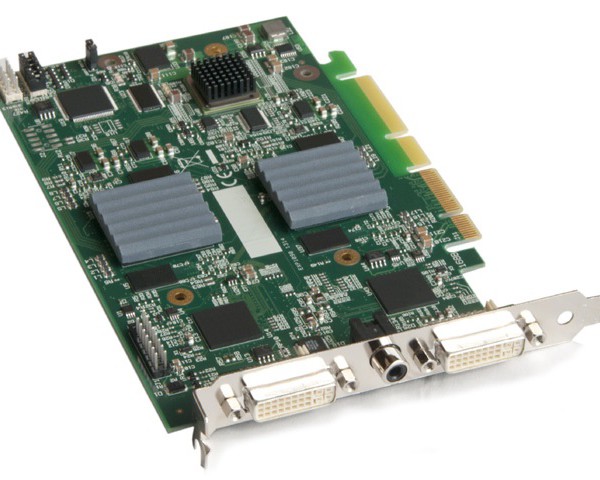

XtremeAV-HD2+
Dual HD DVI-I/HDMI + Composite Capture Card, PCIe
| Board Format | PCIe x4 half-size plug-in card, 110mm x 170mm |
|---|---|
| Connectors | 2x DVI-I, 1x RCA (female) |
| HDMI Capture | Up to HDMI 1.3, 225MHz, deep colour, HDCP with EMS graphics cards |
| DVI Capture | DVI 1.0 RGB 24-bit up to 165MHz |
| Composite Video Capture | CCIR601 sampling, PAL/NTSC/SECAM auto-detected |
We ship worldwide. UK prices include 20% VAT; orders outside the UK are charged without VAT. Standard 3-year warranty.
The XtremeAV-HD2+ is a PCIe x4 capture card with three channels that capture at the same time: two HD channels on DVI-I inputs, and one SD composite channel. It also captures audio.
Both HD channels take HDMI, DVI, analogue RGB or component video at resolutions up to 4096 × 4096, including 1080p60. All three channels are triple-buffered on the card, with 1.6 GB/s of total capture bandwidth, and audio can be synchronised with every channel using time stamps.
Inputs
- Two HD channels
- HDMI, DVI, analogue RGB or component (YPbPr) on two DVI-I inputs, up to 4096 × 4096 and 1080p60.
- SD channel
- Composite video on an RCA input, PAL, NTSC or SECAM up to 720 × 576, detected automatically.
- Audio
- HDMI embedded audio, plus balanced (XLR) and unbalanced (RCA) analogue inputs and a line output through the AM2 audio module, 16-bit at 44.1 to 96 kHz.
Outputs
- To the computer
- 1.6 GB/s total capture bandwidth on PCIe x4, from 2 × 256MB of frame memory.
- To graphics cards
- Direct transfer to EMS graphics cards, and to other graphics cards through AMD DirectGMA or Nvidia GPUDirect where their drivers support it.
- Streams
- Up to 16 streams per input, each with its own size, colour format and cropping.
- Timing
- Time stamps and frame synchronisation across inputs, cards and systems.
Applications
- Lecture capture and conferencing
- A presenter camera and a laptop on the HD channels, a document camera on the SD channel, with microphone audio.
- Medical imaging
- Two HD modalities and an SD feed recorded together with synchronised audio.
- Webcasting and streaming
- Works with DirectShow software such as VLC and VirtualDub.
- Video walls
- In a VSN wall controller every channel appears as a source in VigiControl.
Installation and software
- The card
- PCIe x4, fits a x4, x8 or x16 slot.
- Drivers
- EMS unified Windows and Linux driver, DirectShow and the Xtreme SDK; Linux audio support is limited, so ask us first. Custom EDID can be set on each HD input.
- Adapters
- DVI-to-HDMI, DVI-to-VGA and DVI-to-component adapters are available separately.
Range and alternatives
- XtremeAV has one HD channel plus the composite input. XtremeAV-SDI swaps one HD channel for 3G-SDI.
- For four HD channels on one card, see Xtreme-HD4.
Watch the range video
XtremeAV and XtremeRGB mixed-signal capture cards
DVI, analogue RGB, composite, S-Video and SDI sources in one modern system: the nine mixed-signal cards in three groups, and where they fit.
Plays from YouTube when you press play. Watch on YouTube
| Board Format | PCIe x4 half-size plug-in card, 110mm x 170mm |
|---|---|
| Connectors | 2x DVI-I, 1x RCA (female) |
| HDMI Capture | Up to HDMI 1.3, 225MHz, deep colour, HDCP with EMS graphics cards |
| DVI Capture | DVI 1.0 RGB 24-bit up to 165MHz |
| Composite Video Capture | CCIR601 sampling, PAL/NTSC/SECAM auto-detected |
| Audio Capture | Stereo line-in/balanced, programmable gain, 16-bit @44.1/48/96kHz |
| Video Capture Memory | 256MB high-bandwidth frame buffer, triple buffered |
| OS Support | Up to Windows 10, Linux |
| Warranty | 3 years |
Do all three channels capture at the same time?
Yes. The two HD channels and the SD channel are independent and capture simultaneously.
Can it capture HDMI?
Yes, on both HD channels through DVI-to-HDMI adapters, up to 1080p60.
Does it capture audio?
Yes. HDMI embedded audio, and balanced or unbalanced analogue audio through the AM2 audio module.
Are the adapters included?
No. DVI-to-HDMI, DVI-to-VGA and DVI-to-component adapters are available separately.
What warranty does it have?
A standard 3-year warranty.
