XtremeAV Range
XtremeAV is built for projects that need to mix modern HD sources with legacy SD or analogue inputs on a single card, with full analogue and digital audio capture synchronised across every channel. It's a common fit for medical imaging suites and lecture capture rigs pairing a current HDMI/SDI camera with an older SD monitoring or document-camera feed — see XtremeAV-SDI for three-channel SDI/DVI capture or XtremeAV-HD2+ for a two-HDMI-channel layout.
Not sure which capture range fits your source signal? See our buyer's guide in the Knowledge Base.
SKU: X-HD4
Xtreme-HD4
- 8-lane PCIe Gen.3 bus
- 3.2 GB/s total capture bandwidth
- Four EMS capture processors
- Frame buffer memory: 4 × 256 MB
SKU: XAV-SDI

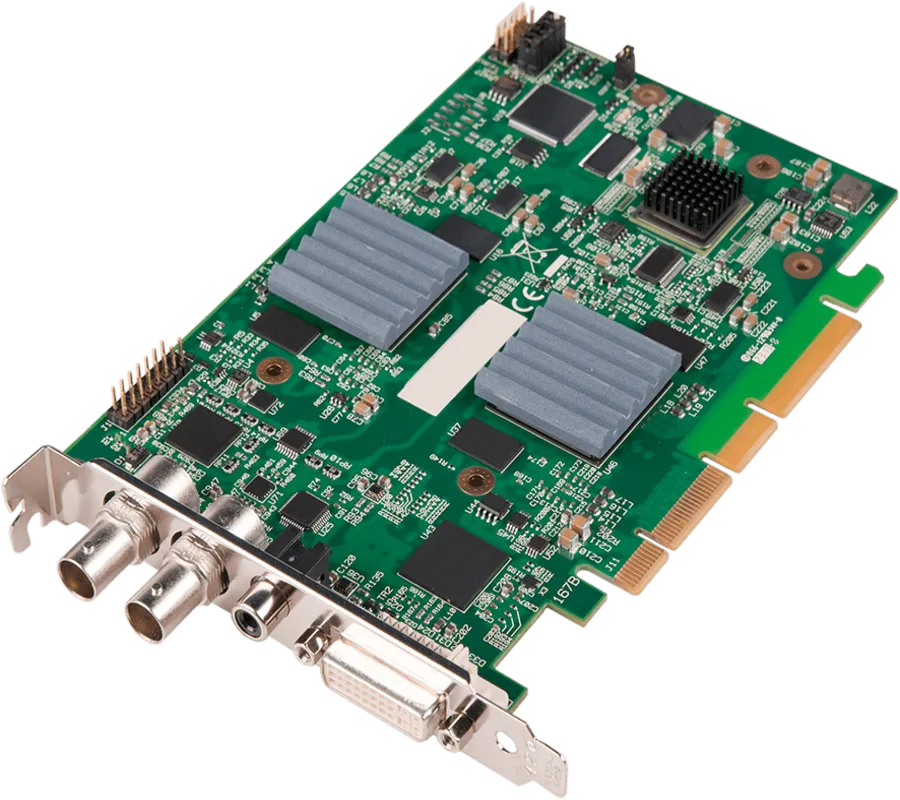

XtremeAV-SDI
- Four-lane PCIe, 1.6 GB/s total bandwidth
- Three independent capture channels
- Direct DMA to third-party graphics memory
- Full analog & digital audio support
SKU: XAV-H

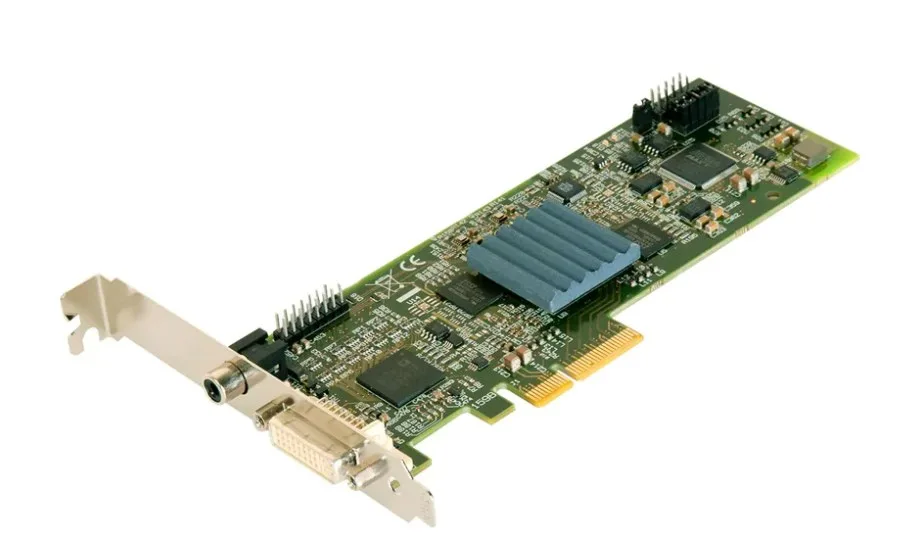

XtremeAV
- One HD channel (DVI-I: HDMI/DVI/RGB/YPbPr) + one SD composite channel, captured simultaneously
- AM2 audio module and cable included — balanced/unbalanced analogue audio capture
- Half-height PCIe x4 card, 110mm x 170mm
- Up to 4096×4096 HD capture, 1080p60, with HDCP support alongside EMS graphics cards
SKU: XAV-HD2

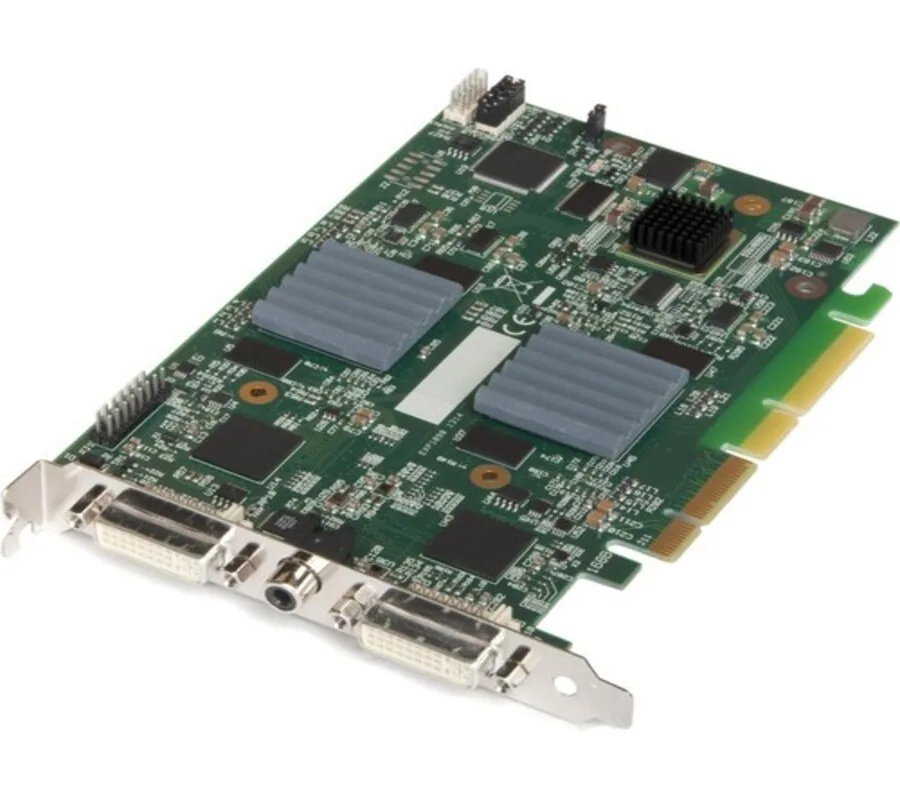

XtremeAV-HD2+
- Four-lane PCIe, 1.6 GB/s total bandwidth
- Two HD DVI channels + one composite input
- Full analogue & digital audio support
Built for the applications that can't afford to fail
Capture DVI, analogue RGB/VGA, YPbPr, composite and S-Video — the sources digital-only cards cannot take
From one channel up to eight on a single card, to save PCIe slots
Works in a single PC with the EMS unified Windows & Linux driver, or inside a VSN video wall controller
Standard 3-year warranty
Frequently Asked Questions
What's the difference between XtremeAV and XtremeRGB?
XtremeAV mixes HD and SD capture with audio on one card — for example DVI-I plus composite — and includes the quad DVI-I Xtreme-HD4. XtremeRGB covers DVI and analogue RGB capture (Ex1+, Ex2+), mixed SD plus DVI/RGB (Ex4+), eight-channel SD (Ex8) and dual SDI (SDI2).
Do I need a video wall controller?
No. Each card works in a standard PC with PCIe slots. They can also be fitted in a VSN chassis when the sources feed a video wall.
Which card for 4K60 HDMI, DisplayPort or 3G-SDI?
For current 4K60 digital sources, see the Digital Capture Cards (XtremeDV).
