iVu9s-Pro — 9-Display 4K2K
9-display 4K2K standalone controller
- ✓9 DVI outputs, 640×480 to 1920×1200, with local loop-out for monitoring
- ✓One HDMI input up to 4K2K, other inputs up to 1080p/WUXGA
- ✓PIP, side-by-side (PAP) and full-screen modes, adjustable via software
- ✓Software control through RS-232 and Ethernet
About This Product
The EMS iVu9s-Pro 9-Display 4K2K Video Wall Controller is a powerful, cost-effective, fully real-time data/video processor for multiple flat panel displays or projectors — ideal for medical image review, satellite imagery and digital signage display solutions. It can support up to 12 DVI/HDMI outputs to expand the spectrum of video wall applications; with its add-on card design, users can adjust the number of output ports for different scenarios, or cost-down/enhance the project with new I/O cards over time.
The embedded scaler converts signals from two input sources to match the native resolution of monitors, flat panels or projectors, with user-selectable output up to WUXGA (1920×1200). Each DVI output has an independently controllable display area, with image parameters and layouts automatically saved to non-volatile flash memory for later recall. Control is via RS-232 serial or Ethernet, with 7 default layouts plus one custom mode, input rotation (±90°), bezel mask/screen border adjustment for seamless multi-display alignment, and firmware upgradeable for new features.
Where This Product Fits
iVu9s-Pro suits projects needing a standalone, PC-free video wall controller for up to nine displays — medical image review stations and digital signage walls where a dedicated processor is preferred over a PCIe-card-based VSN chassis. Its add-on card design lets the display count be adjusted after installation. Where the wall needs PCIe-card-level capture/graphics flexibility instead — mixing in EMS capture and graphics cards directly — a VSNV3 chassis-based system is the better fit.
Why Choose the iVu9s-Pro — 9-Display 4K2K?
- ✓9 DVI outputs, 640×480 to 1920×1200, with local loop-out for monitoring
- ✓One HDMI input up to 4K2K, other inputs up to 1080p/WUXGA
- ✓PIP, side-by-side (PAP) and full-screen modes, adjustable via software
- ✓Software control through RS-232 and Ethernet
The iVu9s-Pro — 9-Display 4K2K is backed by EMS's UK technical support and standard 3-year warranty (5-year extended available on most of the range) — get in touch if you're not sure it's the right fit and we'll help you spec it correctly the first time.
Full Specifications

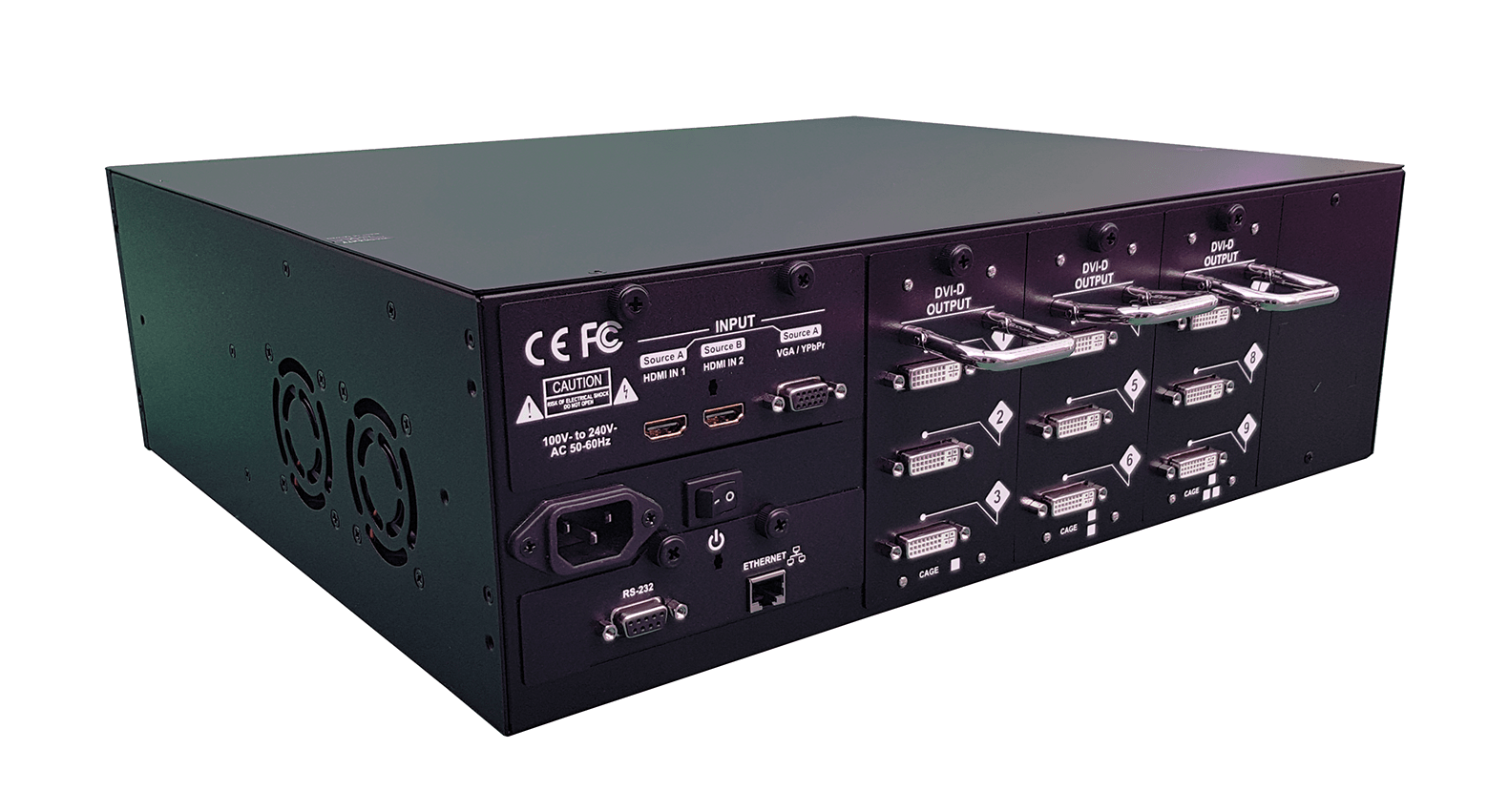

| Outputs | 9x DVI (12 on the expanded unit — contact sales), 640×480 to 1920×1200, local loop-out |
|---|---|
| Inputs | 1x HDMI up to 4K2K, others up to 1080p/WUXGA — DVI/HDMI, VGA, Component 640×480–1920×1200 |
| Display Modes | PIP, side-by-side (PAP), full screen, 7 default layouts + 1 custom |
| Video De-interlacer | Advanced, improves 480i/576i SD input |
| Control | RS-232 serial or Ethernet (device IP) |
| HDCP | Compliant |
| Form Factor | 2.5 RU, PCIe-interface add-on card design |
