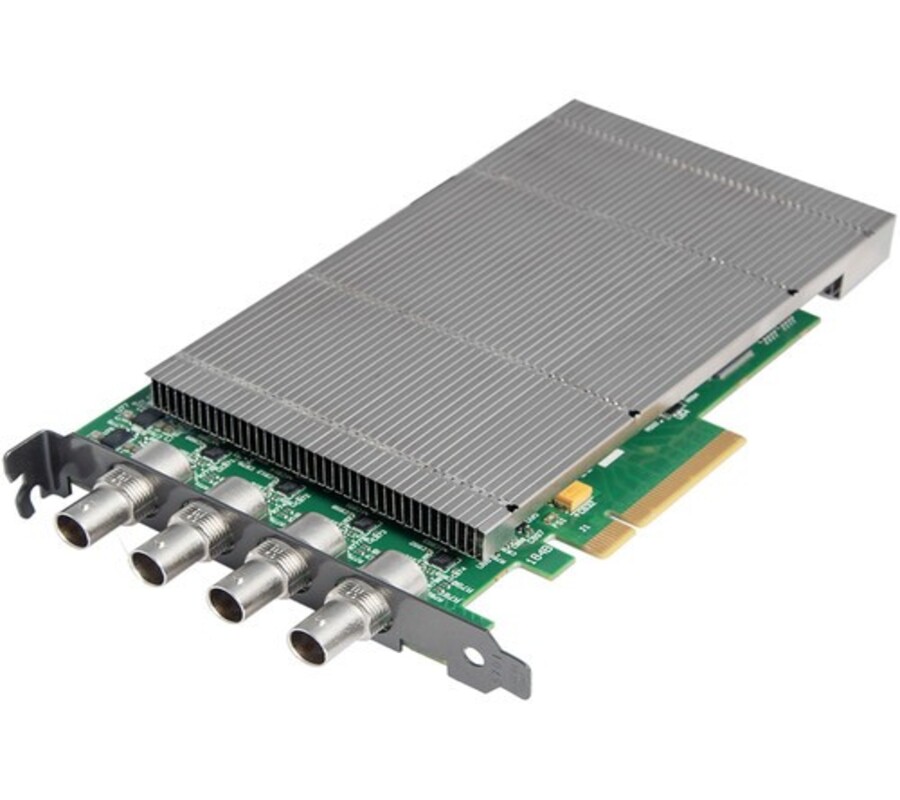

XtremeDV-SDI4
Call for Price
Four Channel 3G SDI Capture
- Four of 1920x1080p 60fps capture
- Eight lane PCIe Gen.3 interface
- Frame buffer memory – 768 MB
- Eight lane PCIe Gen.3 interface, Net 6 GB/s total capture bandwidth
- Single PCIe endpoint, allowing for more cards & captures to be placed within a single system
- Support for multi-channel audio
Ideal for use in broadcast markets or with any SDI capable applications the XtremeDVI-SDI4 provides four 3G-SDI inputs each capable of capturing 1920x1080p at 60 frames per second.
Description

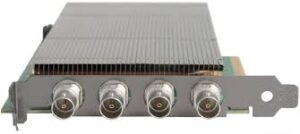

Four Channel 3G SDI Capture Card
4 Channel 3G-SDI capture, developed for capturing multiple High Definition SDI video signals, the XtremeDV-SDI4 is the perfect solution to AV professionals looking to capture from multiple SDI sources.
Ideal for use in broadcast markets or with any SDI capable applications the XtremeDV-SDI4 provides four 3G-SDI inputs each capable of capturing 1920x1080p at 60 frames per second. Each capture channel is hardware timestamped allowing for larger surfaces to be captured and stitched together.
Video Streaming
DirectShow drivers for WDM Streaming supports the following applications, to encode, record and stream video over networks or the Internet:
- Microsoft Media Encoder®
- VLC
- VirtualDub
- Any other DirectShow encoding software
For streaming applications, the XtremeDV-SDI4 can be used with Windows Media Encoder to compress and stream captured video. To replay the video, use Windows® Media Player.
Any application compatible with Windows® DirectShow technology can use the XtremeDV-SDI4 due to its built-in WDM support.
Specifications
| Board Format | PCI Express x8 plug-in card |
| Dimensions | 110m x 177mm (including heat sink) |
| Connectors | 4 x BNC Connectors |
| Maximum Capture Resolution | 2.97 Gbps capture bandwidth per channel. Provide => 4 * 1920x1080p @ 60 Hz per input |
| Frame buffer memory | 768MB |
| Input Mode Detection | Supports SMPTE - 352 Payload Identifiers |
| Sample formats | RGB: 4:4:4 (+A) YUV: 4:2:2 (+A), 4:4:4 (+A) |
| SMPTE standards | ST-259, ST-272, ST-274, ST-291, ST-292, ST-293, ST-296, ST-299, ST-352, ST-424, ST-425, ST-2048 |
| Update Rate | User defined. Captured frame rate will match the source providing max data rate (6 GB/s per channel) is not exceeded. Multi-buffered to eliminate tearing artefacts. |
| Video modes | 480i, 576i, 720p, 1080i, 1080p, 1080psF, 2048 x 1080p, 2048 x 1080psF |
| Supported frame rates | 23-98Hz, 24Hz, 25Hz, 29-97Hz, 30Hz, 50Hz, 59-94Hz &60Hz |
| Operating System Support | Windows® up to 10 |
| Power Requirements | Max current at +3.3 - 0.45A (TBC) Max current at +12V - 0.85A (TBC) Max power ≈ 18W (TBC) |
| Operating Temperature | 0 to 35 °C/ 32 to 96 °F |
| Storage Temperature | -20 to 70 °C/ -4 to 158 °F |
| Relative Humidity | 5% to 90% non-condensing |
| Warranty | 3 years |
