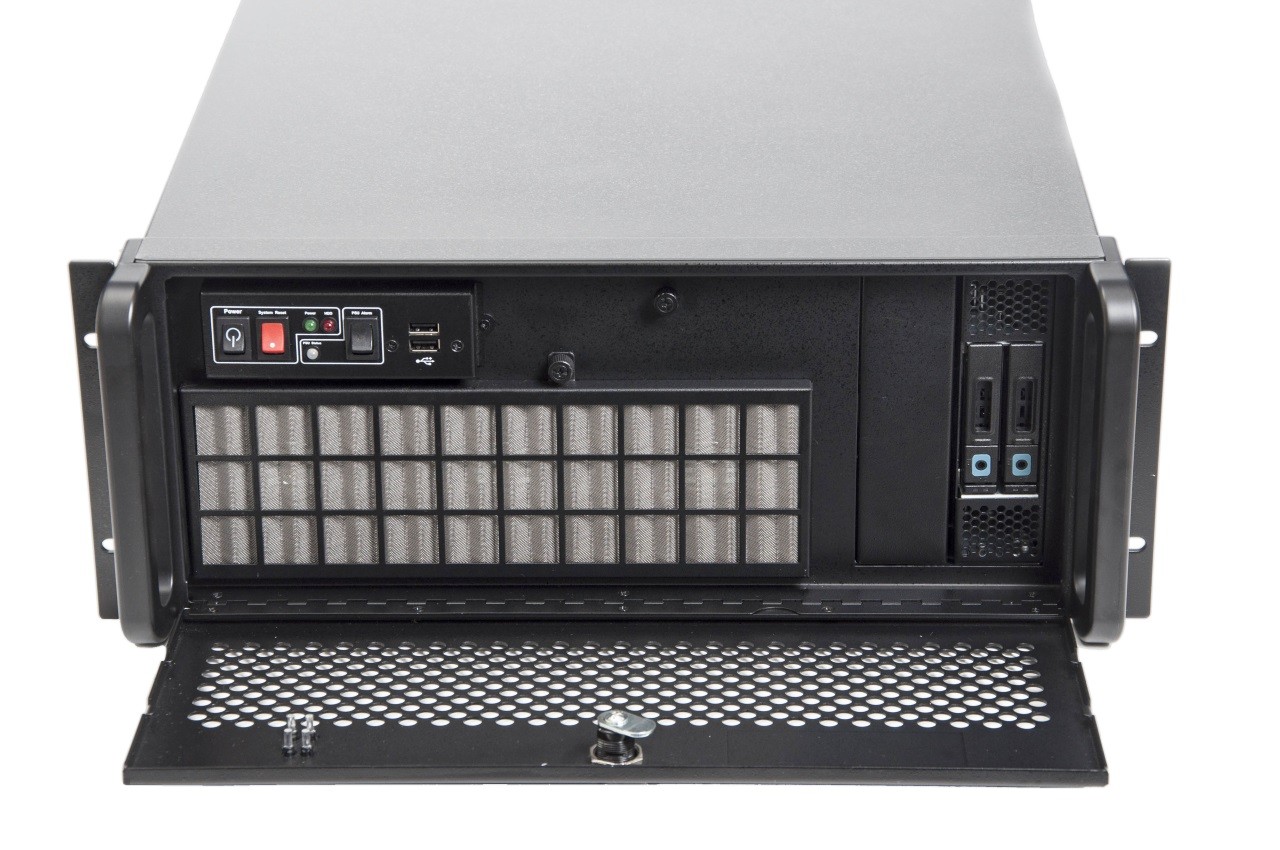

XtremeIPC-VSN-9 Series

VSN 9 Series
Designed for environments that demand high performance and reliability the VSN 9 series systems have been redesigned to provide users more memory, the latest processors and enhanced performance.
With improved design the systems run cooler and quieter than the previous models.

Description

Advanced Graphics Display Technology

EMS’s 9 slot video wall controllers for environments that demand XtremeIPC-VSN-9 Series.
The VSN 9 Series systems provide solutions for mission control rooms, military installations, logistic operations, security suites and many other command and control applications.

The VSN range has been developed to support, Image graphics and decoding cards. This allows physical and IP video sources to be displayed medium and large-scale video walls.
Operators have the freedom to see any source on or multiple screen layouts.

Each system in the range of 2nd generation VSNs is only available with Windows 10 to ensure the highest performance available.

Faster Processing. Advanced Cooling

The VSN range of industrial PCs 9 slot PCIe backplane. The switched fabric technology provides high bandwidth Gen3 PCIe slots.
Each slot is capable of delivering high resolution bandwidth from a range of capture cards to multiple outputs.

The VSN range is highly customisable. The systems contain either 7th generation Intel® Corei7, E3 Xeon or dual E5 Xeon processors (see Specification tab).
Systems are available with either 240GB or 480GB SSD drives and up to 32GB of memory.

In order to maximise airflow, the 4U chassis has been custom designed to allow more air into the system. This keeps temperatures low and reduces fan noise.

Ultra-Reliable

VSN video wall controllers have been designed for use in demanding control room environments.
Each component has been rigorously tested to ensure high levels of performance and reliability.
For added peace of mind, systems can be pre-installed with Wall Monitor software.

Wall Monitor is an application that warns operators if a system begins to function outside of normal parameters.
Alarms can be set to indicate changes in voltage and temperature.

This allows users to closely monitor system temperatures and be alerted should a system temperature critical levels.
The ability to create custom alerts means users can ensure operational system temperatures in a variety of environments.

Fully Featured VigiControl 10

The EMS VSN 9 Series is compatible with EMS’s VigiControl 10 software. VigiControl 10 allows users to quickly and easily place video sources anywhere on the video wall.
Common arrangements can be saved as layouts for recall at any time and any section of the wall can contain “carousels” of videos playing one after the other at definable intervals.

Administrators of VigiControl 10 are able to configure a single system to drive multiple walls. Each of these walls can be assigned a number of user roles, and each user role can
allow different access to sources, local videos, layouts and templates. *

Now With DDCT

All of EMS’s award-winning video wall controllers are now supplied with the Display Driver Configuration Tool (DCCT) software pre-installed.
The wizard allows users to easily configure video walls and get started in minutes

Extra Protection With Spares Kits And Extended Warranty Services

For additional security and peace of mind, our customers are invited to take advantage of EMS’s spares kits and extended warranty.
For a small premium, selected products can be protected by our spares kits and optional 5 year warranty. For more information please contact our sales team.

Specifications

Model Options

Product CodeVSN1172VSN1182VSN1192
MotherboardPortwell ROBO8113-Q170Portwell ROBO8113-C236Advantech PCE-9228G2
ProcessorIntel Core i7Intel E3 XeonDual E5 Xeon (E5-2618L v3)
Memory32GB as standard32GB as standard64GB (Upgrade option: 128GB)



VSN11 Series Chassis Specifications

EthernetDual 10Base-T/ 100Base-TX/ 1000 BaseT
RS232For control
On-board GraphicsHDMI & DisplayPort for control screen (VGA for VSN1192)
Hot swappable SSD2 x 240GB (Upgrade Option: 2 x 480GB SSD)
USB
  • 2 x 3.0 (back panel)
  • 6 x 2.0 (2 front, 2 back, 2 internal)
Operating SystemWindows 10 LTSB
Backplane Features3rd generation PCIe switched fabric with

  • 11 slot x8 – 8GB/s uplink and downlink
Power800 Watt Hot Swappable RPSU Dual Redundant
Operating temp0 to 35°C (32 to 95°F)
Storage temp-20 to 70°C (-4 to 158°F)
Relative Humidity5% to 90% non-condensing
Noise48.6dB (A) up to 67.9dB (A) (Dependent on system config & ambient temp)
Dimensions500mm(l) x 175mm(h) x 482.1mm(w)
Weight19 – 25kg (Shipped 30-33kg)
ComplianceCE/ ROHS/ UL/CCC

Expansion Chassis For The VSN11 Series Video Wall Controller Models:

Product CodeDescription
VSN1100X-RPSUExpansion chassis with 800 Watt RSPU, SLink-G3, HLink-G3, ExCable-G3

We are continuously developing the technology used within our product ranges delivering outstanding innovative solutions, therefore the specification may change from time to time.

DownLoads



For Datasheets, User Manuals, Software & Drivers; Download Here
