EMS Video Wall Controller's & Video Capture (PCIe & USB 3) Technology

About Us

Welcome to EMS Imaging & Graphics Technology

Electronic Modular Solutions, a global visual technology company, with products designed and developed in the U.K for visualization solutions for a variety of selected professional & diverse markets: for business, entertainment, and industry, including control rooms, health care, defense & aerospace, digital cinema, media & entertainment and simulation & virtual reality.

In these markets EMS offers cost-effective, user-friendly imaging products that optimize productivity and business efficiency. Its innovative hard- and software solutions integrate all aspects of imaging & graphics, e.g. from image capture/acquisition and to image/video wall display and management .... Read More

Video Wall Controllers

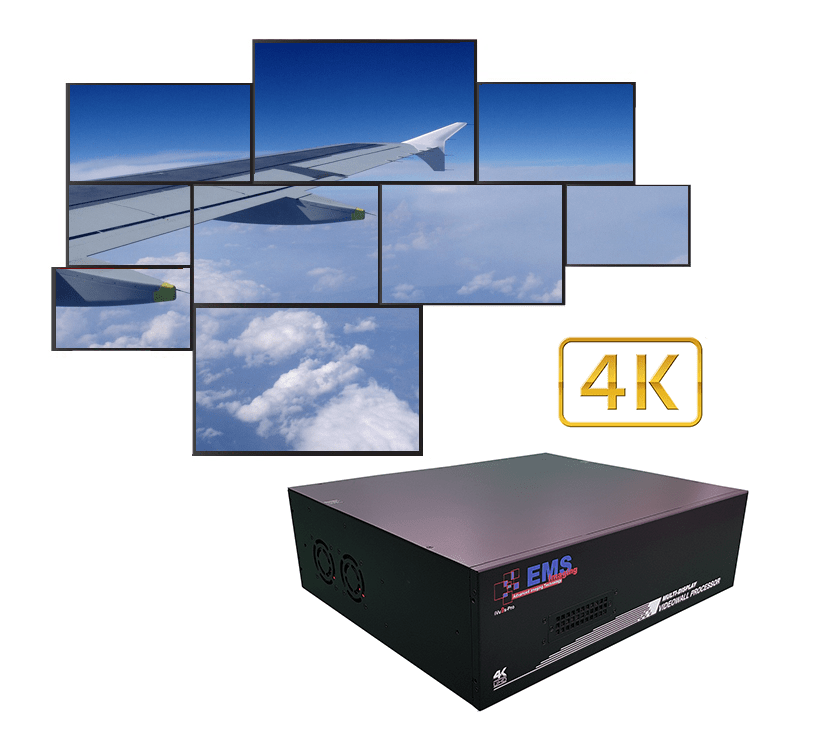

EMS offers a range of Video wall controllers, or Multi-Screen display controllers.

3x3screens ivu9s.png

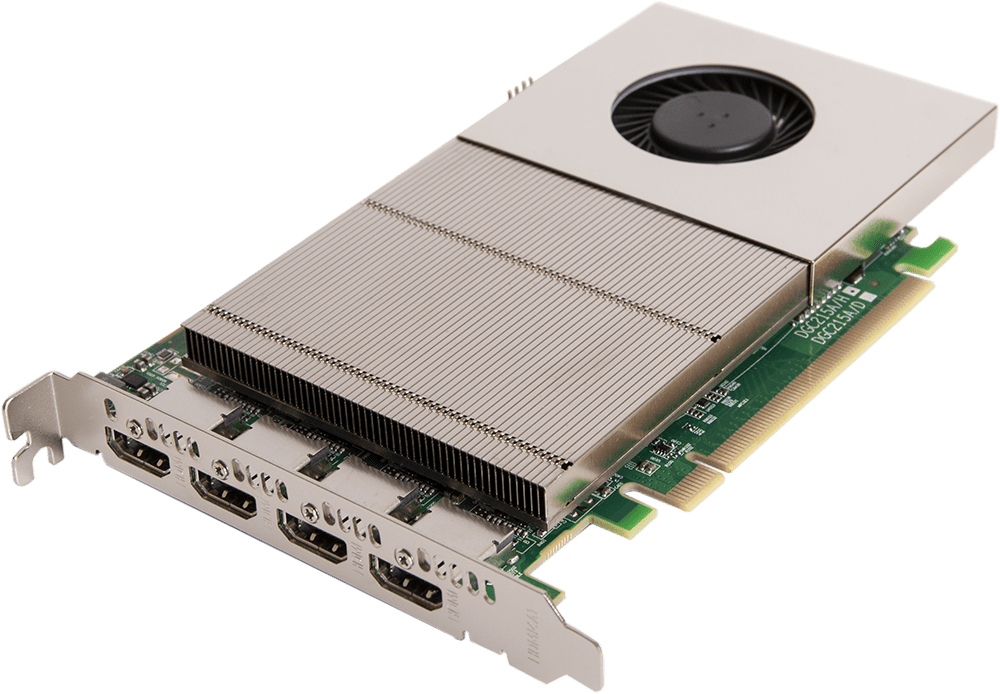

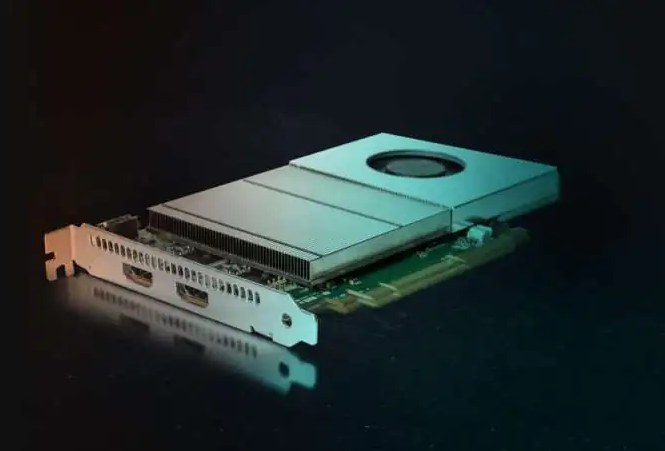

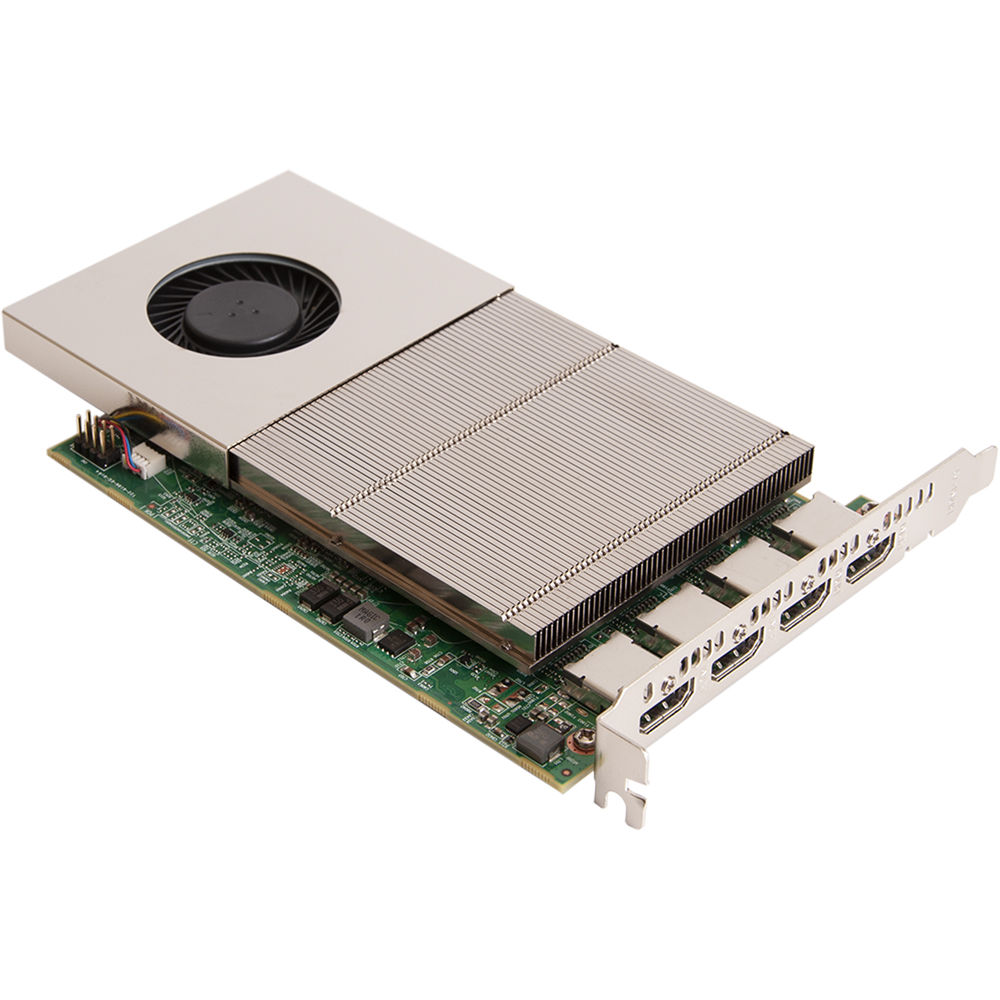

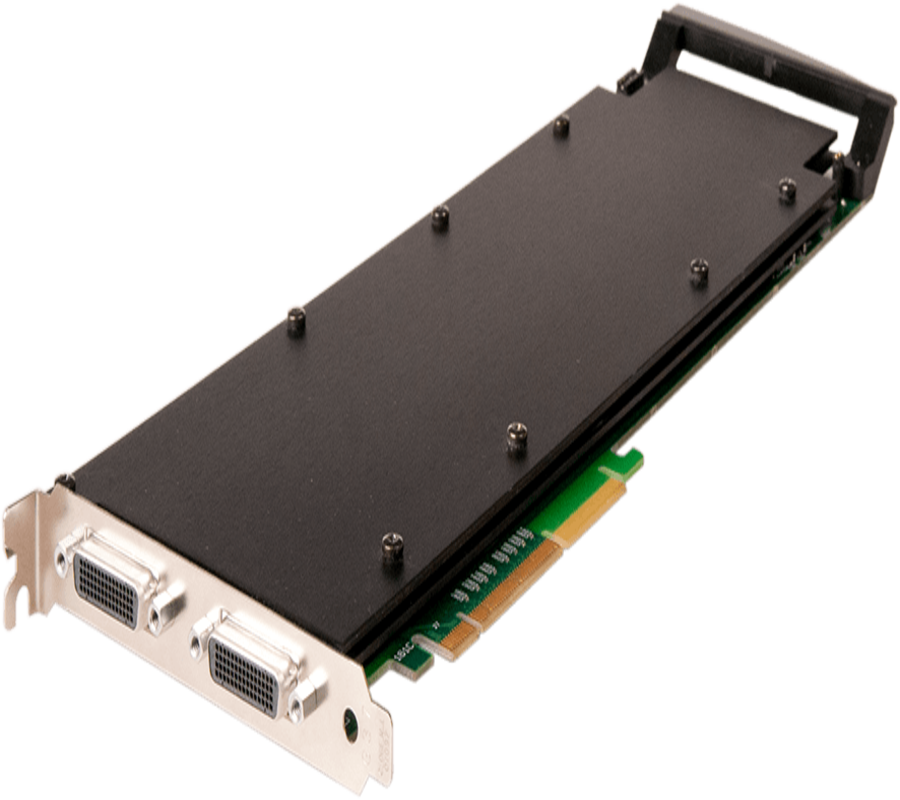

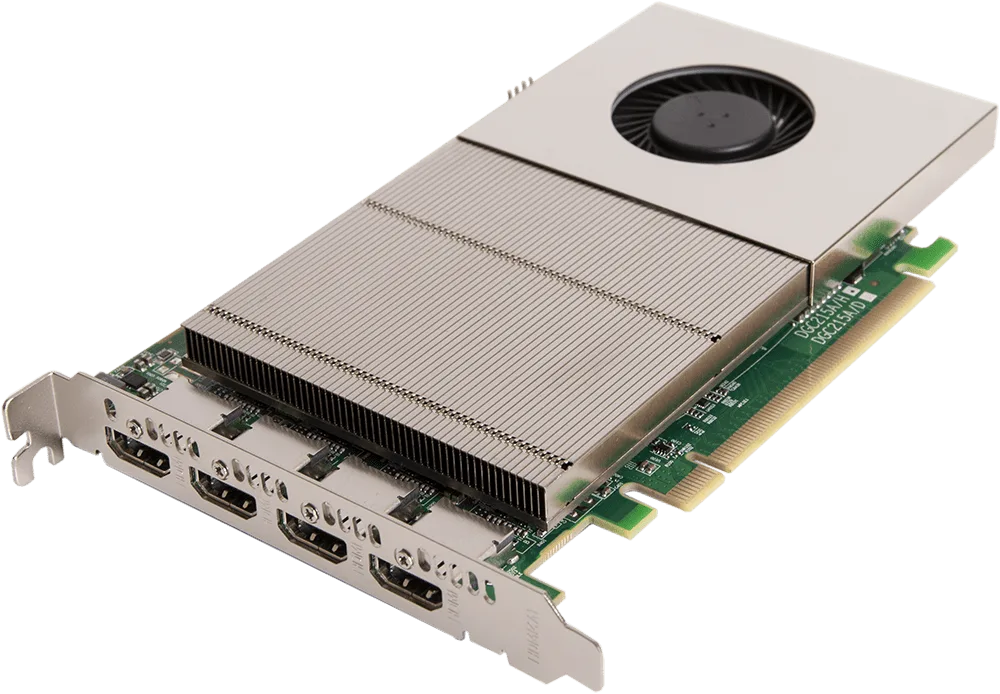

We offer a range of PCIe cards with extremely hi-resolution per screen and support for up to 64 screens in any rectangular or irregular display wall.

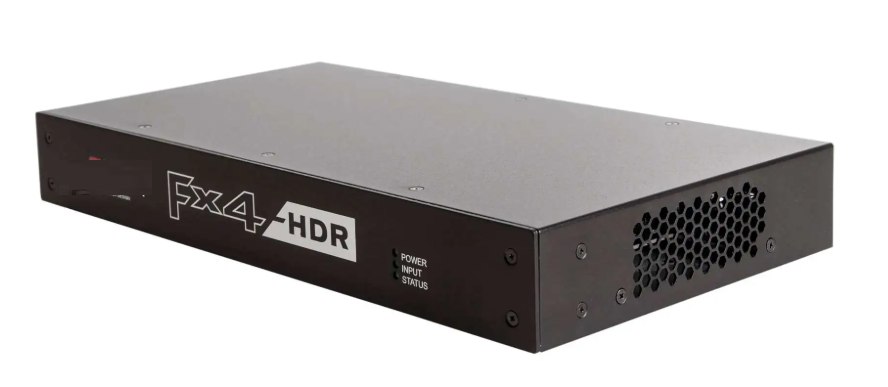

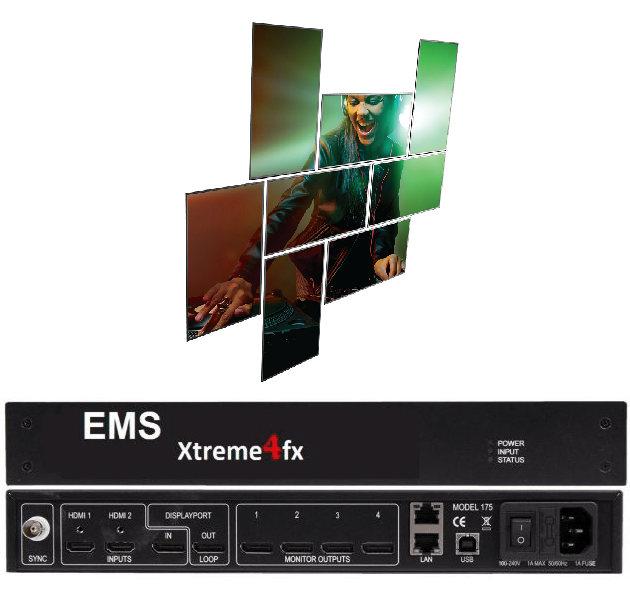

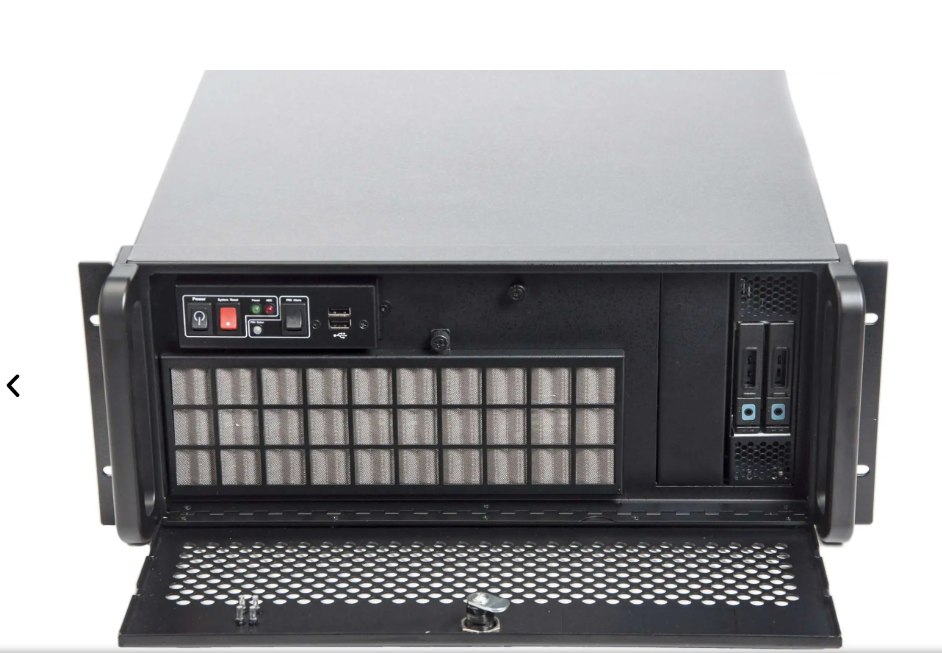

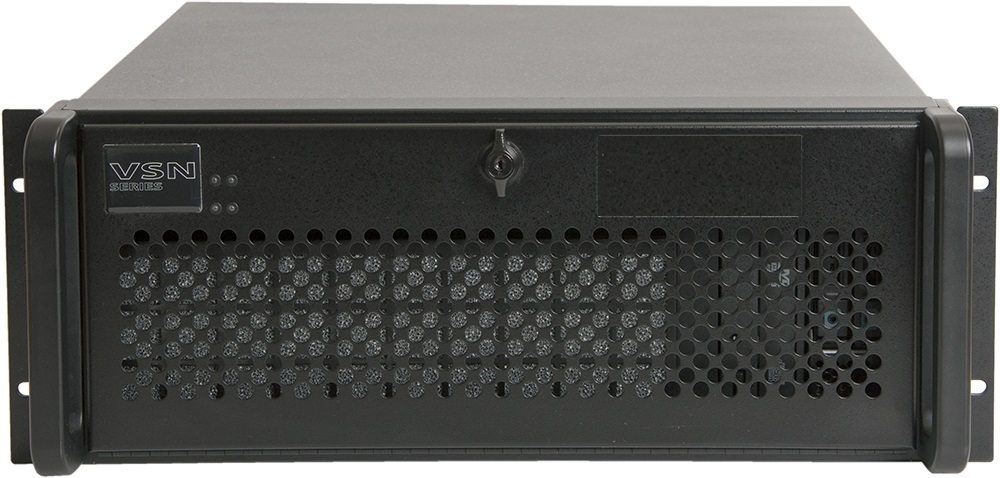

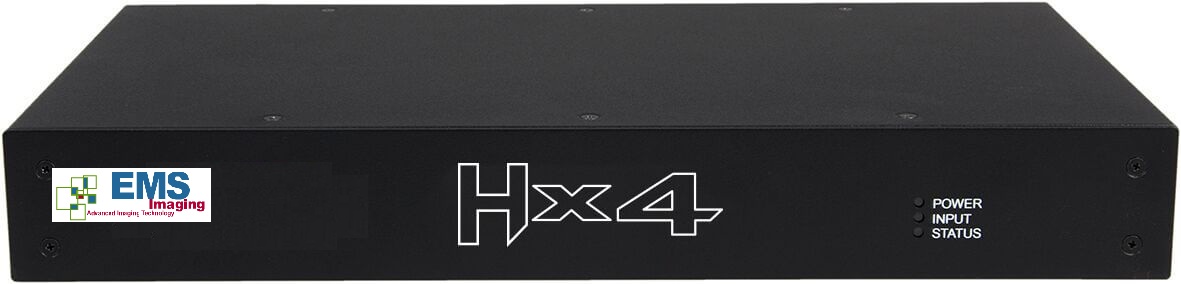

We also supply support for stand-alone display wall controllers, these controllers can simply connect to HDMI or DVI sources and provide a video/data wall in little or no time at at all.

The EMS XtremeVision is also compatible with the XtremeRGB range of capture cards for systems requiring SD, HD, RGB or DVI video overlays & windows can be positioned and sized anywhere on the multi display.
imagedp4-main.pngUsing the XtremeRGB range of capture cards combined with the XtremeVision, high end display/data wall systems can be constructed supporting up to 40 displays with 128 SD windows and 32 HD/RGB/DVI windows.

Typical applications include:

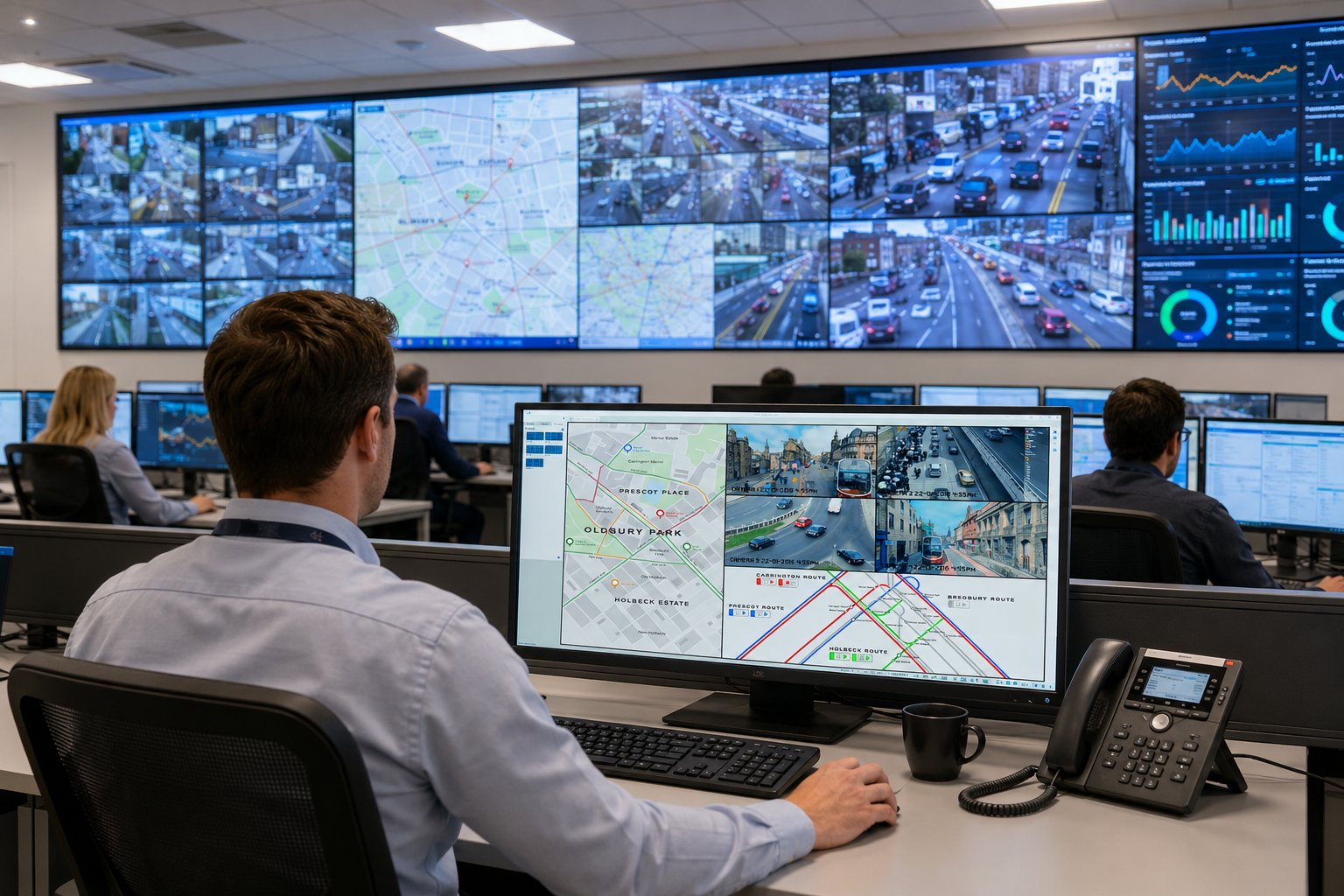

  • Command/Control

  • Education/Computing

  • Healthcare

  • Retail/Trading

  • Security/Surveillance

  • Broadcast/Streaming

  • Case Studies

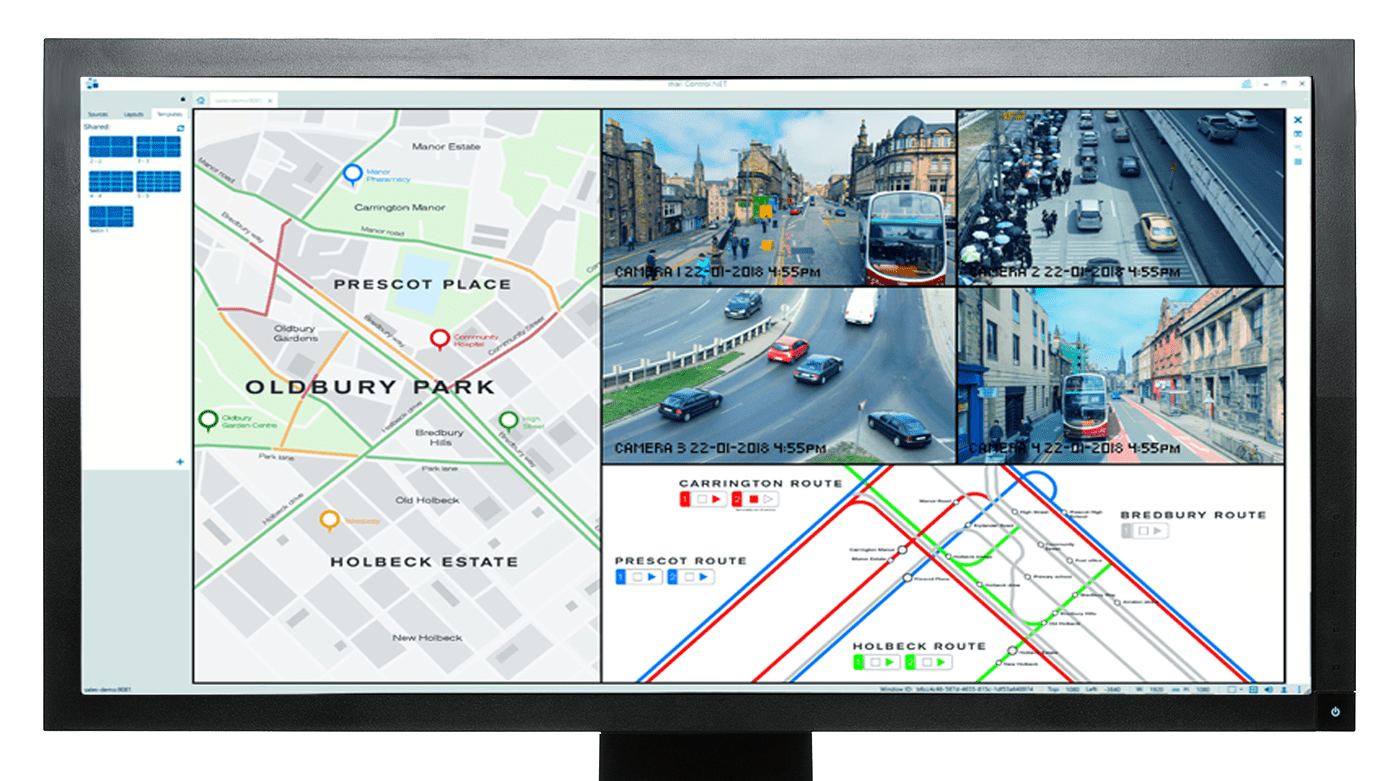

  • Application/Software

video wall2.jpg

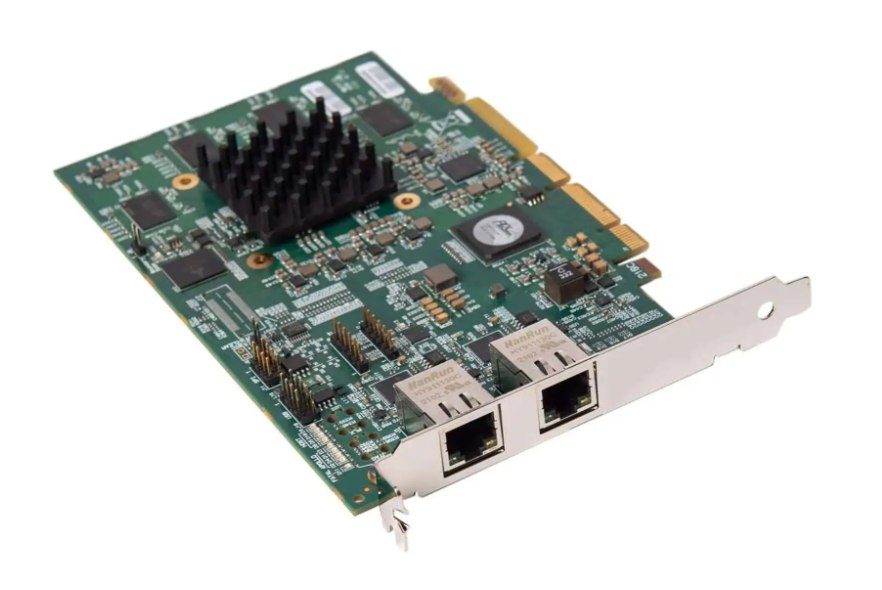

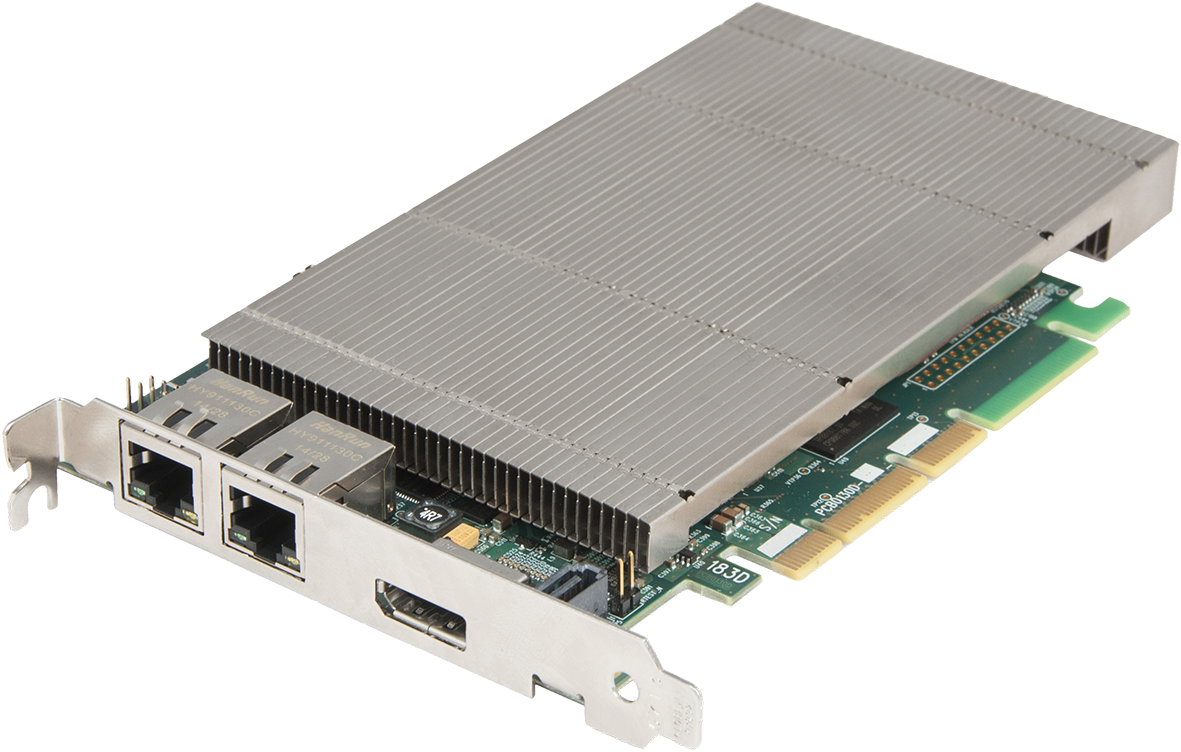

Video Capture Cards

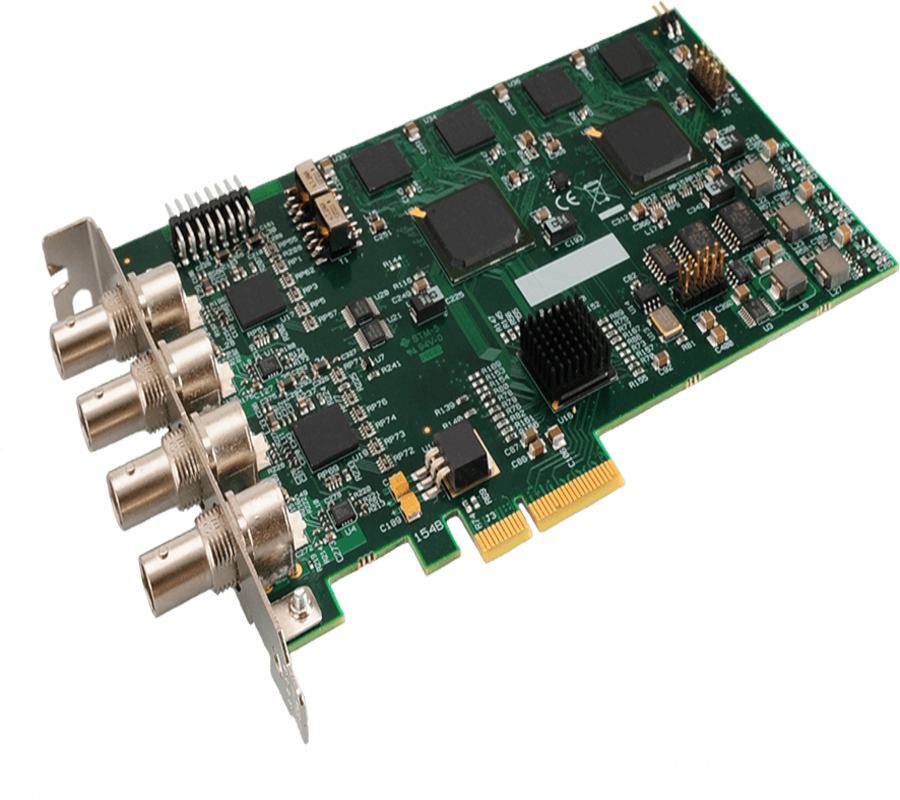

EMS frame grabbers or video capture cards are used in most applications where video signal needs to be recorded or streamed. As an example they are used for capturing and recording a radar or a simulator screen, or recording product presentations or visualization and archiving medical equipment. They are used as a input device for digital video recording and/or streaming.

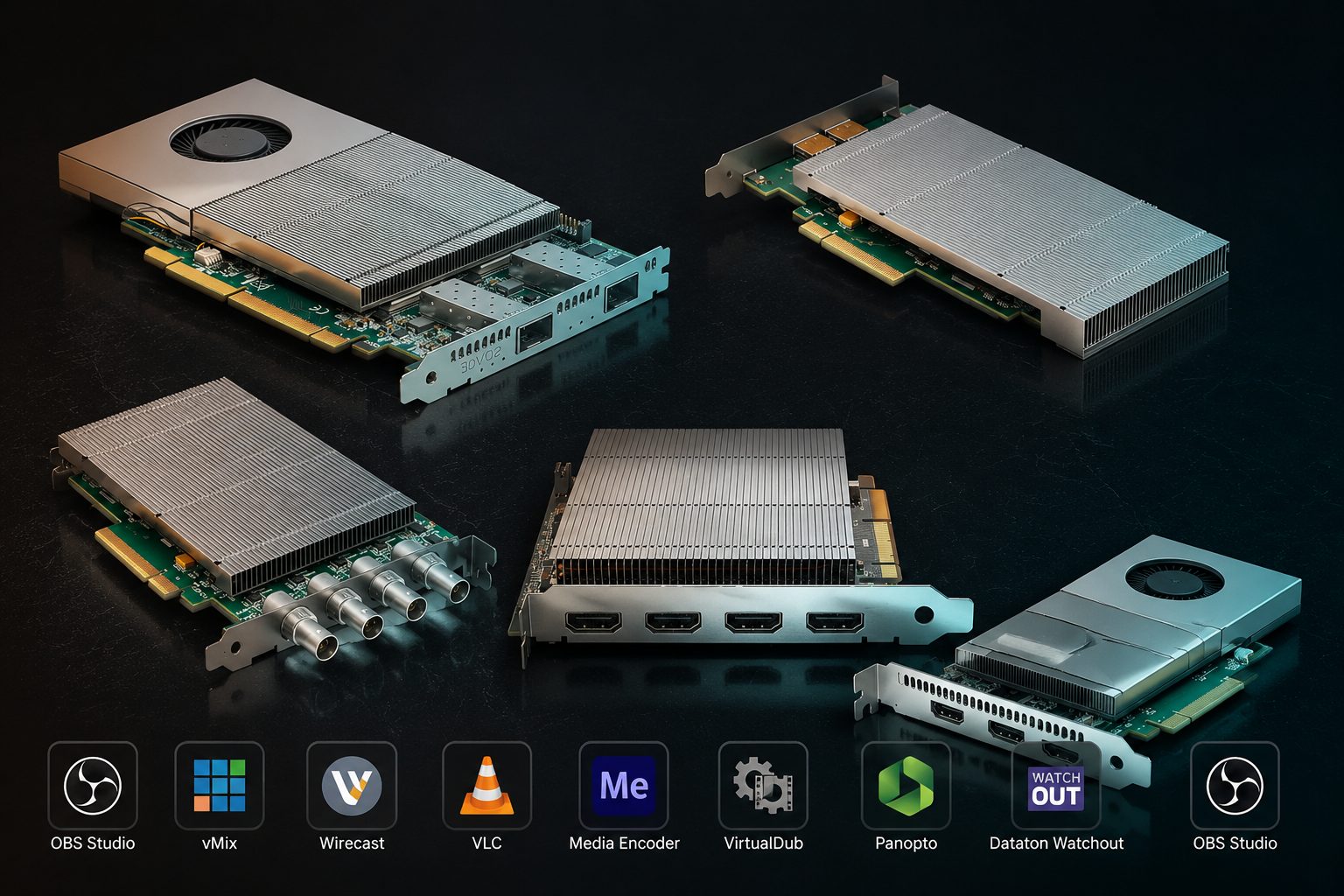

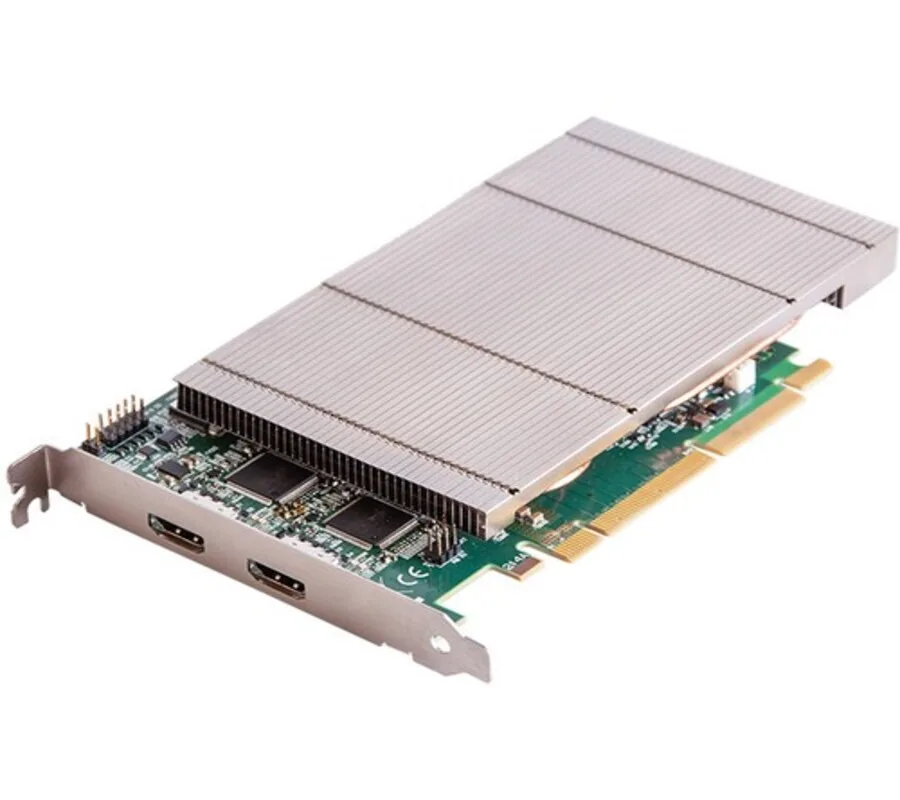

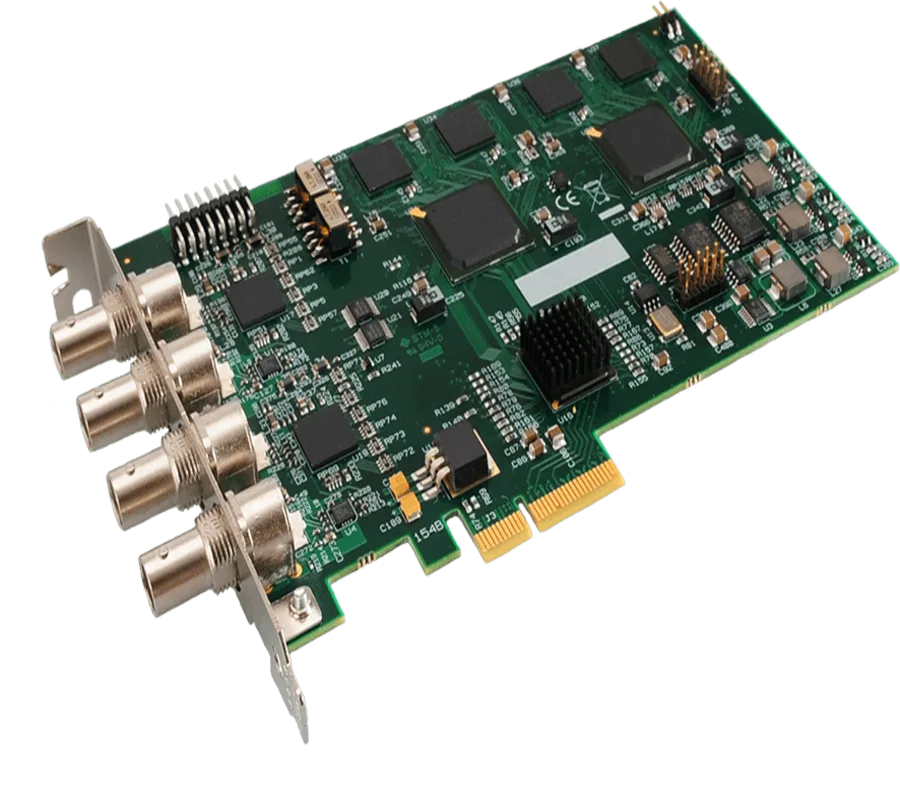

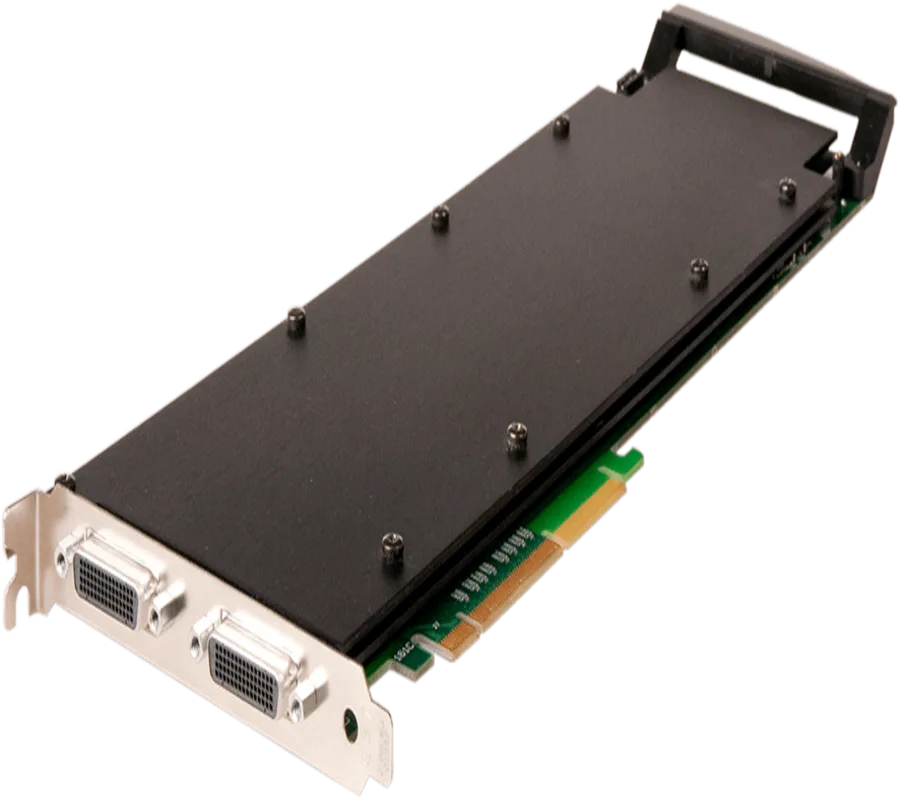

EMS product range includes a wide range of PCIe video captu
re cards for HDMI, DVI, Single-Link and Dual-Link, SD-SDI, HD-SDI and 3G-SDI, VGA, RGB, Component, and Composite.
By using standard Windows capturing applications such as Media Encoder, VirtualDub or VideoLAN, you simply need to install the board, the supplied device driver also downloadable from our downloads page, re-boot the system and then the capture cards are ready to be used for capturing, displaying, recording or streaming right away.

If you need the capture facility within your own developed application then you can use our SDK
or DirectX SDK from Microsoft and implement any special function according to your application need. We include various sample application code to speed the development along, software support as well as hardware support is available from us to help you along the way.

USB Devices

New to the range is our USB3.0 based mobile unit for notebooks/laptops with a USB 3.0 interface, this unit also captures 1x HDMI, DVI, VGA and up to 4x Composite inputs.

The new inclusion to our selection is our USB 3.0 video capture dongles and Plus Family that allows you to take images from your laptop, notebooks, and any other device with a USB 3.0 interface. It can capture images from 4k ultra HD, HDMI, DVI-I, SDI, VGA, and Composite PAL/NTSC.


With these video grabbers, you can capture and record simulator screens, product presentations, and other visual data, which you can then stream or display.
usb-capture-hdmi-plus-banner-card1.png  usb-capture-dvi-plus-banner-card.png  usb-capture-sdi-plus-banner-card1.png

Our Support Team

supportEMS Technical Support Team.
Our support team has a vast amount of experience to provide a high level of support and service, covering all our products from the video capture cards to the multi display wall controllers. Contact our team with any questions you may have. During the support process you may be asked by our support staff to carry out certain tasks and procedures to assist them in solving your problems.

Click here to get in touch.
