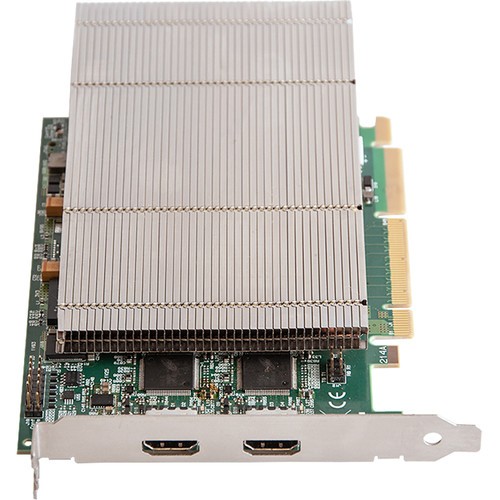

XtremeDV-UHD2
Call for Price
Dual HDMI 2.0 Video Capture Card
- Two independent HDMI 2.0 capture channels
- Eight lane PCIe Gen.3 interface, Net 6 GB/s total capture bandwidth
- 2 GB Frame Buffer Memory
- Full 10-bit processing pipeline
- Up to 8K by 8K resolutions
- Built for the highest density systems supporting multiple inputs
- Full support of the Vision Performance Feature set
- EMS unified Windows® and Linux® driver
AV integrators demand the highest resolution video offering both detail and colour accuracy when creating the most stunning visual displays. From command and control rooms to reception areas, collaboration environments and digital signage applications, the XtremeDV-UHD2 ensures the very best quality and ultimate customer satisfaction.
Description
AV integrators demand the highest resolution video offering both detail and colour accuracy when creating the most stunning visual displays. From command and control rooms to reception areas, collaboration the very best quality and ultimate customer satisfaction.
Providing two HDMI 2.0 capture channels with HDCP 2.2 at 4K60p with full 4:4:4 colour sampling, the XtremeDV-UHD2 compliments our hugely successful XtremeDV capture card family and offers unparalleled performance in frame grabber technology.
XtremeDV Performance Features
The XtremeDV-UHD2 is supported by the EMS Vision Performance Driver. Features include: EMS LiveStream for a single line of capture latency, MultiStream for multiple capture instances, hardware timestamping, HDMI signal conditioning supporting longer cable runs, automatic fast & reliable mode detection, frame synchronised ganging of inputs (dual 4K into 8K x 2K), flexible onboard Colour Space Converter plus a whole lot more.
An advanced hardware scaling engine with polyphase multi-tap filter also provides superb antialiasing performance when downscaling and smoother transitions when upscaling.
Proven and Reliable SDK
Built for the future, EMS continues to maintain and support its RGBEasy SDK for application developers as well as offering a Microsoft DirectShow interface based on the AV Stream framework. Inputs can be accessed by any DirectShow or Media Foundation applications including:
- Microsoft Media Encoder
- VLC
- Telestream WireCast
- vMix
- VidBlaster
- OBS Project
- Adobe Flash Media Encoder
- Dataton Watchout
A Video for Linux (V4L) driver package is also
available for download.
Compatibility
The XtremeDV-UHD2 is supported by the following operating syste,s: Linux, Windows® XP, Windows Vista, Windows Server 2003, Windows Server 2008, Windows 7, Windows 8/8.1 and Windows 10.
EMS SDK is included for software developers
Specifications
Board Format | PCIe x8 plug-in card |
Connectors | Dual HDMI 2.0 |
Max Capture Rate | 600MHz TMDS ClockMax capture surface of 8k x 8k* |
Dimensions | 110mm a 177mm (incl heat sink) |
Frame buffer | 2GB |
Input mode detection | Automatic |
Pixel transfer formats | RGB10: (10bit), 8-8-8 (24/32), 5-6-5, 5-5-5, 8-bit mono Y410 (10bit), 4:2:2, YUY2, UYVY, YVYU. Planar Modes:NV12, YV12 |
Colour Spaces | BT2020, BT709, BT601 with selectable limited and full range encoding. |
Update Rate | Captured frame rate will match the source providing PCle bandwidth is not exceeded. |
Video Standard | HDMI 2.0, HDMI 1.4, HDMI 1.3 |
Operating System | Windows 8/10, Windows 7, Windows XP, Windows Server 2008, Windows Vista, Windows Server 2003 |
Power Requirements | Max current at +3.3V - 1.0A Max current at +12V - 1.6A Max power ≈ 22W |
Operating Temperature | 0 to 35 °C (32 to 96 °F) |
Storage Temperature | -20 to 70°C / -4 to 158°F |
Relative Humidity | 5% to 90% non-condensing |
Warranty | 3 years |
Accessories
MODELS AVAILABLE
Order Code: XtremeDV-UHD2
Dual HDMI 2.0 capture card
