Whether you're looking for a video capture solution for streaming, recording or presentation applications, the Xtreme range has a solution to suit your needs. Supporting HDMI, DisplayPort, single or dual-link DVI, 3G-SDI, HD-SDI, RGB, Component YPbPr, Composite video and S-Video — from 4K capture down to small profile cards — the range is ideal for Medical, Broadcast, Defence and Security markets.

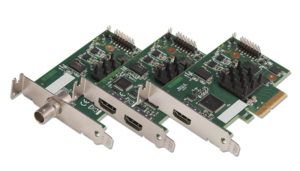

Three EMS PCIe video capture cards — HDMI, SDI and DVI variants

All Video Capture Cards XtremeDV Range XtremeAV Range XtremeRGB Range XtremeLC Range IP Streaming Decoding

Xtreme-ActiveSQX

SKU: ACTIVE-SQX

Xtreme-ActiveSQX

Dedicated IP decoding card

Dual RJ45 Ethernet ports
On-board SQX decoding engine
800 Mb/s from each Ethernet input
Up to three 4096×2160p @ 30fps streams

View Details →

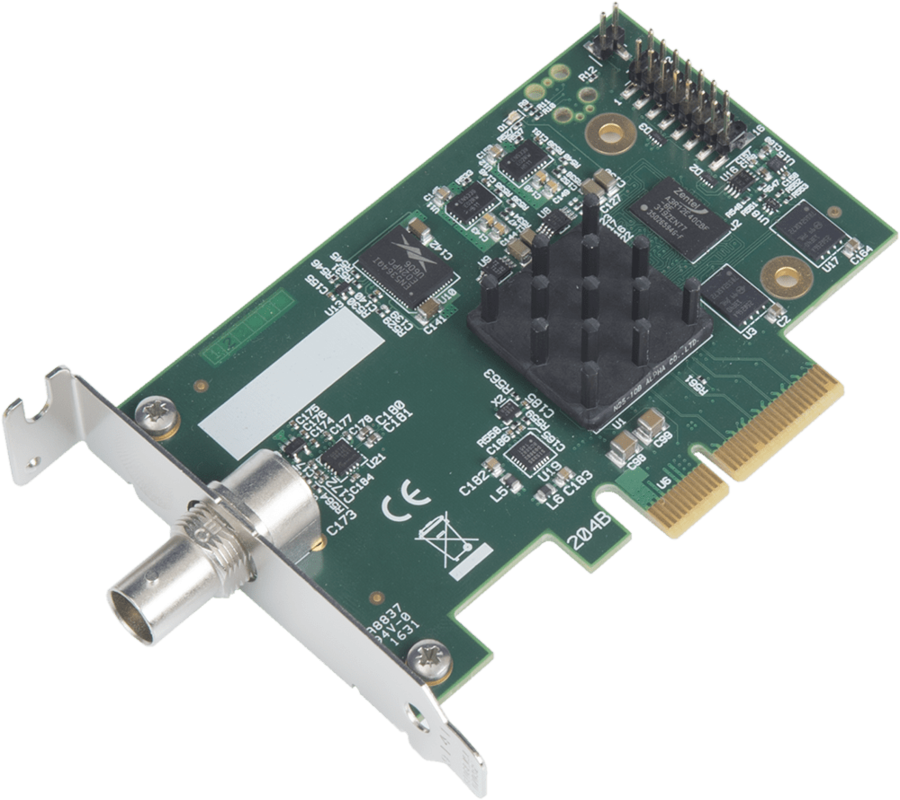

XtremeLC-SDI

SKU: XLC-SDI

XtremeLC-SDI

Single Channel SDI Capture Card

Single SDI capture channel
SD / HD / 3G at 60fps
800 MB/s DMA bandwidth
High performance up/down scaling

View Details →

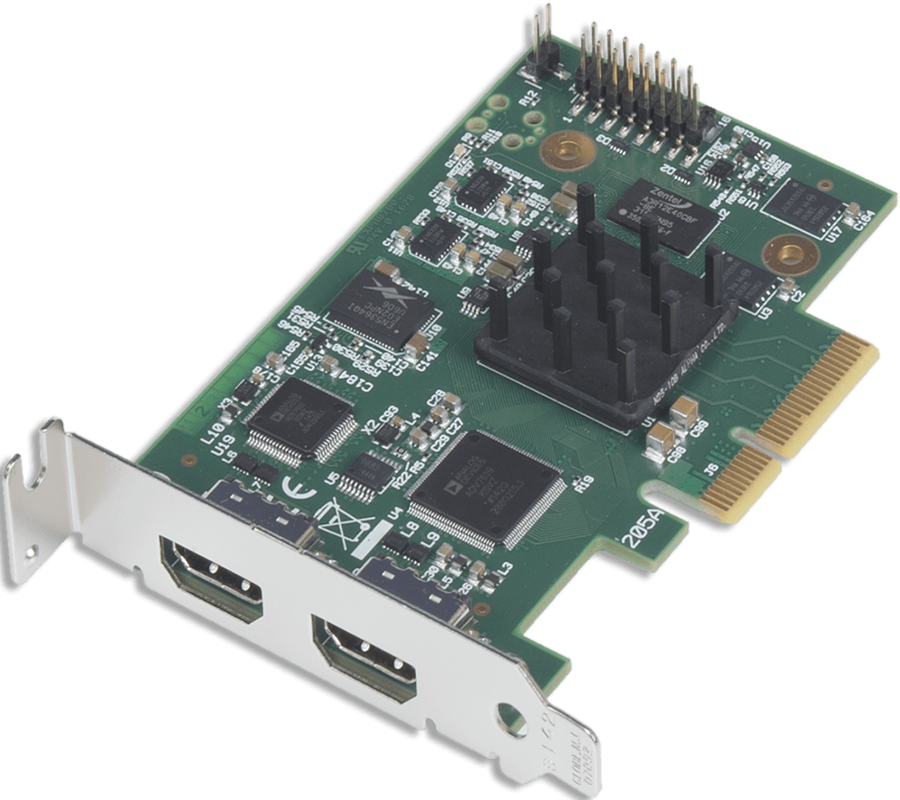

XtremeLC-HD2

SKU: XLC-HD2

XtremeLC-HD2

Dual Channel HDMI Capture Card

1.6 GB/s total DMA bandwidth
High performance up/down scaling
Colour space conversion to any output format
PCI Express Gen 2 x4 low profile

View Details →

XtremeLC-HD

SKU: XLC-HD

XtremeLC-HD

Single-Channel LiveStream Capture Card

Up to 297 Mpixel/s clock — 4096×2160p @ 30fps
800 MB/s DMA bandwidth
High performance up/down scaling
Colour space conversion to output formats

View Details →

XtremeRGB-SDI2

SKU: XRGB-SDI2

XtremeRGB-SDI2

Dual channel 3G/HD/SD capture card

Loop-through SDI BNC connections
All 3G/HD/SD modes up to 1080p60
Dual channel PCIe capture
Four-lane PCIe, up to 650 MB/s

View Details →

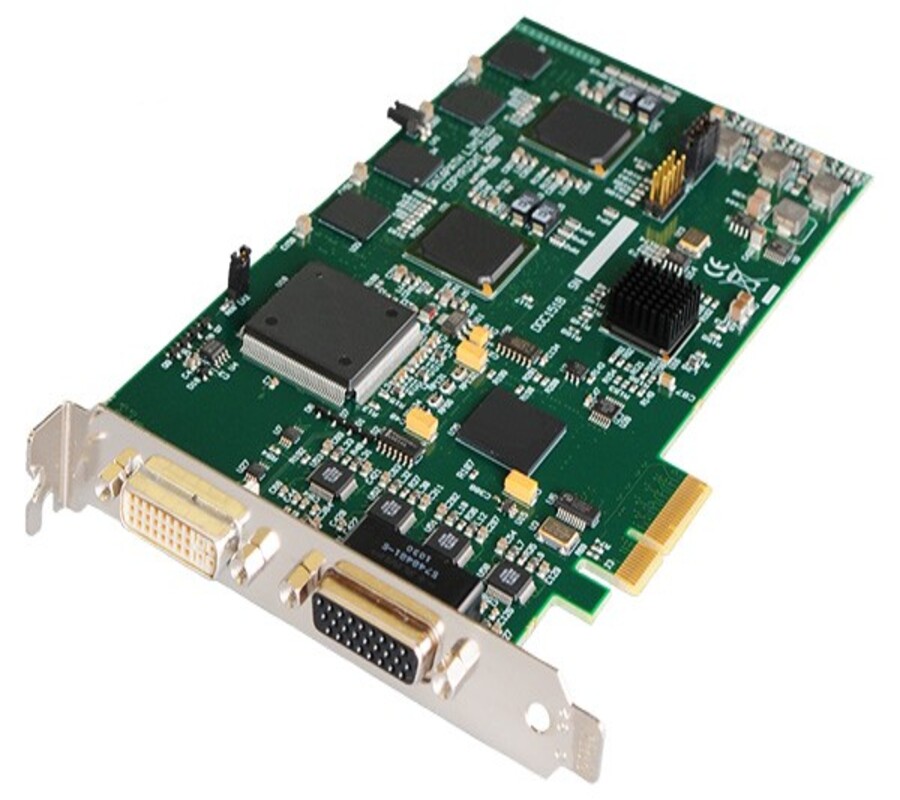

XtremeRGB-Ex4+

SKU: XRGB-EX4

XtremeRGB-Ex4+

Four channel SD + 1 channel DVI/HD/RGB capture card

HD via supplied DVI/Component or DVI/HDMI adapter
Four SD channels — PAL/NTSC/SECAM, composite or S-Video
Four-lane PCIe, up to 650 MB/s
Windows & Linux support

View Details →

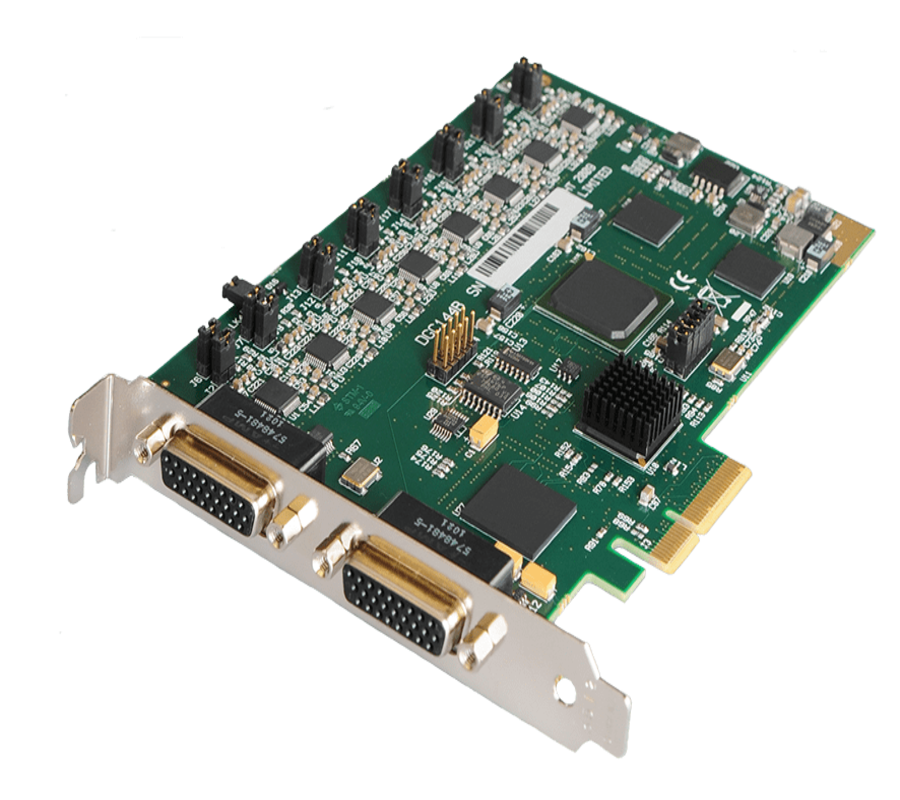

XtremeRGB-Ex8

SKU: XRGB-EX8

XtremeRGB-Ex8

Eight channel SD capture card

High performance DMA with scatter-gather
On-board processor for real-time mode/sync detection
PAL, NTSC, SECAM, composite and S-Video
Dynamic input source selection

View Details →

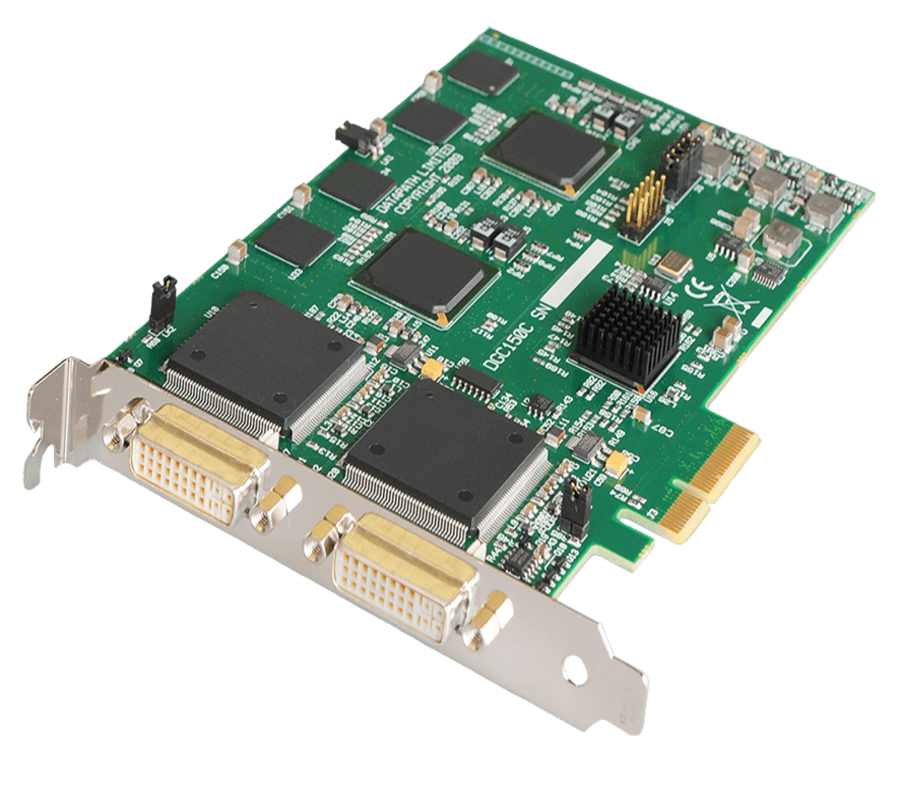

XtremeRGB-Ex2+

SKU: XRGB-EX2

XtremeRGB-Ex2+

Dual channel DVI/HD/RGB capture card

High performance DMA, direct-to-graphics-memory option
On-board processor, real-time mode/sink detection
Dynamic input source selection, admin mode
HD up to 1080p60; DVI up to 1920×1200

View Details →

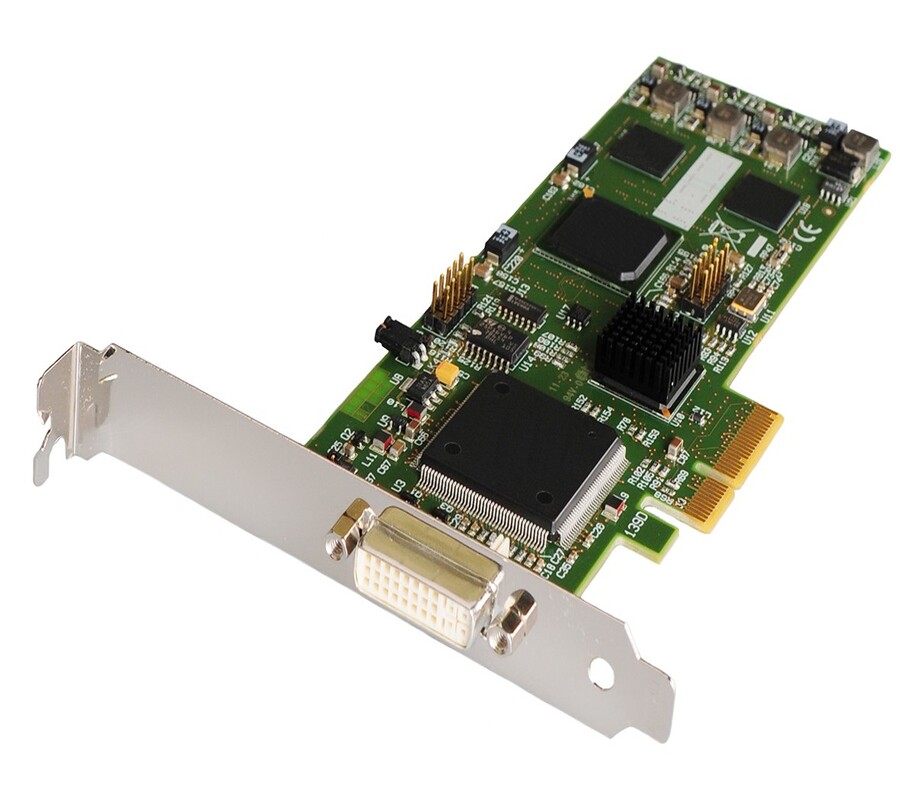

XtremeRGB-Ex1+

SKU: XRGB-EX1

XtremeRGB-Ex1+

Single channel DVI/RGB analog capture card

Four-lane PCIe, up to 650 MB/s
On-card processor, real-time mode/sink detection
Up to 32 capture channels across multiple cards
Analog RGB up to 2048×1536 x24bit

View Details →

Xtreme-HD4

SKU: X-HD4

Xtreme-HD4

Quad Channel DVI-I Capture Card

8-lane PCIe Gen.3 bus
3.2 GB/s total capture bandwidth
Four EMS capture processors
Frame buffer memory: 4 × 256 MB

View Details →

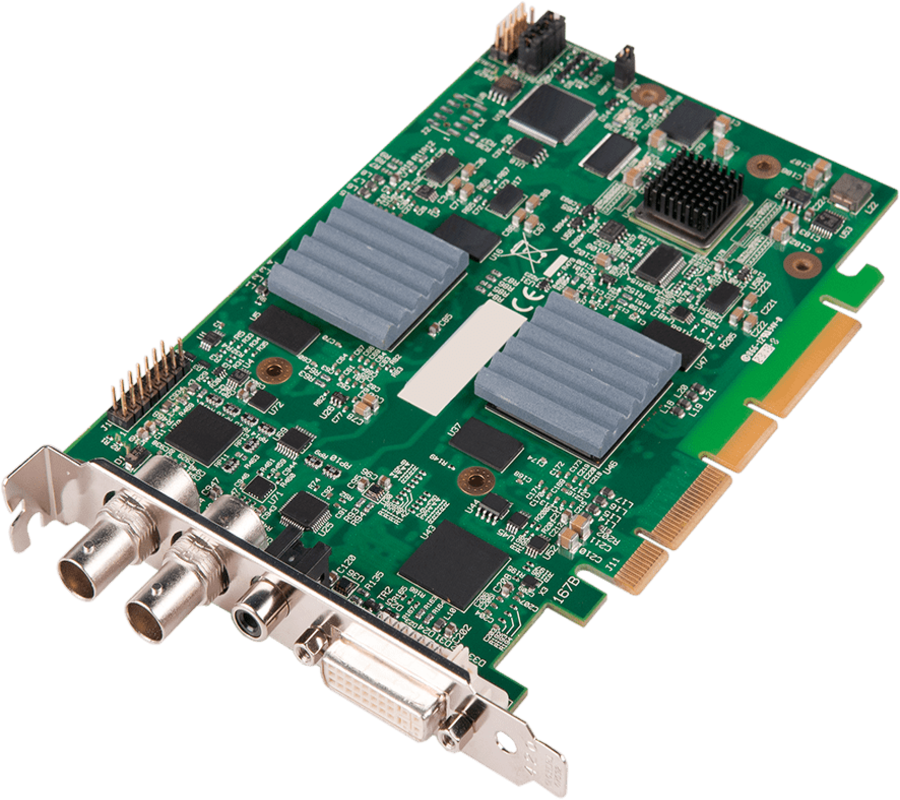

XtremeAV-SDI

SKU: XAV-SDI

XtremeAV-SDI

Three Channel Video Capture Card

Four-lane PCIe, 1.6 GB/s total bandwidth
Three independent capture channels
Direct DMA to third-party graphics memory
Full analog & digital audio support

View Details →

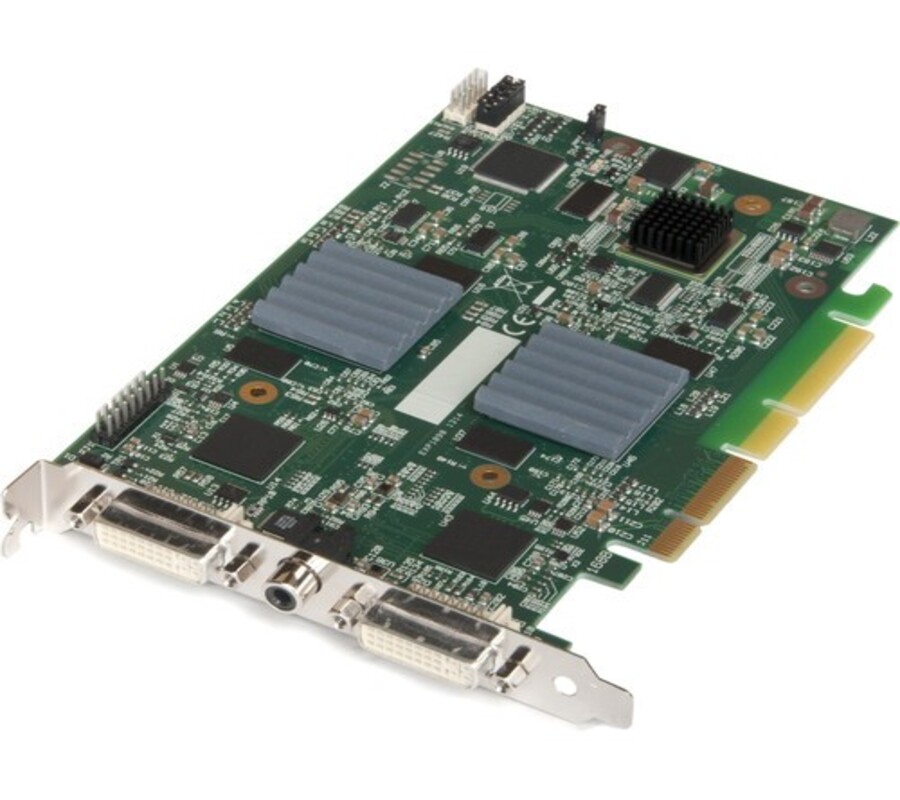

XtremeAV-HD2+

SKU: XAV-HD2

XtremeAV-HD2+

Two Channel Video Capture Card

Four-lane PCIe, 1.6 GB/s total bandwidth
Two HD DVI channels + one composite input
Full analogue & digital audio support

View Details →

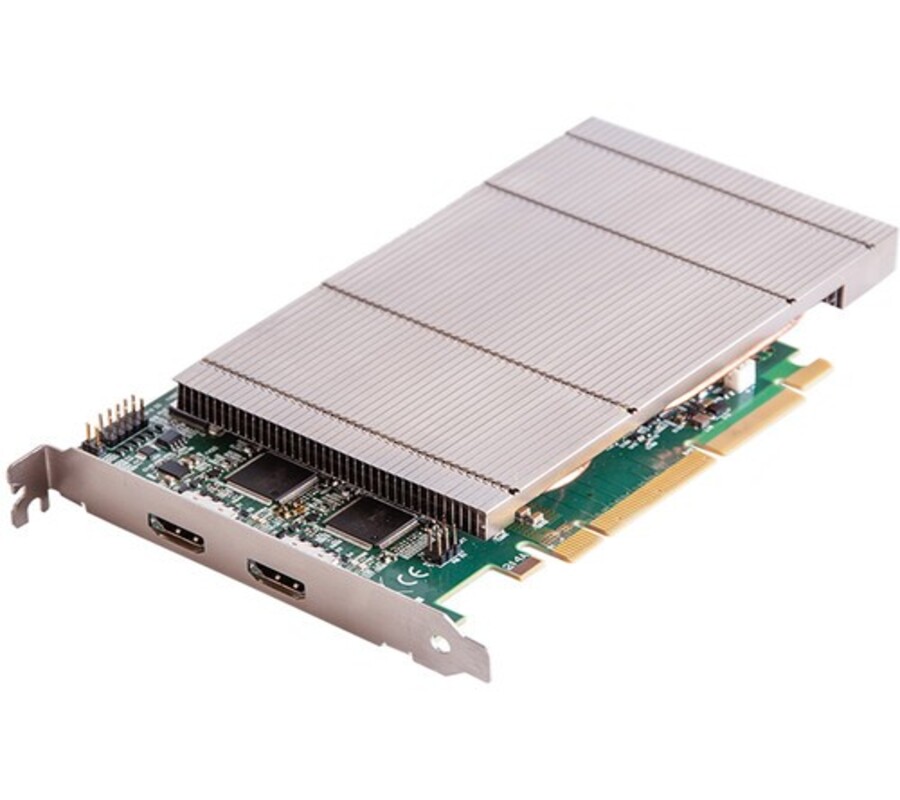

XtremeDV-UHD2

SKU: XDV-UHD2

XtremeDV-UHD2

Dual HDMI 2.0 Video Capture Card

Two independent HDMI 2.0 channels, 4K60 with 4:4:4 chroma sampling
Eight-lane PCIe Gen.3 interface, net 6GB/s total capture bandwidth
2GB frame buffer memory
Full 10-bit processing pipeline

View Details →

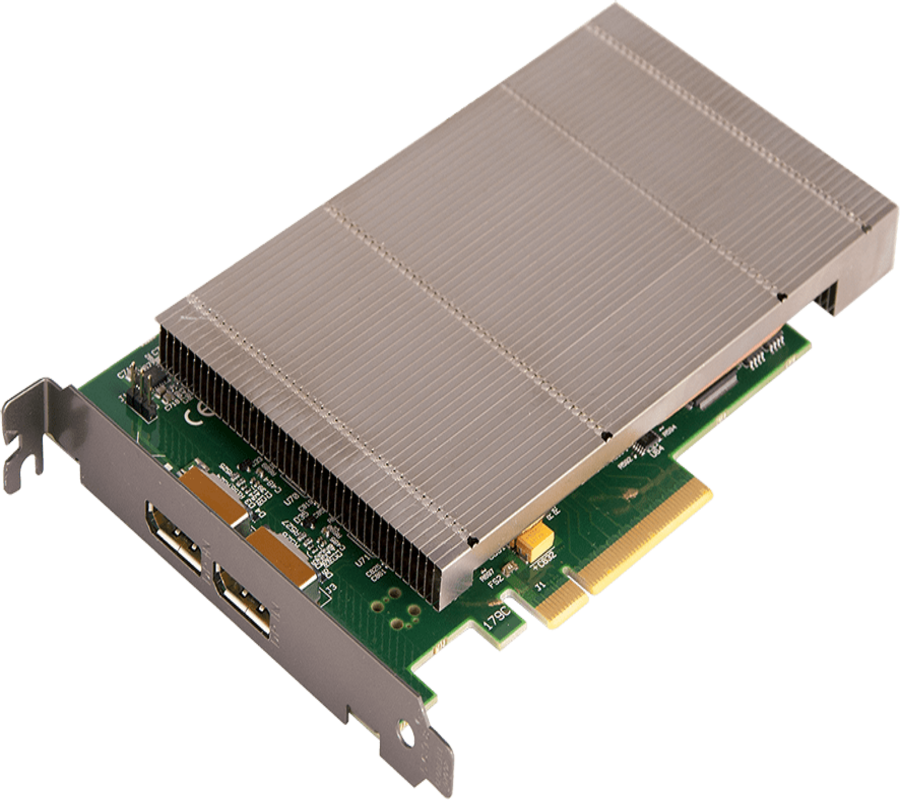

XtremeDV-DP2

SKU: XDV-DP2

XtremeDV-DP2

Dual DisplayPort 1.2 Video Capture Card

Two independent DisplayPort 1.2 capture channels
Eight-lane PCIe Gen.3 interface, net 6GB/s total capture bandwidth
768MB frame buffer memory
HDCP support with EMS graphics cards

View Details →

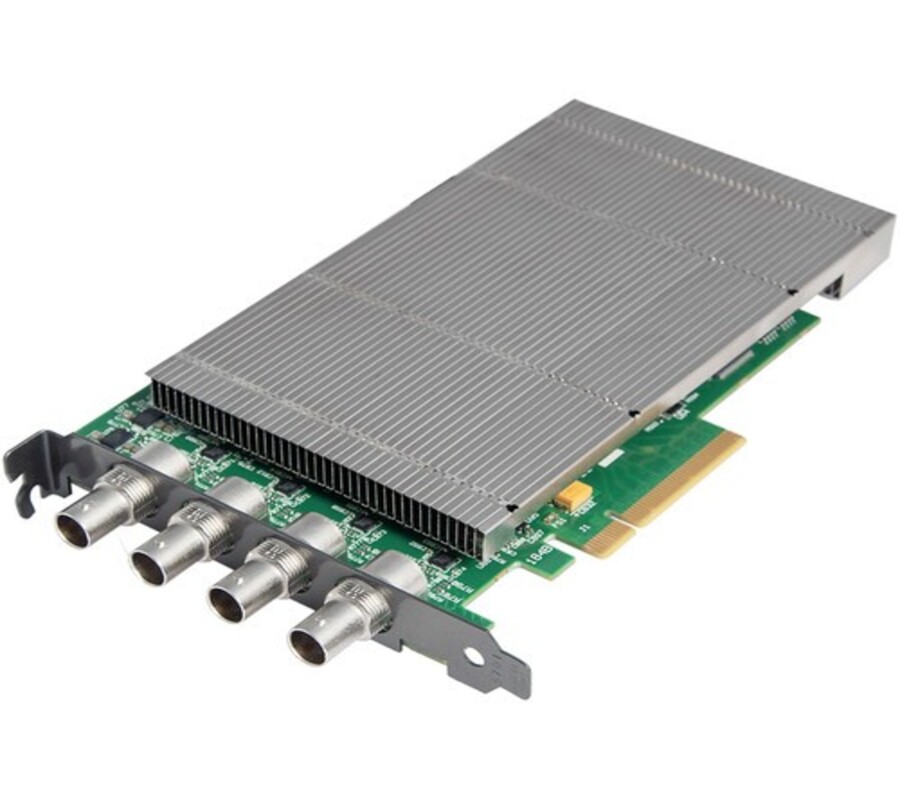

XtremeDV-SDI4

SKU: XDV-SDI4

XtremeDV-SDI4

Four Channel 3G-SDI Capture Card

Four independent 3G-SDI capture channels
Four channels of 1920×1080p @60fps capture
Eight-lane PCIe Gen.3 interface, net 6GB/s total capture bandwidth
768MB frame buffer memory

View Details →

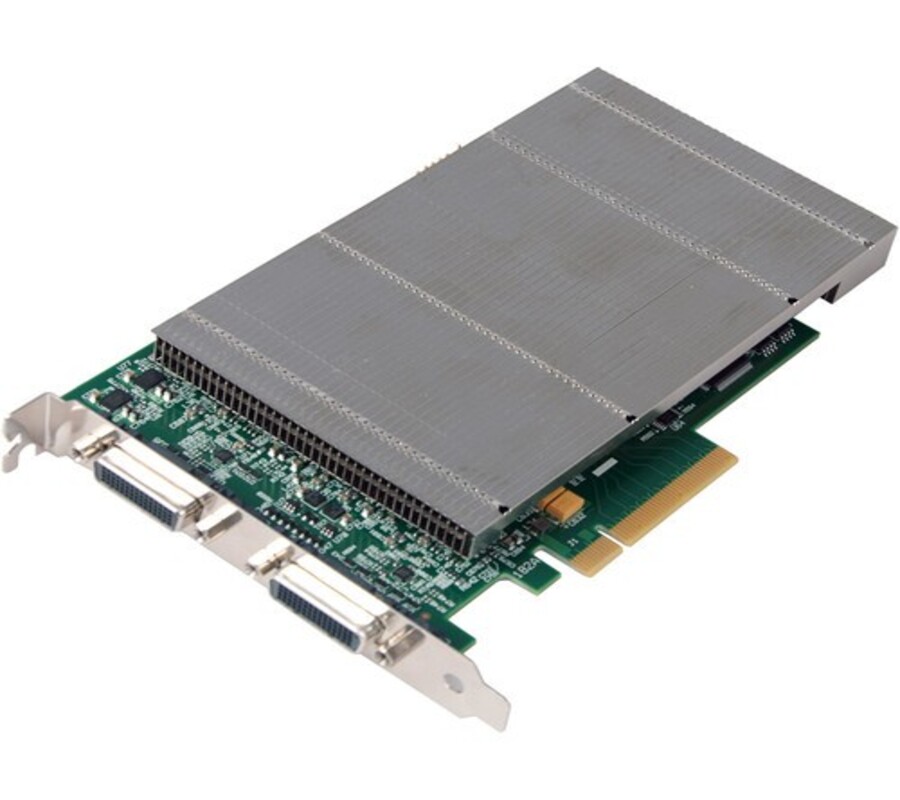

XtremeDV-HD4+

SKU: XDV-HD4

XtremeDV-HD4+

Four Channel HDMI Capture Card

Four independent HDMI 1.4 capture channels
Two channels at 297MHz — 3840×2160p @60fps
Two channels at 165MHz — 1920×1080p @60fps
Eight-lane PCIe Gen.3 interface, net 6.4GB/s total bandwidth

View Details →
