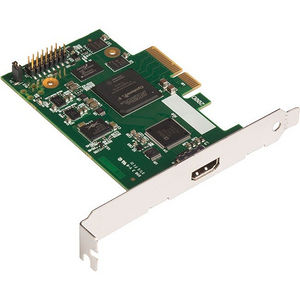

Single-Channel LiveStream Capture Card
HDMI video and audio capture for small form factor appliances used in medical environments, simulation systems, live events, PC/console capture, lecture capture and real-time streaming. The XtremeLC-HD's LiveStream:Capture architecture processes and delivers captured video in real time to a processor or graphics card, with on-board colour space conversion and scaling natively supporting 32, 24, 16 and 12-bit YUV and RGB formats.
Multiple cards can be added into a single system for multiple capture channels. Tested against Microsoft Media Encoder, VLC, Wirecast, vMix, OBS and other DirectShow-compatible applications.
| Board Format | PCIe Gen 1 x4 plug-in card |
|---|---|
| Dimensions | 103mm x 64mm (l x h) |
| Connector | HDMI |
| Pixel Rate | 297 Mpixel/s |
| Maximum Capture Resolution | 3840×2160p @30Hz |
| Transfer Rate | 800MB max DMA transfer rate |
| Audio Support | Stereo PCM via HDMI, 16-bit, 44.1/48/96kHz |
| OS Support | Windows XP through Windows 10, Linux |
| Operating Temperature | 0 to 35°C / 32 to 96°F |
| Warranty | 3 years |
Download the documentation below, or contact us for anything not yet listed.
