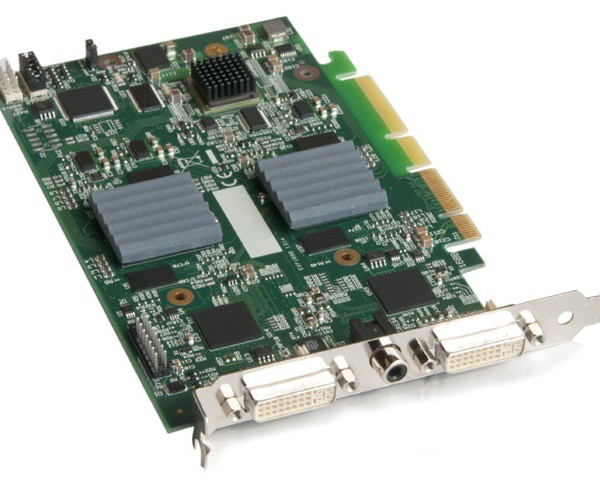

Two Channel Video Capture Card
Two channels of HD DVI video plus an extra composite video input, all operating simultaneously and independently, with full analogue and digital audio support. Both DVI HD inputs support HDMI, DVI, RGB and analogue Component (YPbPr) via a DVI-I connector, at resolutions up to 4096×4096 pixels and 1080p @60fps.
All three channels are triple-buffered into onboard storage for tear-free video, with audio selectable from an HDMI or analogue port, synchronised in software via timestamping. A flexible single-card solution for medical, lecture capture, webcasting and video conferencing applications.
| Board Format | PCIe x4 half-size plug-in card, 110mm x 170mm |
|---|---|
| Connectors | 2x DVI-I, 1x RCA (female) |
| HDMI Capture | Up to HDMI 1.3, 225MHz, deep colour, HDCP with EMS graphics cards |
| DVI Capture | DVI 1.0 RGB 24-bit up to 165MHz |
| Composite Video Capture | CCIR601 sampling, PAL/NTSC/SECAM auto-detected |
| Audio Capture | Stereo line-in/balanced, programmable gain, 16-bit @44.1/48/96kHz |
| Video Capture Memory | 256MB high-bandwidth frame buffer, triple buffered |
| OS Support | Up to Windows 10, Linux |
| Warranty | 3 years |
Download the documentation below, or contact us for anything not yet listed.
