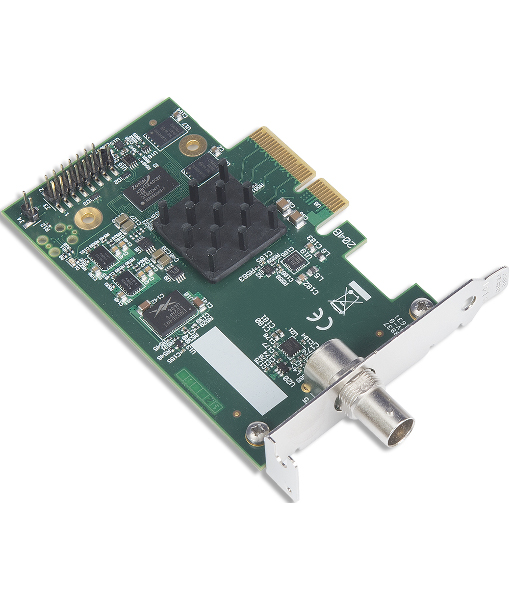

Single Channel SDI Capture Card
Discreet video capture is now the mainstay of many small form factor appliances used in markets such as lecture capture, distance learning and medical environments. The XtremeLC-SDI provides tri-band SDI capture for these applications, and its LiveStream:Capture architecture allows captured video to be processed and delivered in real time to a processor or graphics card.
The card supports on-board colour space conversion and scaling, natively handling 32, 24, 16 and 12-bit YUV and RGB formats, and is tested against Microsoft Media Encoder, VLC, Telestream Wirecast, vMix, OBS and other DirectShow-compatible software. More than one card can be fitted for multiple capture channels, though the LiveStream:Capture architecture means it isn't supported for wall controller applications relying on EMS's MultiStream technology.
| Board Format | PCIe Gen 1 x4 plug-in card |
|---|---|
| Dimensions | 103mm x 64mm (l x h) |
| Connector | SDI-BNC |
| Maximum Capture Resolution | SD / HD / 3G at 60fps |
| Transfer Rate | 800MB max DMA transfer rate |
| Colour Space Conversion | 30/24/16-bit RGB (4:4:4), 16-bit YUV (4:2:2), 12-bit YUV/NV12/YV12 (4:2:0) |
| Audio Support | Stereo PCM via SDI, 16-bit, 44.1/48/96kHz |
| Video Modes | SD-SDI, HD-SDI (up to 1080i), 3G-SDI (up to 1080p), 2K Digital Cinema |
| OS Support | Windows XP through Windows 10, Linux |
| Operating Temperature | 0 to 35°C / 32 to 96°F |
| Warranty | 3 years |
Download the documentation below, or contact us for anything not yet listed.
