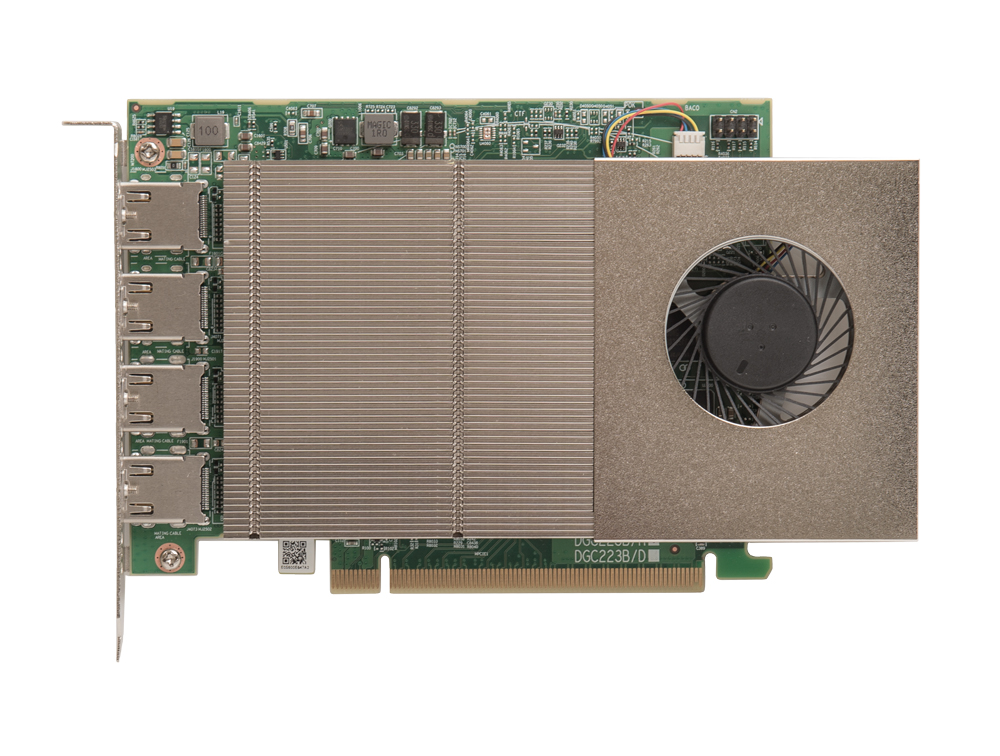

Seamless 4K/HD mixed-output graphics card
Designed to power multi-screen, video wall and LED installations, the XtremeImage-2K enables seamless mixing of 4K and HD outputs, all at 60 frames per second, over direct HDMI outputs. Fully integrated with EMS's graphical setup wizard, it's easy to configure for different combinations of monitors, projectors or LED controllers — output resolution, rotation and wall layout are configured through an intuitive graphical interface in minutes.
With outputs synchronised across all cards, multiple video walls and single screen displays can be driven from a single system, making it ideal for security suites, corporate office displays, retail signage and multi-video wall applications. Up to 8 cards can be used in a single system, giving up to 32 HD outputs, 16 4K outputs, or a mixture of the two. Fully compatible with EMS's VigiControl software for content management.
| Card Format | PCI Express x16 Mechanical, x8 Electrical (Gen. 3) |
|---|---|
| Card Size | 110mm x 177mm (incl. heat sink) |
| Maximum Output Resolution | Up to 3840×2160 @60Hz |
| Max Effective Transfer Rate | 5.5 GB/s sustained (from EMS capture cards) |
| Maximum Colour Depth | 8-bit per component |
| Maximum Cards per System | 8 cards (up to 32 HD or 16 4K outputs) |
| Graphics Card Memory | 2GB total |
| HDCP Support | 2.2 |
| Maximum Thermal Power | 35W |
| Operating Temperature | 0 to 35°C / 32 to 96°F |
| Storage Temperature | -20 to 70°C / -4 to 158°F |
| Relative Humidity | 5% to 90% non-condensing |
| MTBF | Over 80,000 hrs |
| Max Current | +3.3V: 0.6A, +12V: 4.0A |
| Operating System | Windows 10 LTSC, Windows Server 2019 |
| Order Code | XtremeImage-2K |
| Warranty | 3 years (5-year extended available) |
Download the documentation below, or contact us for anything not yet listed.
