9-display 4K2K standalone controller

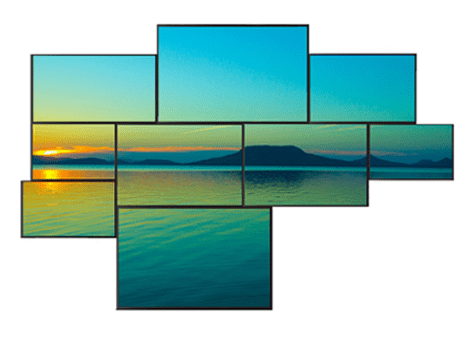

The EMS iVu9s-Pro 9-Display 4K2K Video Wall Controller is a powerful, cost-effective, fully real-time data/video processor for multiple flat panel displays or projectors — ideal for medical image review, satellite imagery and digital signage display solutions. It can support up to 12 DVI/HDMI outputs to expand the spectrum of video wall applications; with its add-on card design, users can adjust the number of output ports for different scenarios, or cost-down/enhance the project with new I/O cards over time.
The embedded scaler converts signals from two input sources to match the native resolution of monitors, flat panels or projectors, with user-selectable output up to WUXGA (1920×1200). Each DVI output has an independently controllable display area, with image parameters and layouts automatically saved to non-volatile flash memory for later recall. Control is via RS-232 serial or Ethernet, with 7 default layouts plus one custom mode, input rotation (±90°), bezel mask/screen border adjustment for seamless multi-display alignment, and firmware upgradeable for new features.

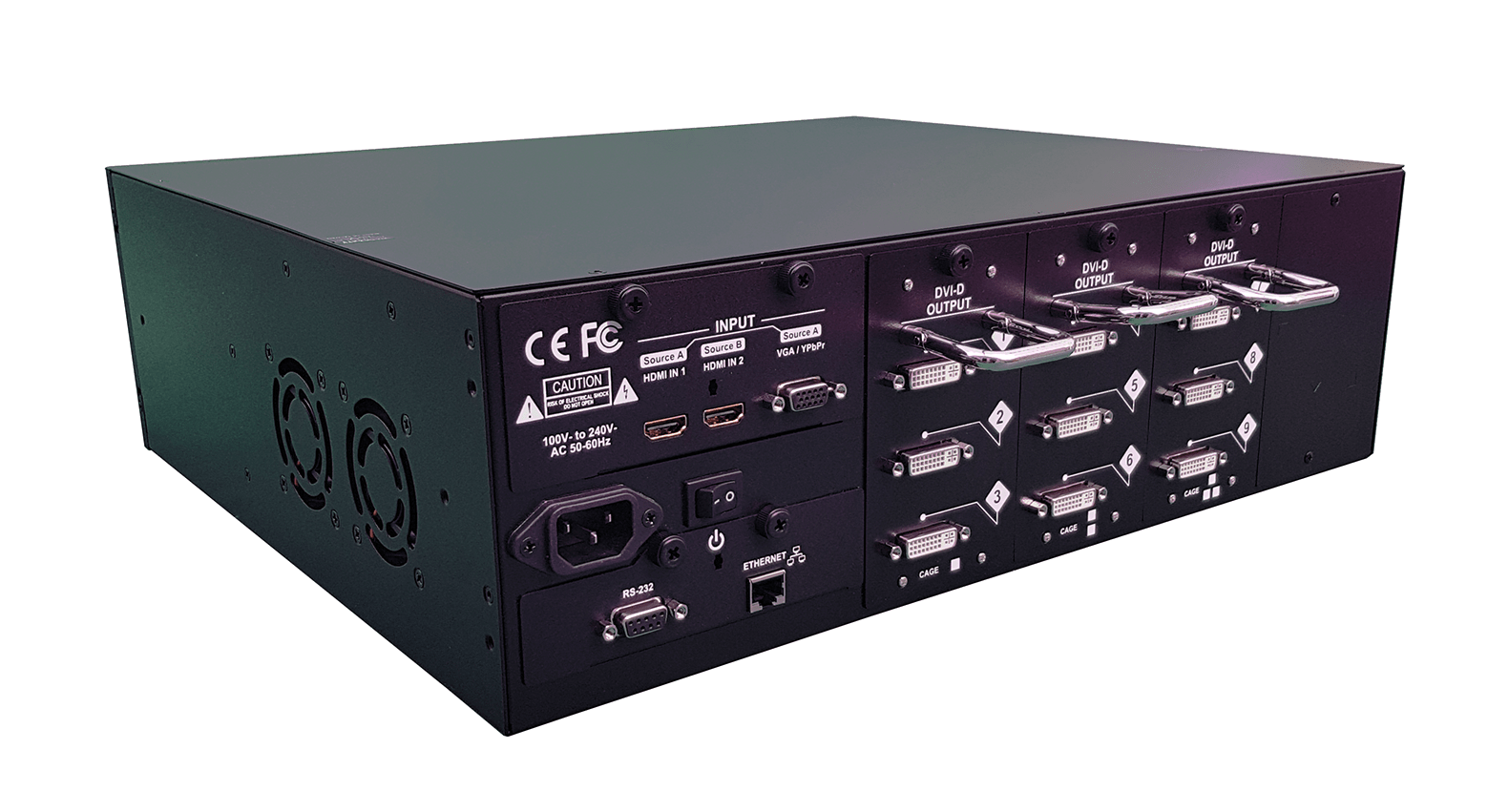

| Outputs | 9x DVI (12 on the expanded unit — contact sales), 640×480 to 1920×1200, local loop-out |
|---|---|
| Inputs | 1x HDMI up to 4K2K, others up to 1080p/WUXGA — DVI/HDMI, VGA, Component 640×480–1920×1200 |
| Display Modes | PIP, side-by-side (PAP), full screen, 7 default layouts + 1 custom |
| Video De-interlacer | Advanced, improves 480i/576i SD input |
| Control | RS-232 serial or Ethernet (device IP) |
| HDCP | Compliant |
| Form Factor | 2.5 RU, PCIe-interface add-on card design |
We're still migrating this product's datasheet across from the legacy site — contact us and we'll send it directly.
